Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 20" -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Ten frame w/ Cr-Mo TT/DT/ST, 20.5"" TT, Euro BB, tig welded, formed DT/TT, externally relieved HT w/ stamped ""S"" logo, wrap gusset BB yoke, seat-stay mounted U-brake bosses, integrated seat collar, 6mm dropouts for 14mm axle
Suspension Fork
Specialized 1.6mm Hi-Ten 1-1/4"" blades, 1-1/8"" threadless, 2mm thick Hi-Ten steerer, 6mm dropouts for 14mm axle
Drivetrain
Cassette
Odyssey 1/2"" x 1/8"" x 13t for M30 thread
Crank
Tig welded Tubular Cr-Mo for 8 spline, 175mm length
Bottom Bracket
Euro BB, steel threaded cup, 2x sealed cartridge bearing w/ 19mm 8 spline Cr-Mo BB spindle
Chain
KMC Z-510, 1/2"" x 1/8""
Pedals
Specialized low profile, 9/16"", sealed cartridge bearing, alloy platform, removable pins
Wheels
Front Hub
Fuse, 36h, sealed mech. mid flange, solid 14mm Cr-Mo axle
Rear Hub
Fuse, 36h, sealed mech. mid flange, 14mm solid axle
Rims
Fuse Double, double wall w/ eyelets
Spokes
2mm (14g) stainless
Tires
Specialized Rhythm Lite Sport, 20 x 2.1"", 30TPI, wire bead
Brakes
Brakes
Tektro FX-330, linear spring, 15mm offset arms w/ grey soft compound pads
Brake Levers
Tektro SBL-89, alloy two finger, 16mm cable pull
Cockpit
Stem
Fuse forged alloy, 50mm extension, 1 1/8"" A-Head
Handlebar
Hi-Ten 2pc. 675mm wide, 205mm rise, 12 degree back, 3 degree up sweep
Grips
Fuse File, Kraton w/ flange
Headset
1-1/8"" threadless
Seat
Saddle
Fuse Jump, 8mm rail, PVC bumpers front and rear
Seatpost
Alloy, 2 bolt, no offset, 25.4mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 20.5" | 19" | 20" | 21" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 238 mm | 279 mm | 279 mm | 283 mm | 279 mm |
| Rake | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Seat Tube Angle | 70 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 207 mm | 242 mm | 238 mm | 255 mm | 239 mm |
| Head Tube Angle | 73 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 293 mm | 343 mm | 341 mm | 346 mm | 341 mm |
| Standover Height | 468 mm | 567 mm | 555 mm | 564 mm | 554 mm |
| Wheels | 20" | 20" | 20" | 20" | 20" |
Model Overview

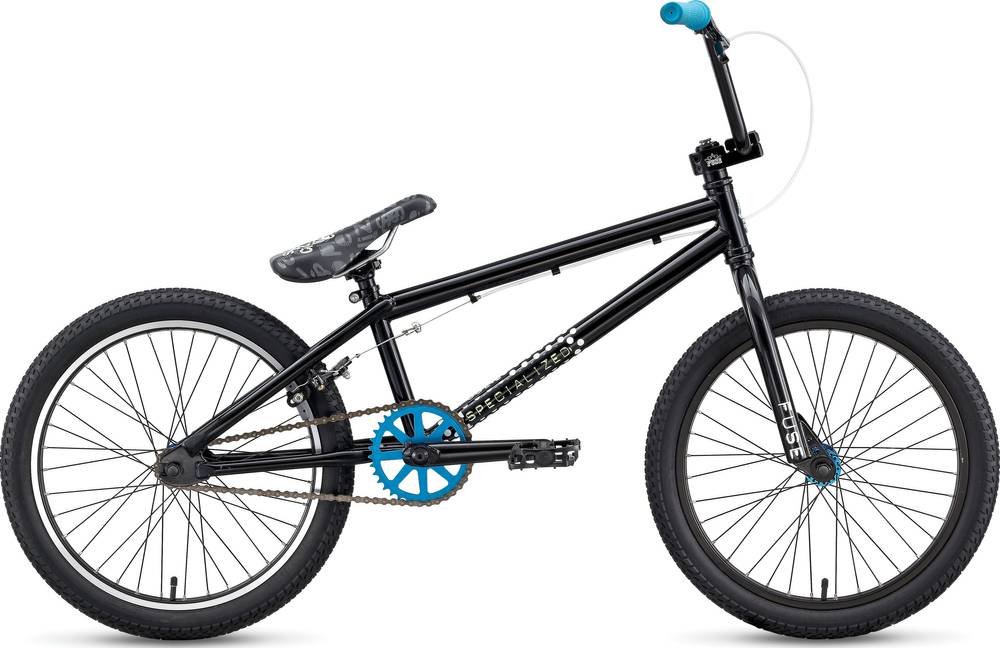

Fuse 2 completes the Specialized Fuse model. There are 38 bikes that carry this model name. You can easily view all of the Specialized Fuse bikes models from 2010, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
BMX bikes average price
According to our calculations, the average cost of a BMX bike that is reliable is 348$. However, even if your budget is less than the average, you might still be able to get a top-quality BMX bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Fuse 2 components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The wheels on Fuse 2 are the 20″ aluminum type. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuse 2 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
