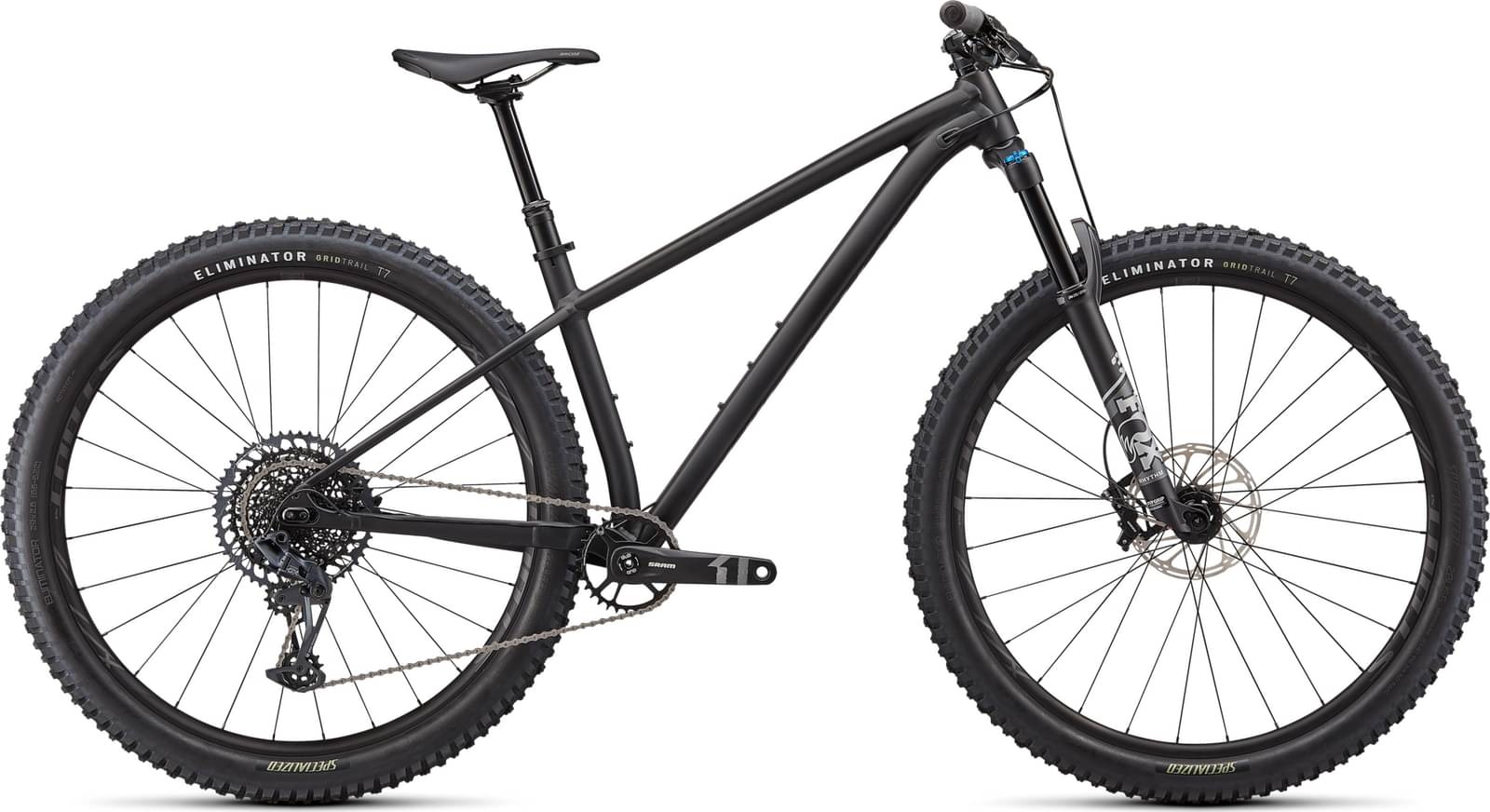

Specialized Fuse Expert 29 2022
2022 Mountain
Estimate price |
2,900$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Fork Fox Rhythm Float 34
-
Groupset GX Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
Suspension Fork
FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 130mm of travel
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG-1275, 12-speed, 10-52t
Crank
SRAM, X1 Alloy Eagle, 12-speed, 32T
Bottom Bracket
SRAM DUB, BSA 73mm, threaded
Chain
SRAM, NX Eagle, 12-speed
Wheels
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Rims
Specialized Alloy, Tubeless Ready, 29mm internal width, 28h
Spokes
Stainless, 14g
Tires
Front: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
Brakes
Brakes
SRAM G2, 4-piston, 200/180mm
Cockpit
Stem
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Handlebar
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
TranzX Dropper, 34.9mm, XS-S: 100mm, M: 125mm, L-XL: 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.5 mm | 1.43 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 698 mm | 718 mm | 738 mm | 764 mm | 790 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Stack | 616 mm | 616 mm | 616 mm | 630 mm | 643 mm |
| Reach | 391 mm | 411 mm | 431 mm | 451 mm | 471 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 634 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 340 mm | 375 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 1113 mm | 1133 mm | 1153 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 718 mm | 738 mm | 741 mm | 745 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Fuse Expert 29 is part of the Specialized Fuse model. Specialized launched 38 bikes of this model so far. Take a sneak peek at all Specialized Fuse bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Specialized Fuse Sport 27.5 2022 has a starting price of 1592$. Specialized Fuse Expert 29 2022 on the other hand is the most expensive at 2900$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 2900$. If we compare this with the average Trail bike cost we notice that the price is 5% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fuse Expert 29 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Fuse Expert 29 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Fuse Expert 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Fuse Expert 29 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
