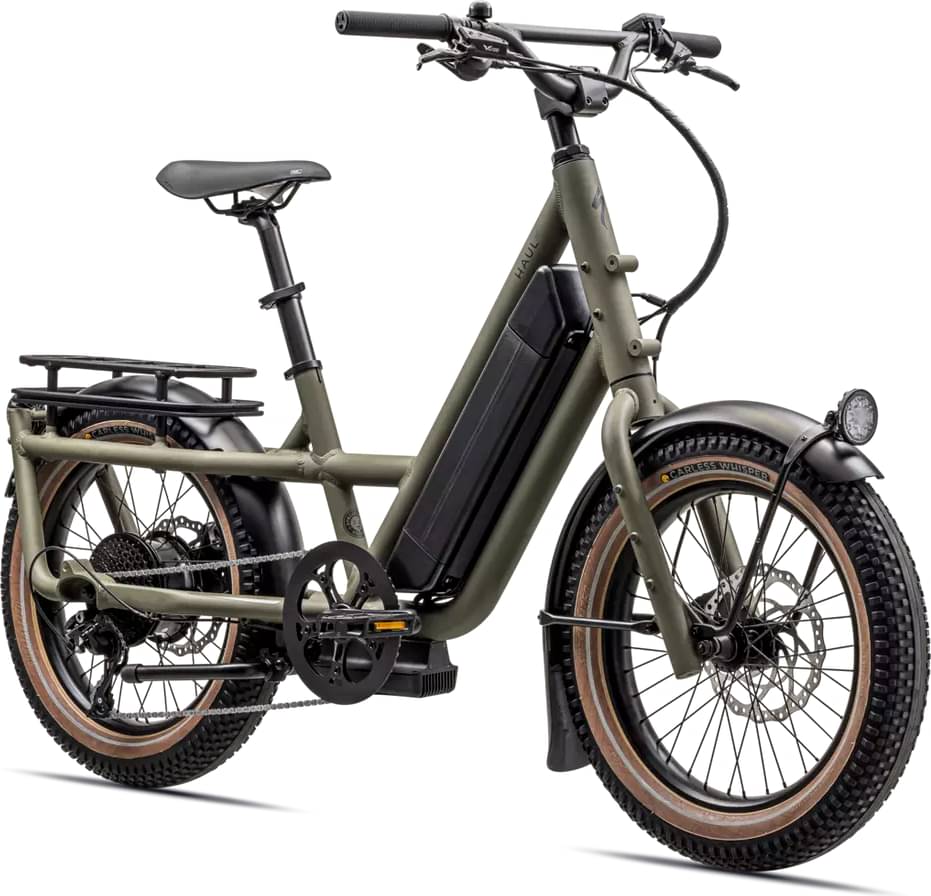

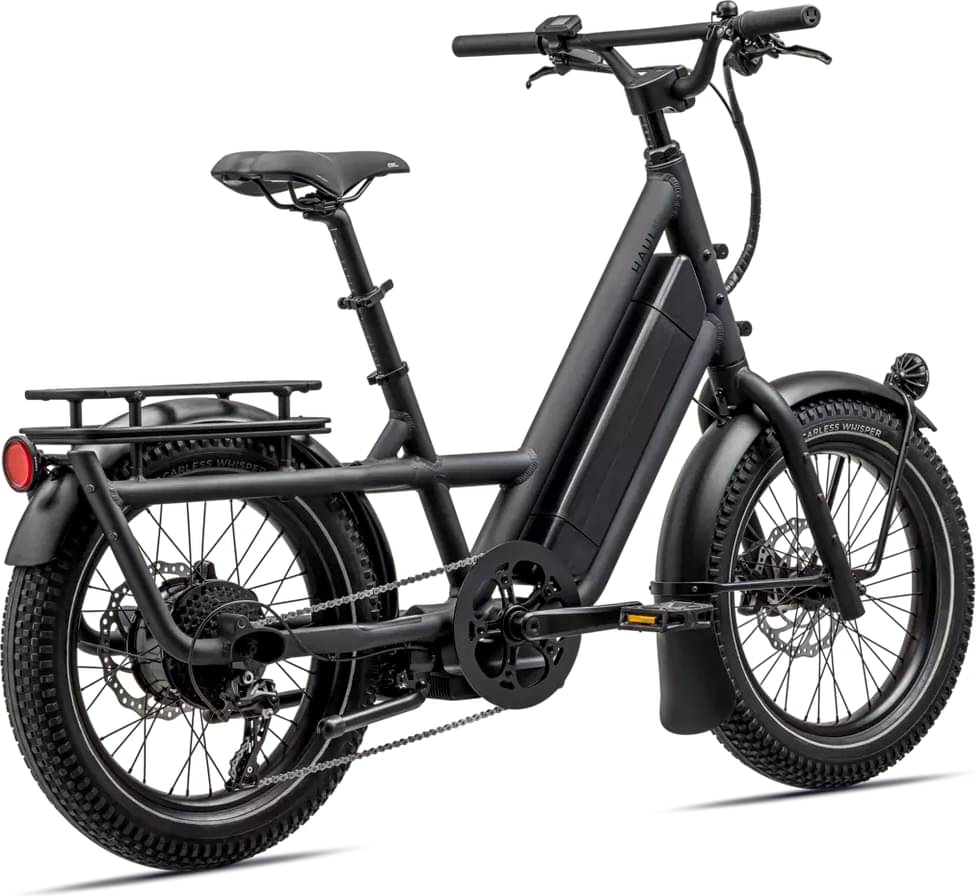

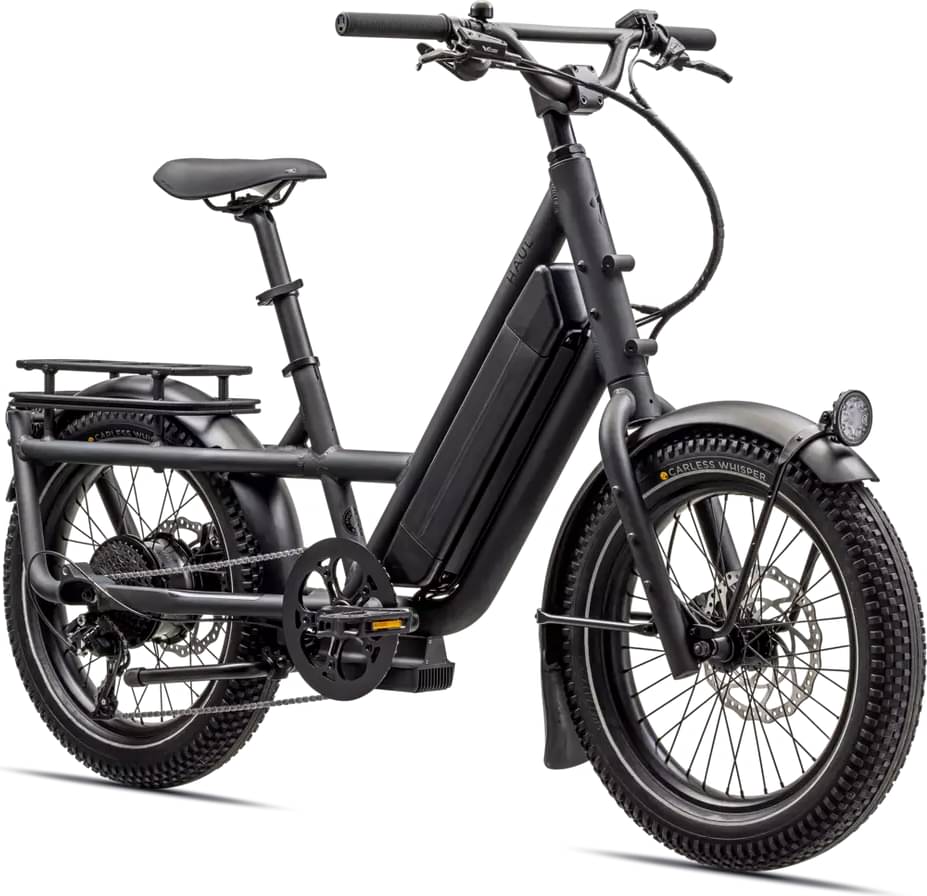

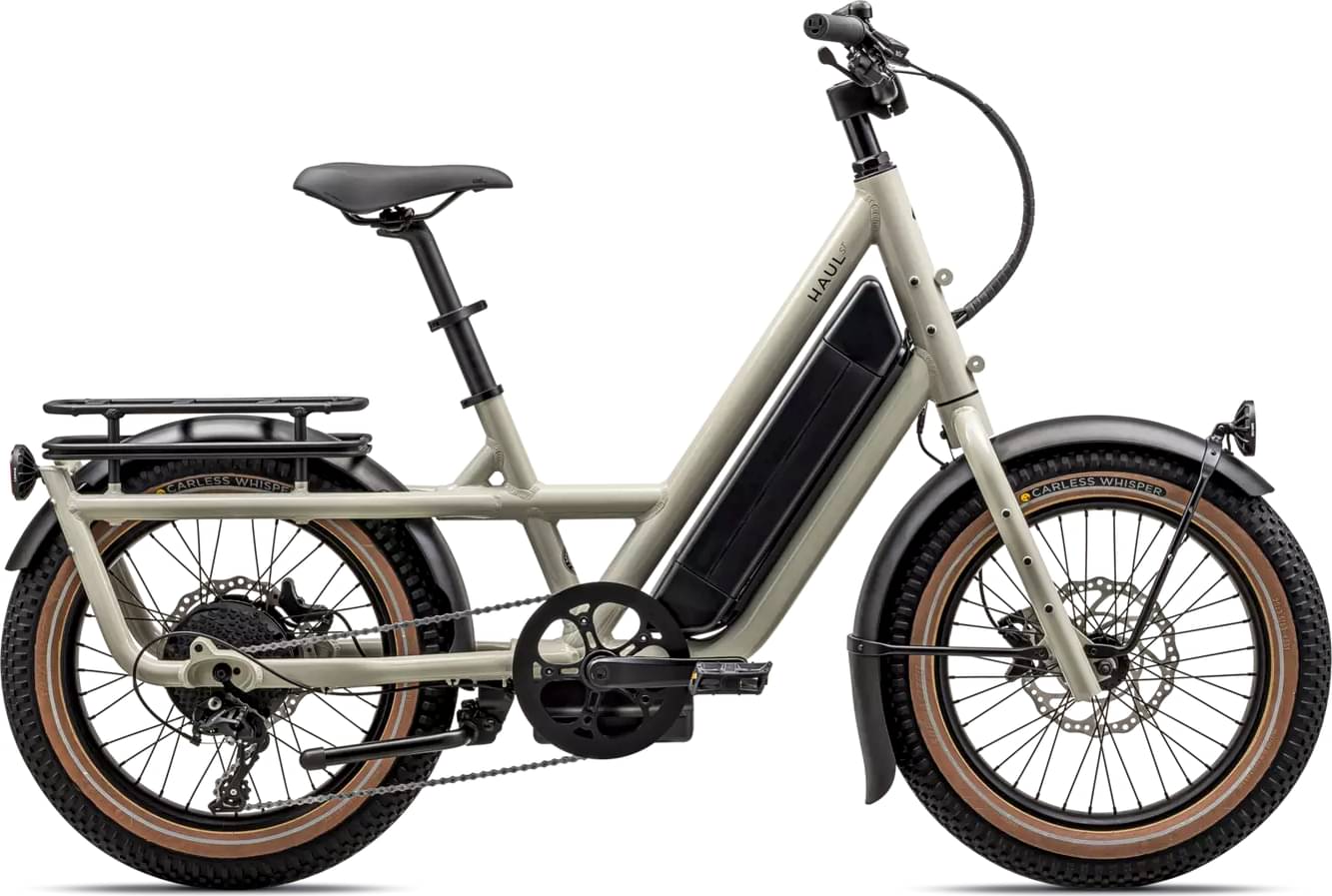

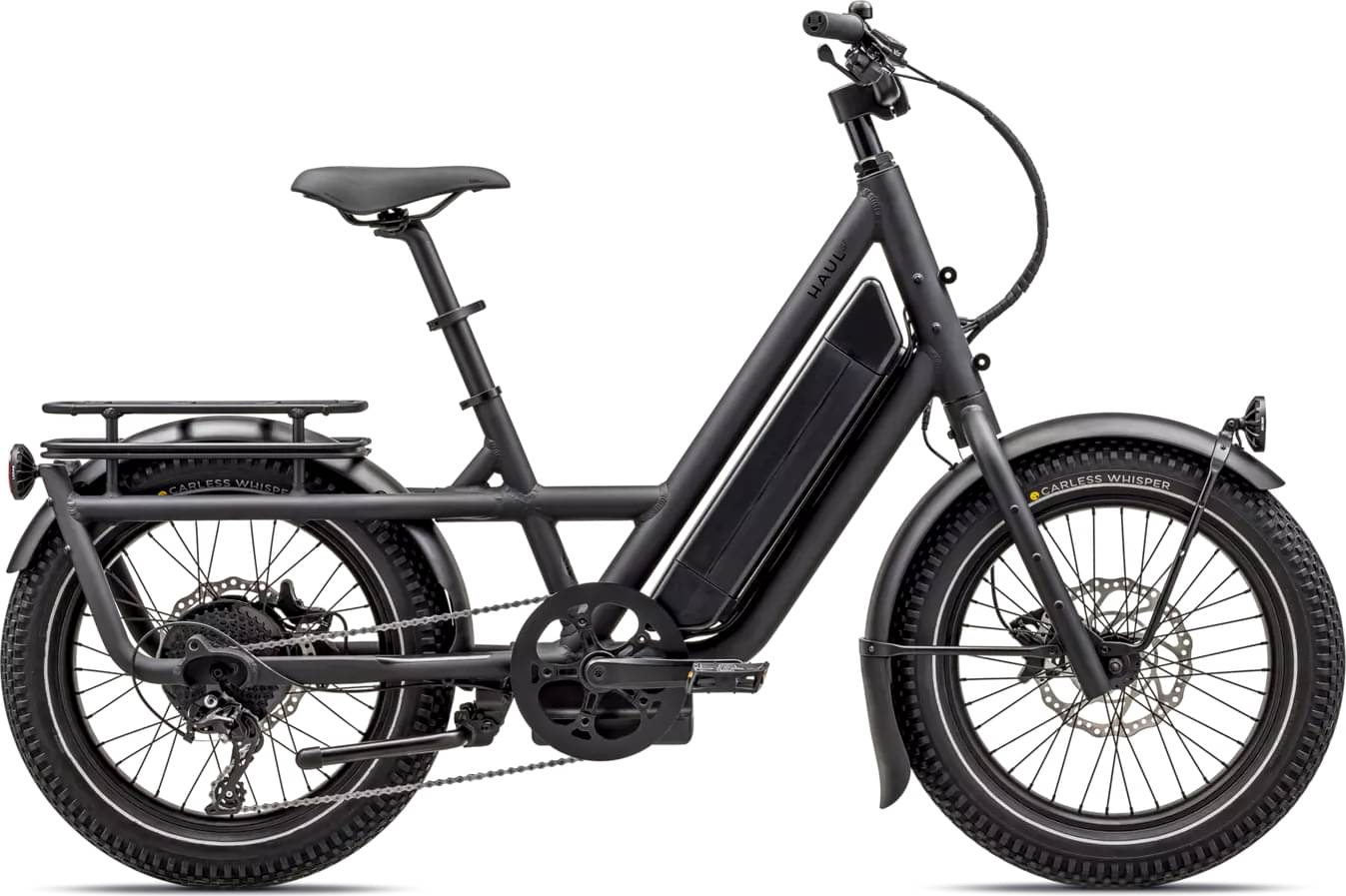

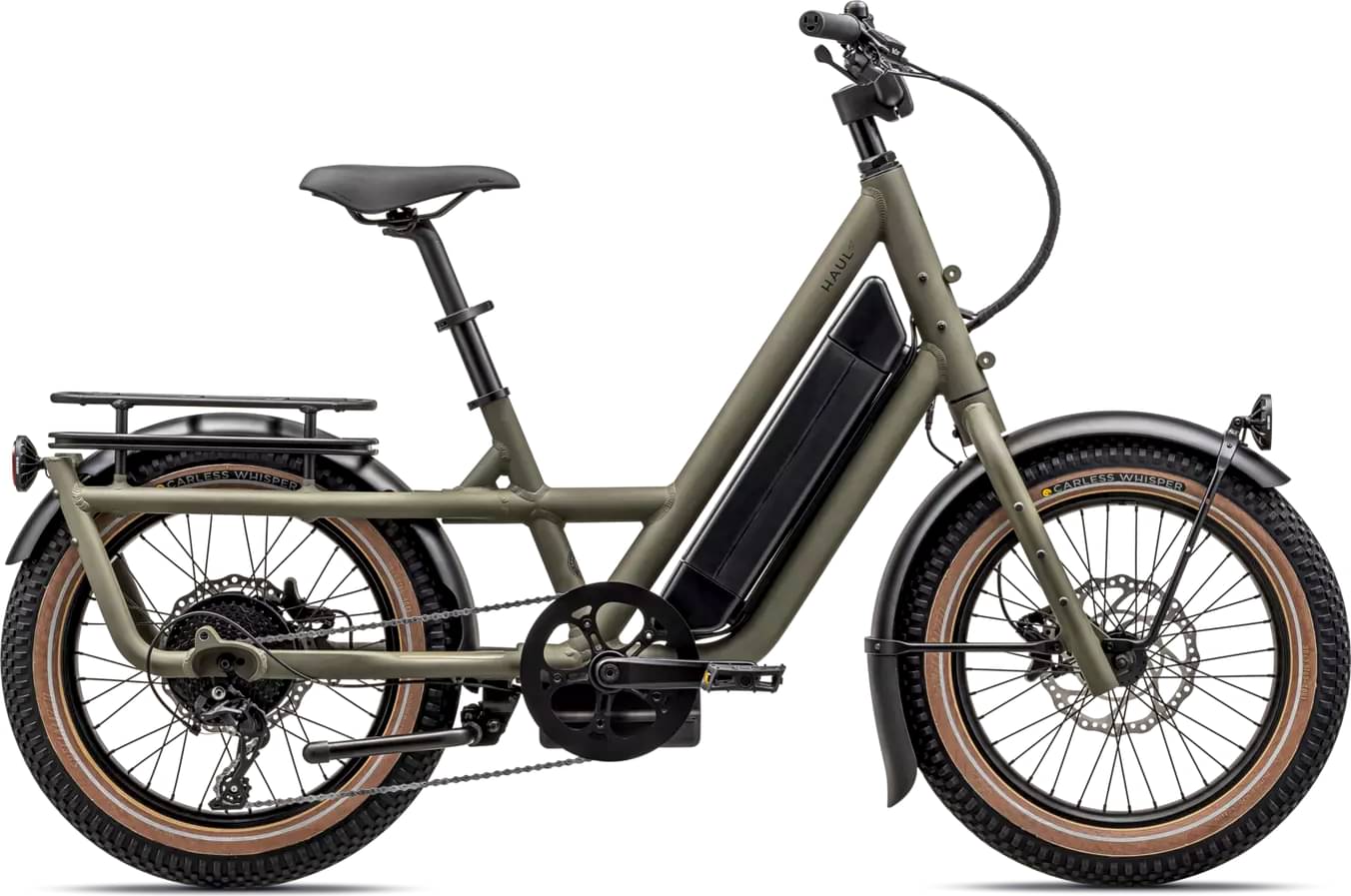

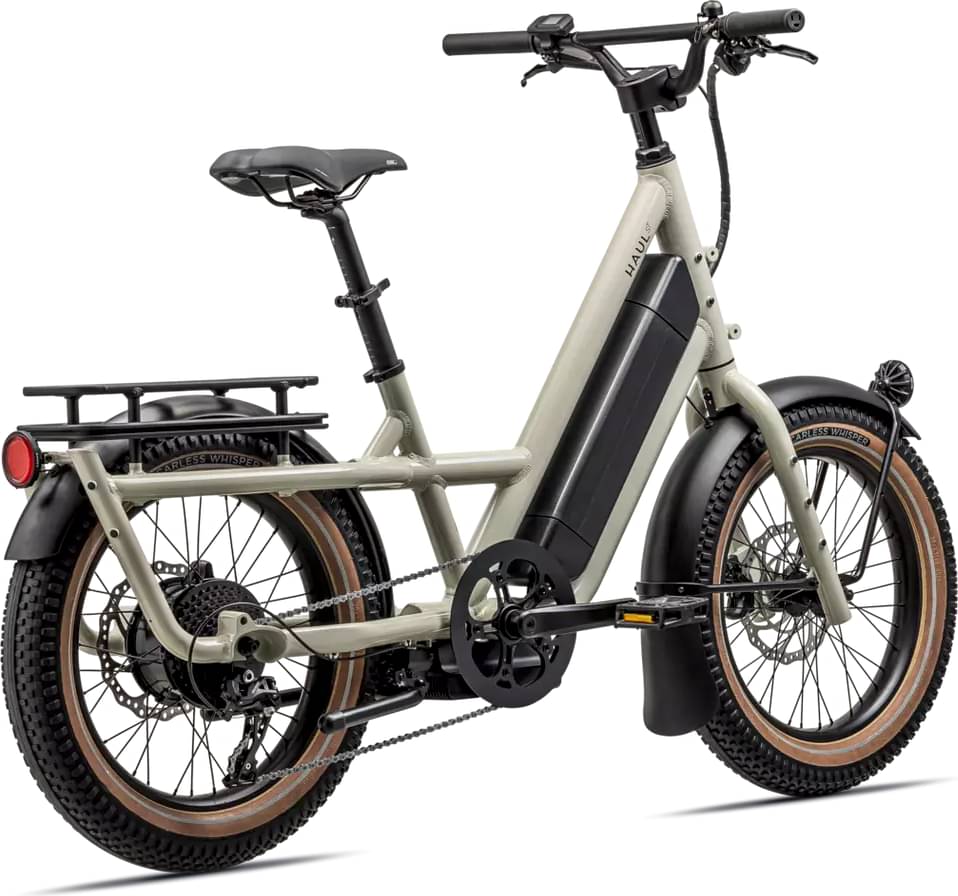

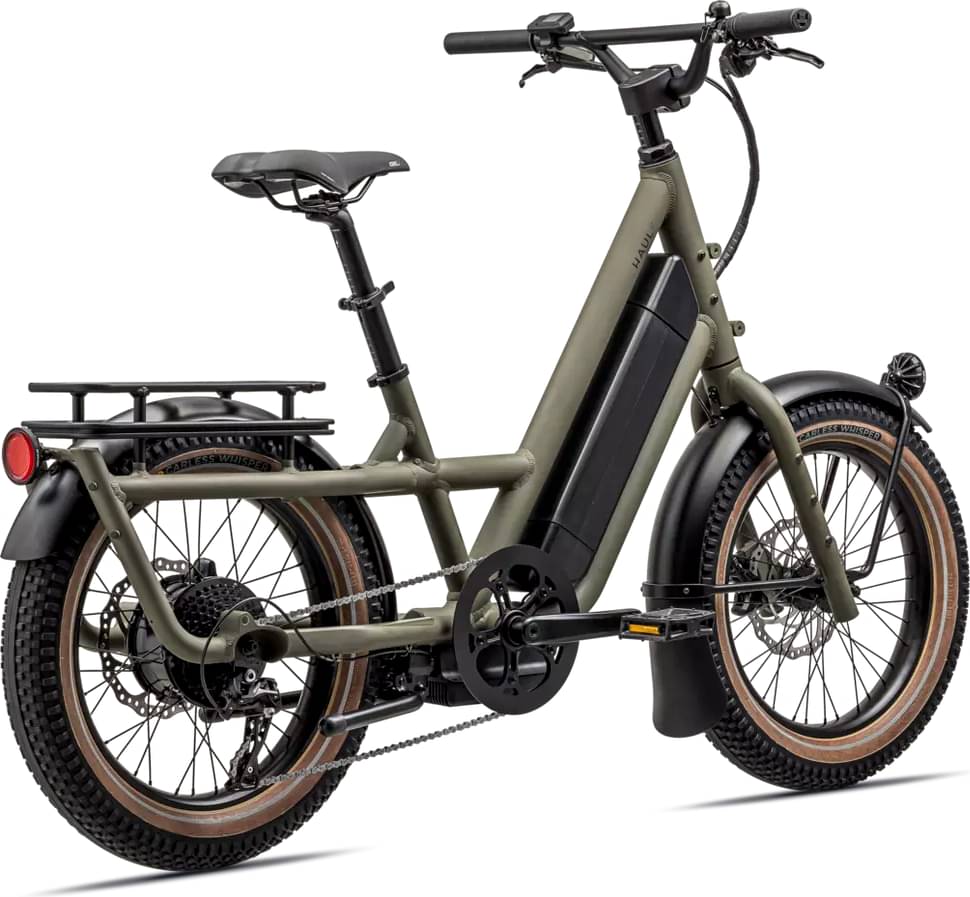

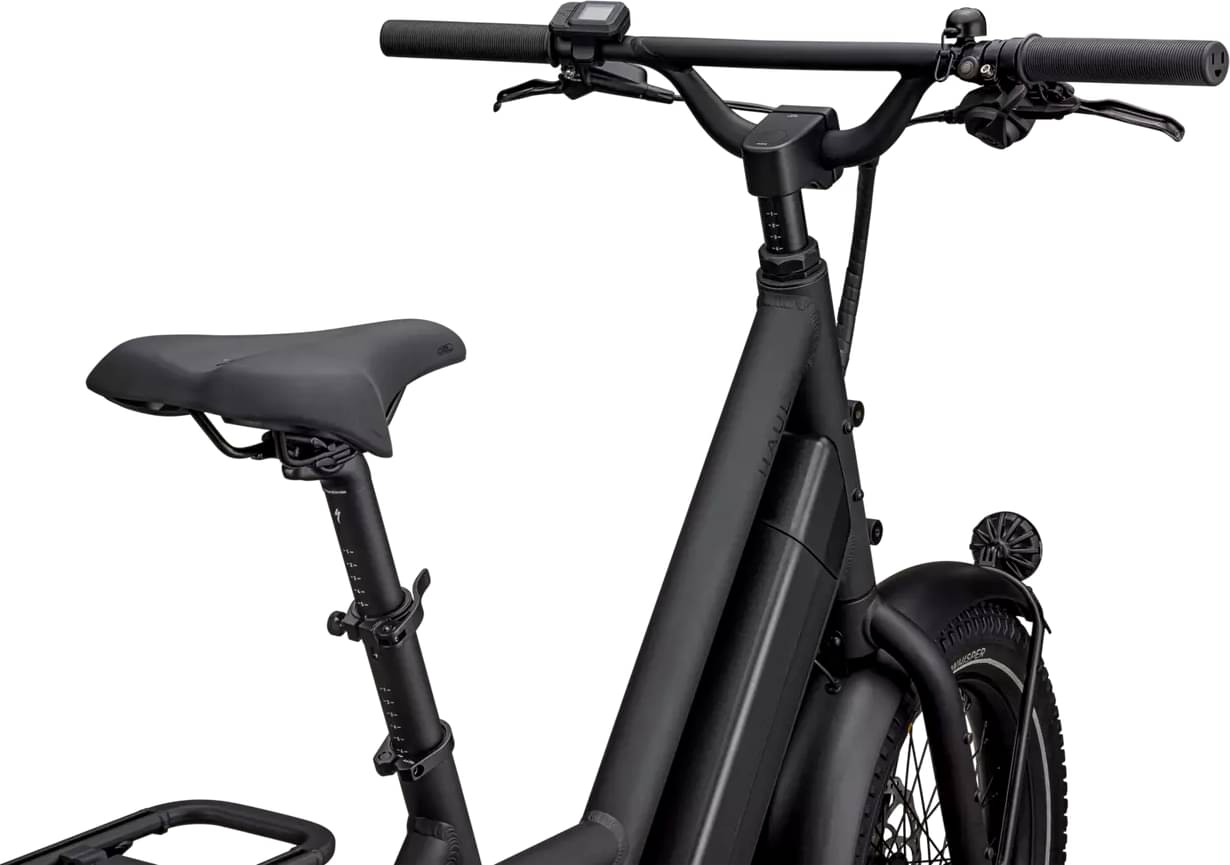

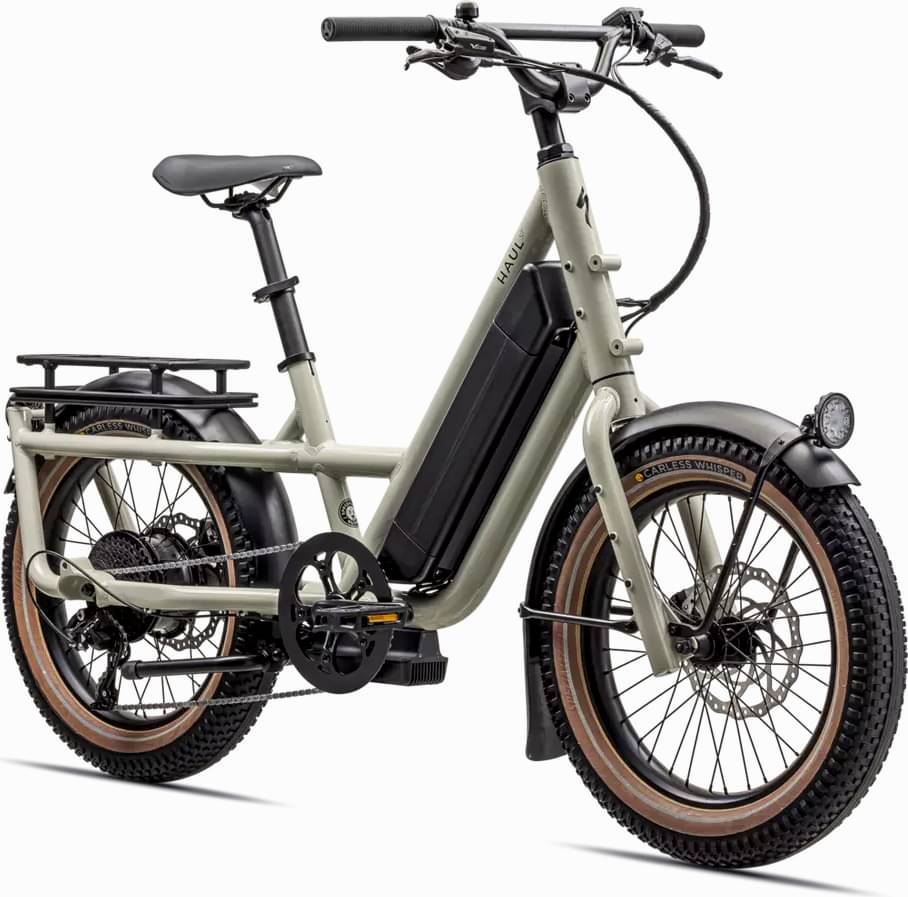

Specialized Haul ST 2024
2024 E-bike
Estimate price |
2,800$
Weight | 35 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset microSHIFT, microSHIFT Advent -
Suspension Rigid -
Motor hub-drive -
Battery Globe external battery, 772Wh, UL 2271 certified, IPX7 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

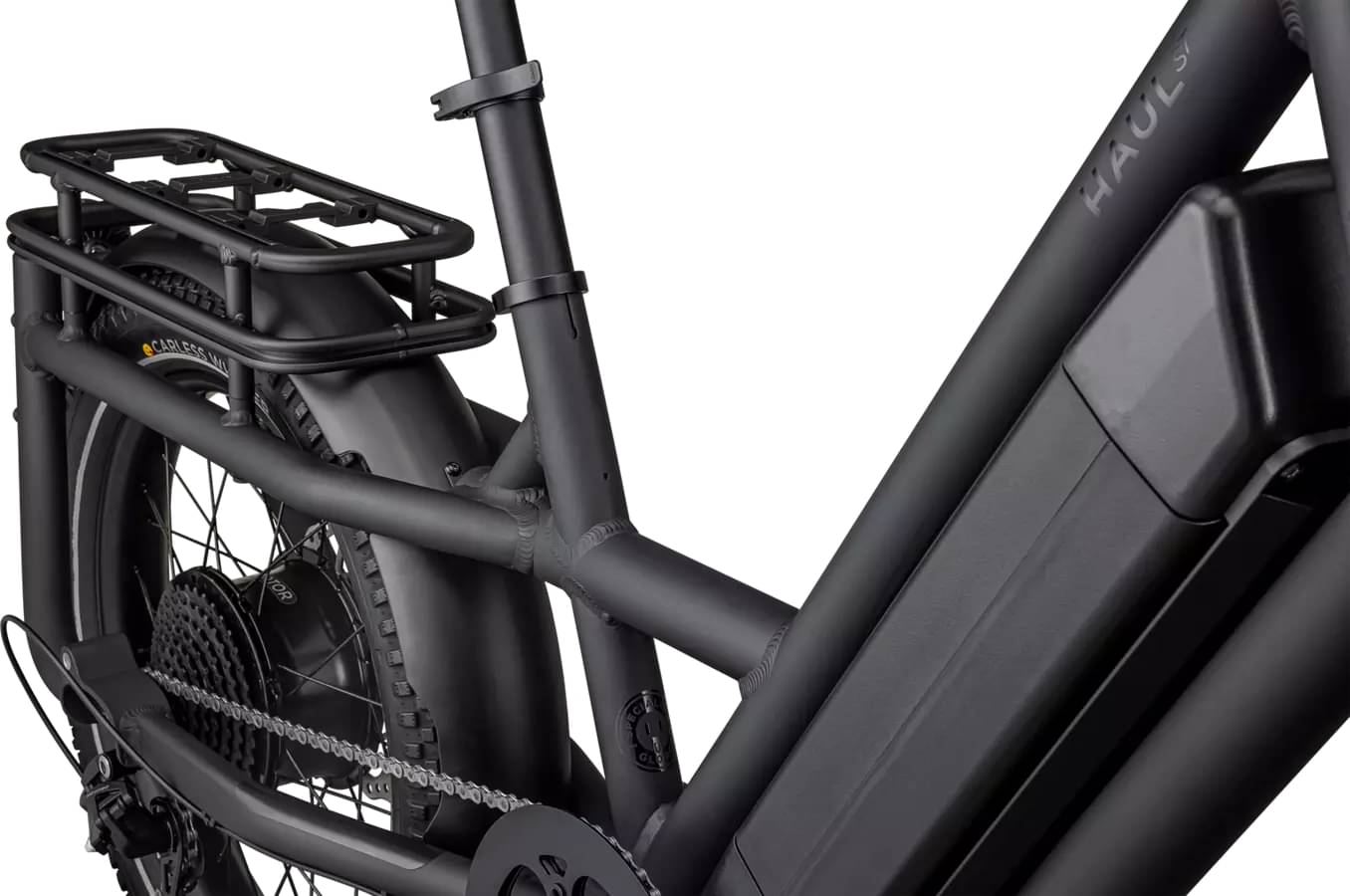

Frame
Frame

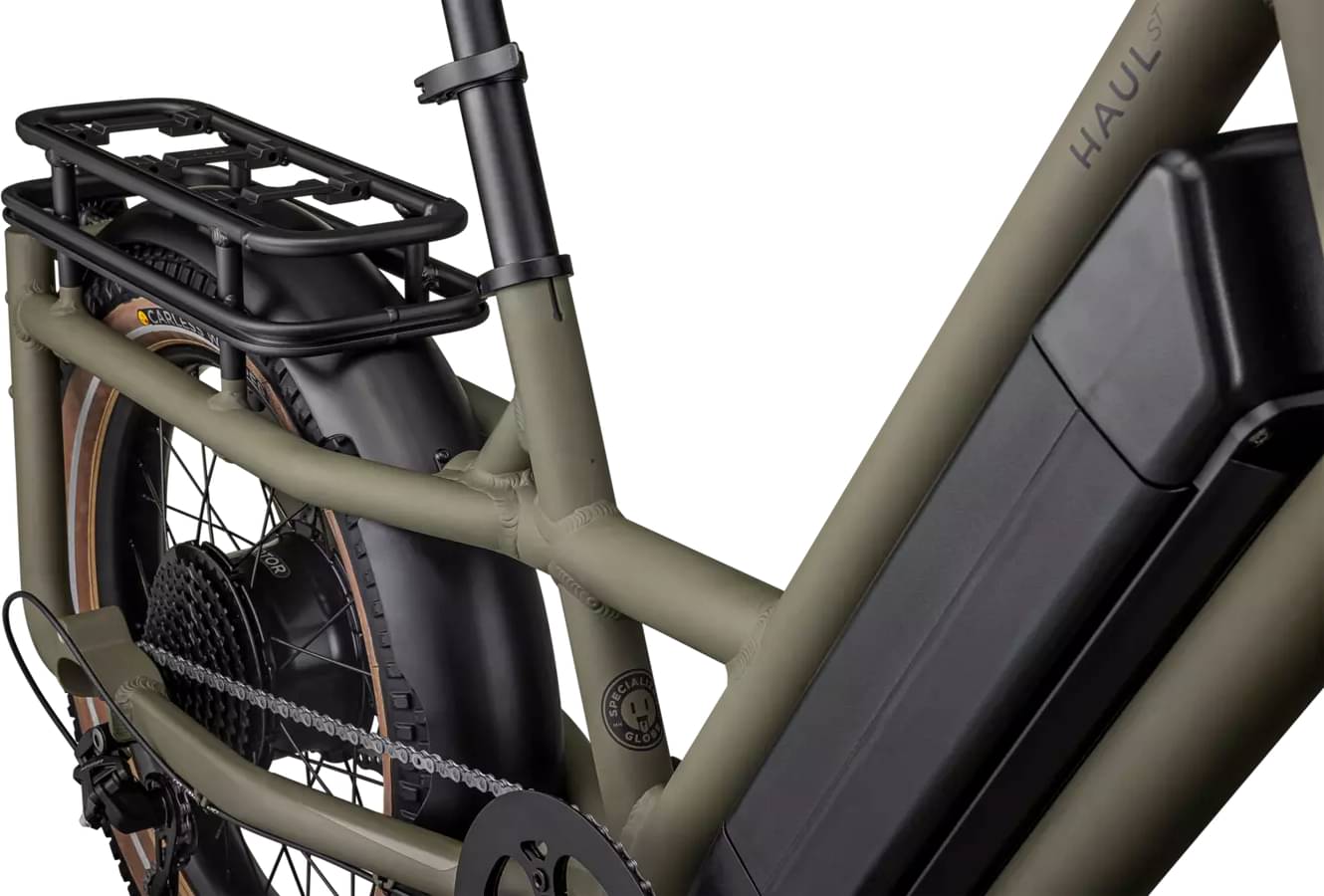

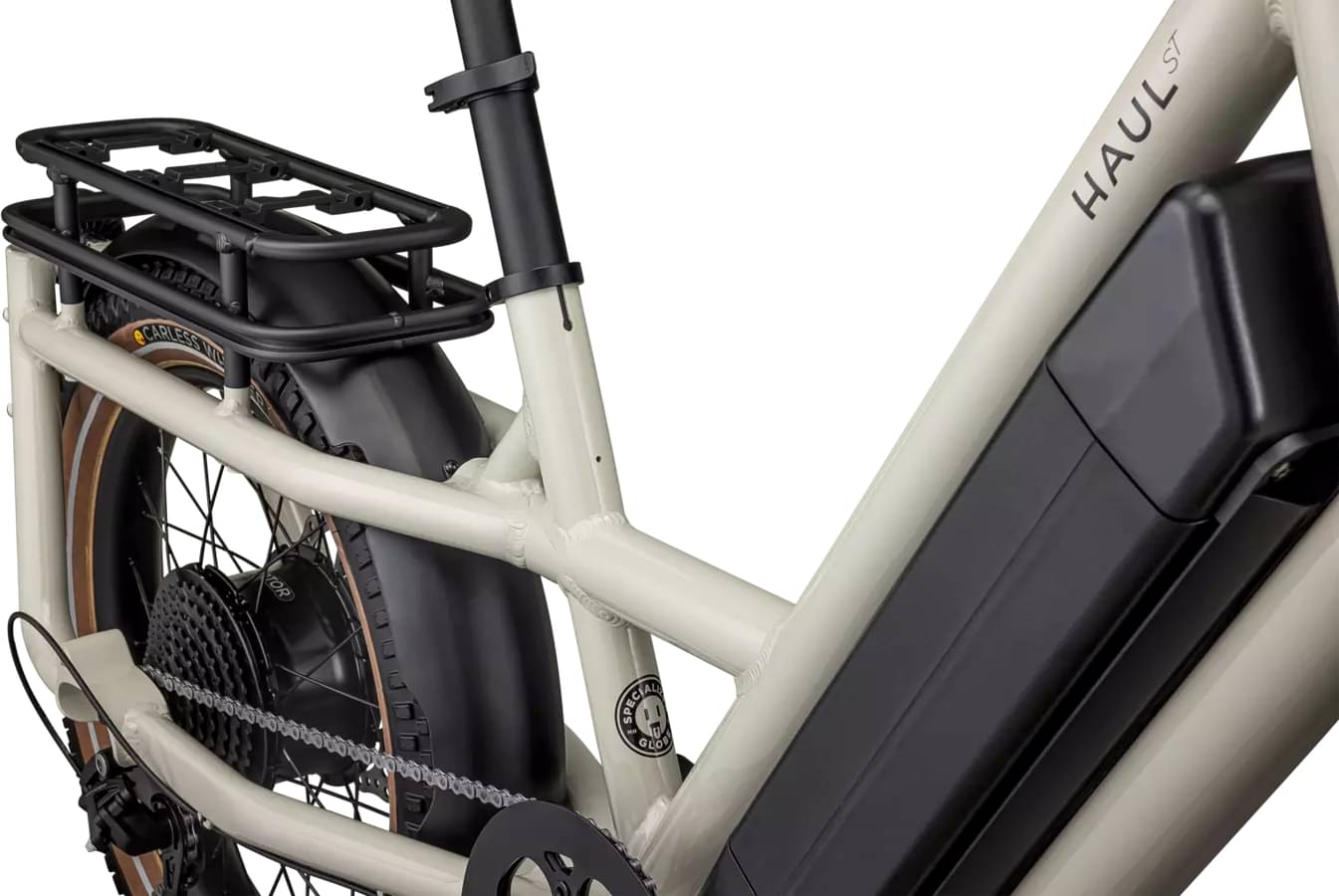

Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts
Suspension Fork
Globe Steel, Post mount disc brake, fender/rack mounts
Drivetrain
Rear Derailleur
microSHIFT, short cage, 9-speed
Shift Levers
microSHIFT Advent, 9-speed
Cassette
SunRace, 9-Speed, 11-36t
Crank
Forged alloy arm, alloy chainring guard, 160mm, 50T
Bottom Bracket
Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor
Chain
KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™
Pedals
Specialized Flat pedal
Wheels
Front Hub
Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h
Rims
20'', double-wall alloy, 50X20mm, 36h
Spokes
Stainless, 13g/2.3mm
Tires
Front: Carless Whisper Reflect, 20X3.5, Rear: Carless Whisper Reflect, 20X3.5
Brakes
Brakes
Front: Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor, Rear: Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor

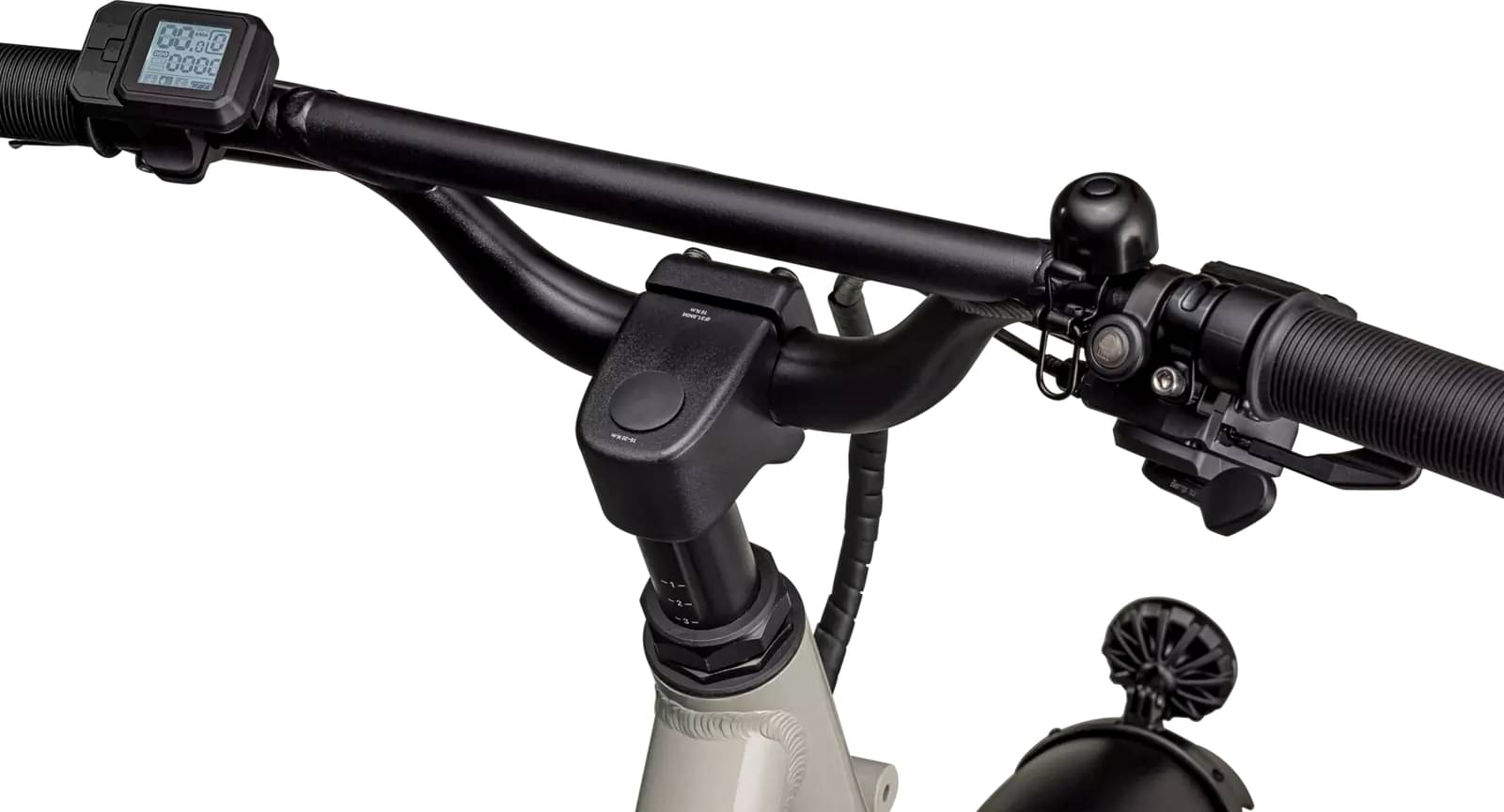

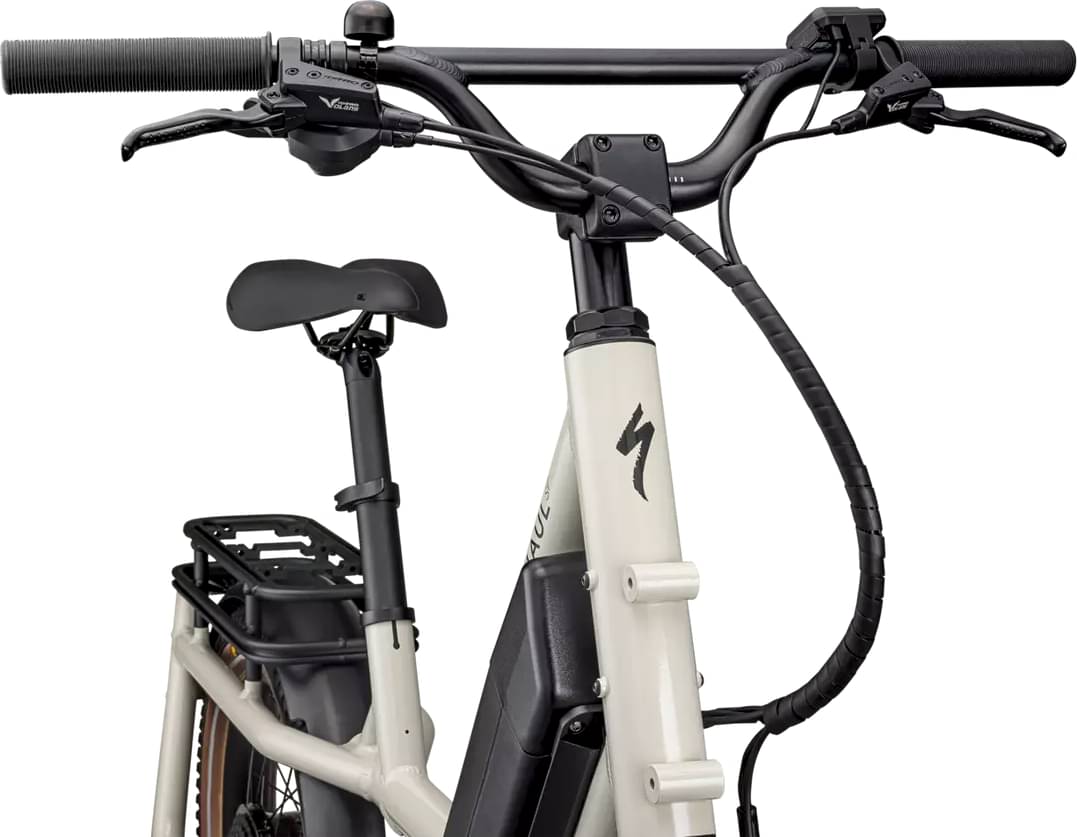

Cockpit
Stem
Globe, cargo 1.5X150mm quill stem
Handlebar

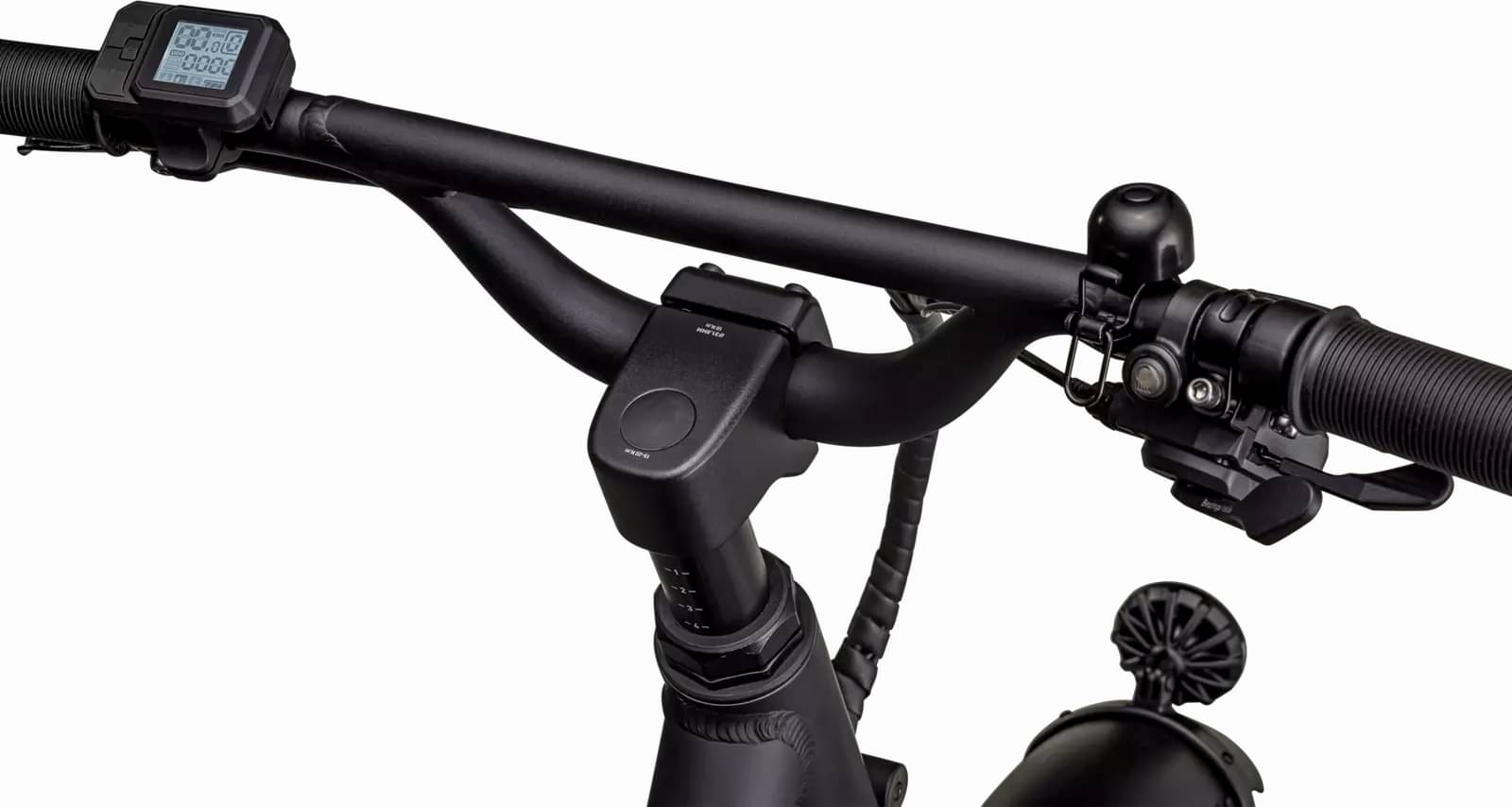

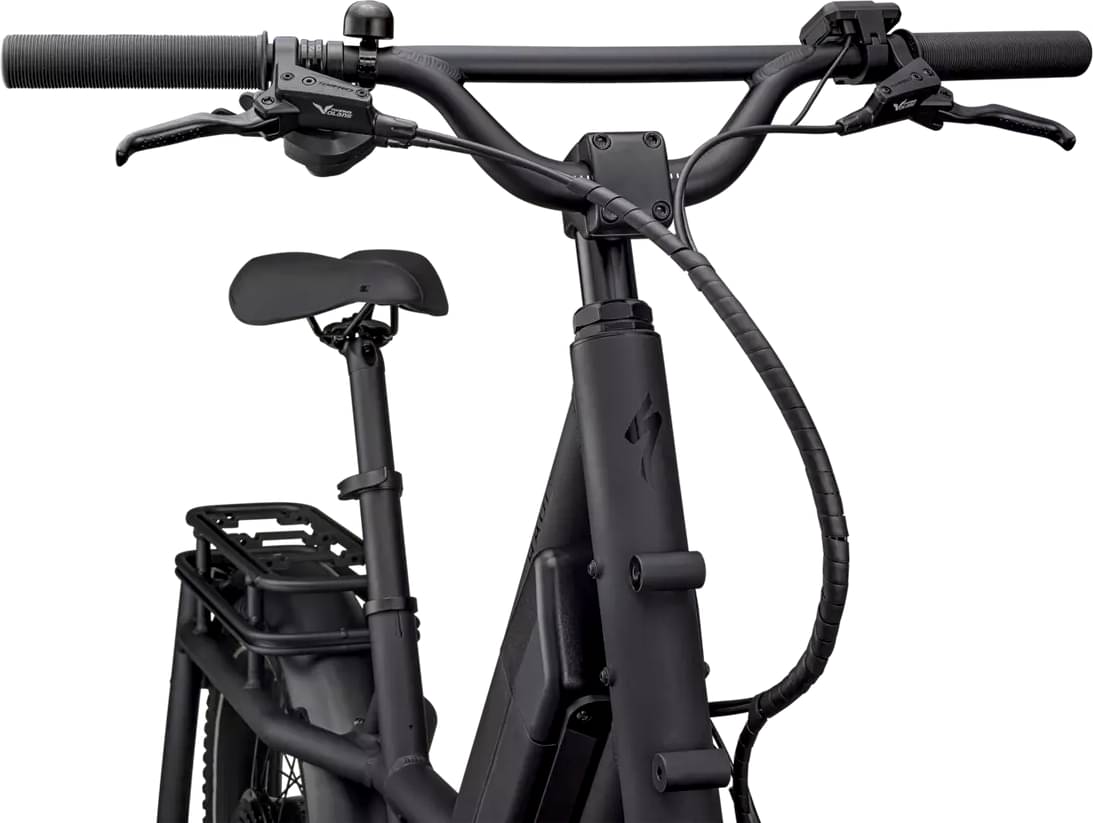

Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width
Grips
Globe closed end slip on type, 155mm

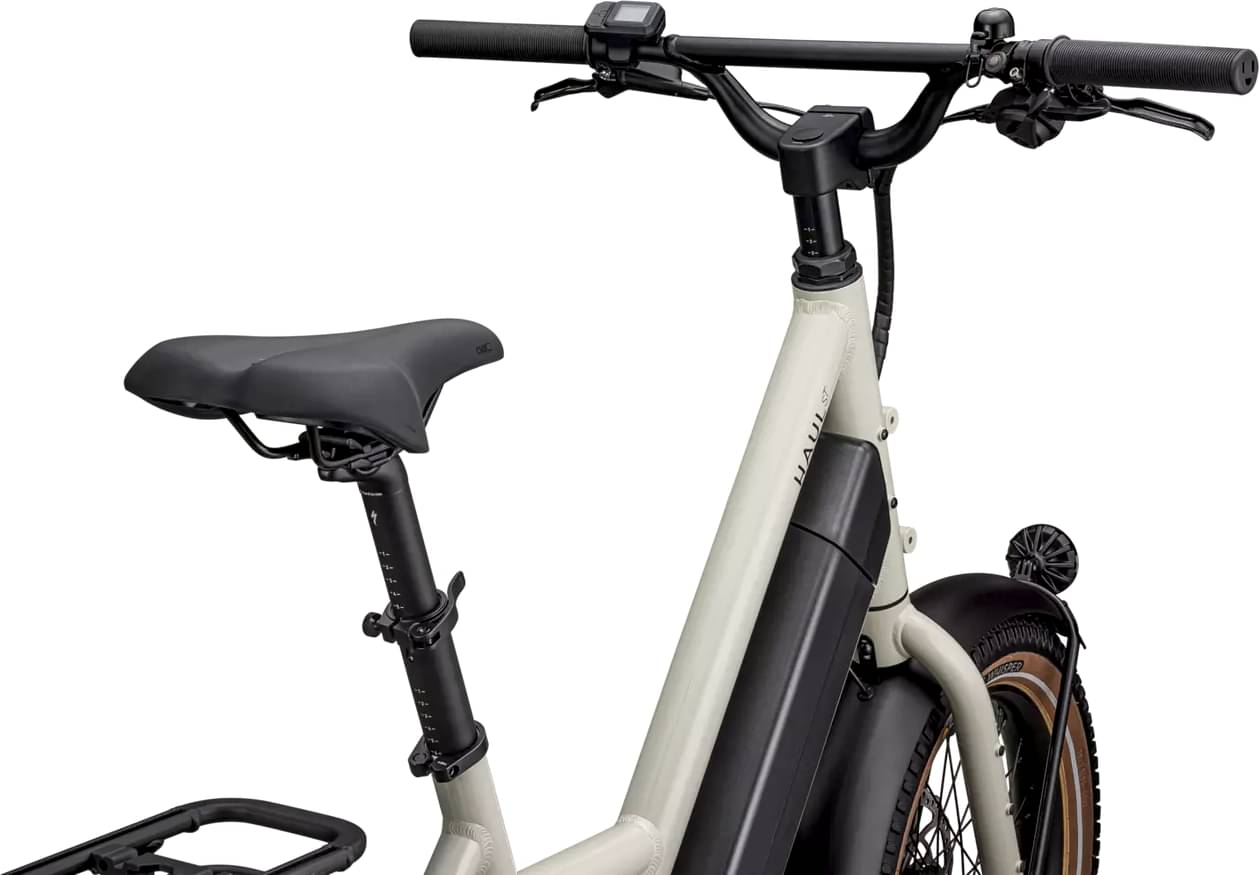

Seat
Saddle

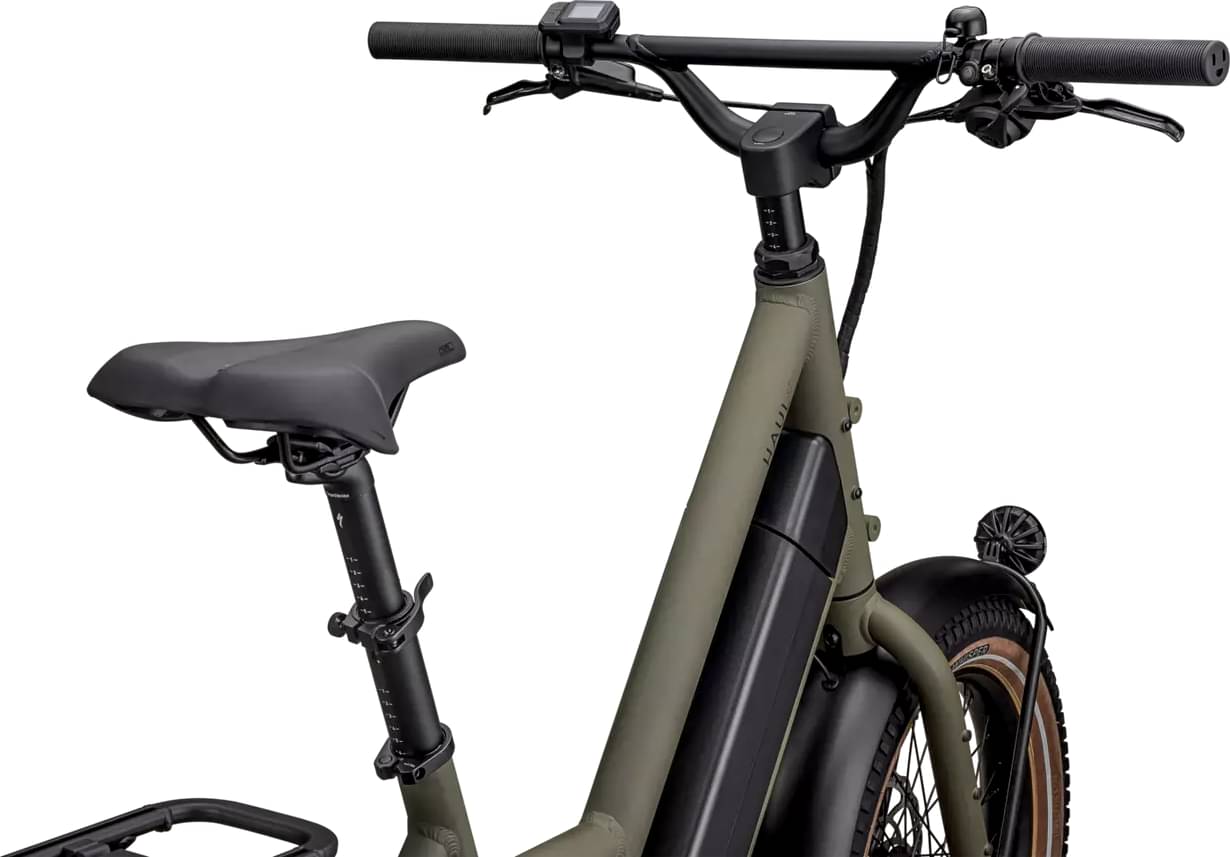

Specialized Body Geometry Comfort Gel
Seatpost
Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm
Motor & Battery
Motor
Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h
Battery
Globe external battery, 772Wh, UL 2271 certified, IPX7
Charger
Globe charger, 48V System w/ Globe system charger plug, AC power cord included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | HAUL ST |
|---|---|
| Stack Reach Ratio | 1.768 mm |
| Bottom Bracket Height | 285 mm |
| Front Center | 624 mm |
| Rake | 55 mm |
| Trail | 47 mm |
| Stack | 610 mm |
| Reach | 345 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 68 ° |
| Seat Tube Length | 366 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 292 mm |
| Chainstay Length | 465 mm |
| Wheelbase | 1089 mm |
| Bottom Bracket Drop | 5 mm |
| Standover Height | 511 mm |
| Wheels | 20" |
| Rider Min Height | 120 cm |
About this model
Haul ST completes the Specialized E Haul model. There are 4 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Specialized Haul ST 2024 has a starting price of 2800$. Specialized Haul LT 2024 on the other hand is the most expensive at 3500$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Utility e-bikes average price
According to our calculations, the average cost of an Utility e-bike that is reliable is 3636$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Utility e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2800$. Doing a quick comparison, we notice that Haul ST price is 29.86% lower than the average cost of an Utility e-bike.
Average weight for Utility e-bikes
On a deeper look, we notice that the average weight of an Utility e-bike is 35.21 kg (77.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 35 kg (77.16 lbs), the Haul ST model is slightly lighter than average. To sum up, it’s 0.6% lighter than the average weight of Utility e-bikes.
Overview of components
Fork material
Haul ST has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When it comes to wheels, the Haul ST e-bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Haul ST comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
