Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 63mm -
Fork SunTour XCR Air
-
Groupset XT, X7 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, double-butted, formed down tube/top tube, externally relieved head tube, forged dropouts w/replaceable hanger, disc mount
Suspension Fork
Custom SR Suntour XCR-AIR, custom Multi-Circuit Damping, air spring, 63mm of travel, preload adjust, 1-1/8"" steerer, mag lowers, Hi-Ten 28mm stanchions, disc mount
Drivetrain
Rear Derailleur
Shimano Deore XT, Shadow Plus, GS cage, 10-speed
Front Derailleur
SRAM X7, high-clamp 31.8mm, bottom pull, 2x10
Shift Levers
Shimano Deore, RapidFire, I-spec, 10-speed
Cassette
Sunrace, 10-speed, 11-36t
Crank
Custom SRAM S-1255, 2 pc. 10-speed XC double, 36/22T
Bottom Bracket
SRAM GXP, 73mm
Chain
KMC X10L, 10-speed w/reusable MissingLink
Pedals
Alloy platform
Wheels
Front Hub
Specialized Stout XC Pro, Hi Lo disc, alloy, sealed cartridge bearings, QR, 24h
Rear Hub
Specialized Stout XC Pro, Hi Lo disc, alloy, sealed cartridge bearings, QR, 28h
Rims
24"" disc, alloy double-wall, sleeve joint, 23mm inner width
Spokes
Stainless, 14g
Tires
Fast Trak LK Sport, 24x1.8"", 60TPI, wire bead
Brakes
Brakes
Shimano Deore, hydraulic disc, resin pads, 160mm rotor
Cockpit
Stem
Syntace F109, 6-degree rise, 31.8mm clamp
Handlebar
Specialized flat bar, carbon, 8-degree backsweep, 640mm width, 31.8mm
Grips
Specialized Body Geometry XC Contour, lock-on w/gel
Seat
Saddle
Specialized Youth, steel rails
Seatpost
S-Works FACT carbon, 20mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" |
|---|---|
| Stack Reach Ratio | 1.49 mm |
| Bottom Bracket Height | 263.5 mm |
| Front Center | 544 mm |
| Rake | 37 mm |
| Trail | 73 mm |
| Stack | 511 mm |
| Reach | 342 mm |
| Top Tube Length | 497 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 305 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 427 mm |
| Wheelbase | 967 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 617 mm |
| Wheels | 24" |
Model Overview

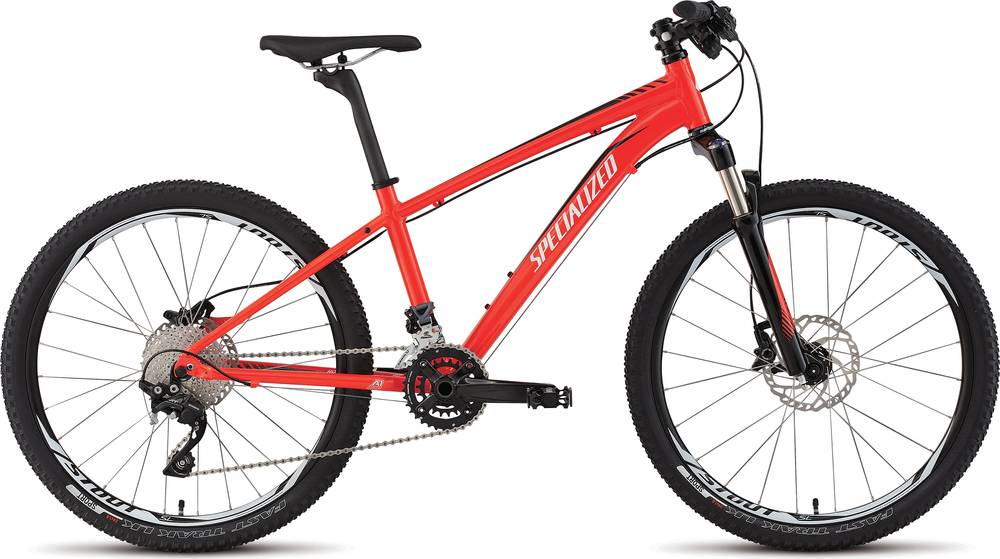

Hotrock 24 XC Pro is part of the Specialized Hotrock model. 35 bikes variations carry this model name so far. Take a sneak peek at all Specialized Hotrock bikes models from 2017, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Youth bikes average price
According to our calculations, the average cost of a Youth bike that is reliable is 278$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Youth bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hotrock 24 XC Pro components
Fork
This bike has the SunTour XCR Air fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
The wheels on Hotrock 24 XC Pro are the 24″ aluminum type. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hotrock 24 XC Pro comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
