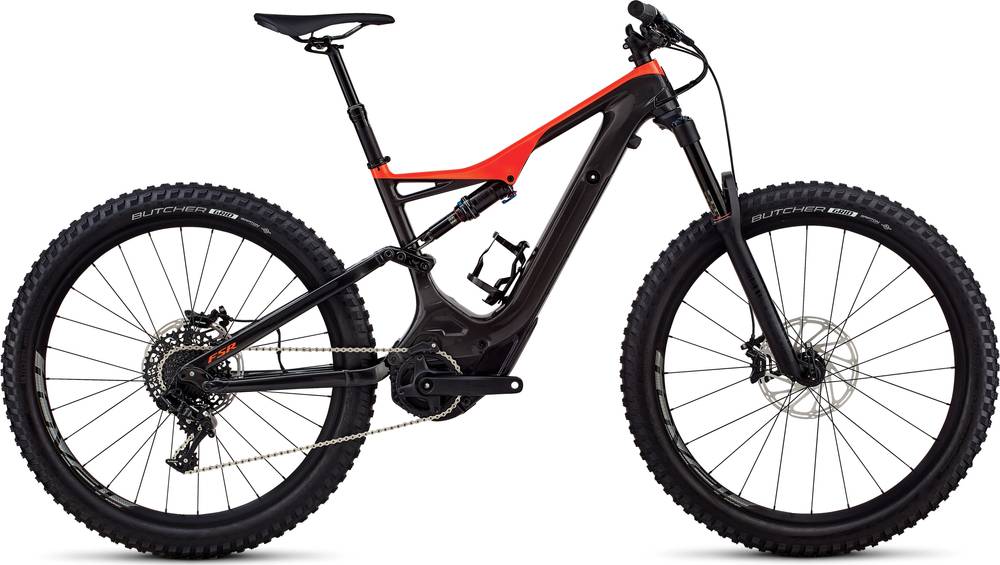

Specialized Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 2018
2018 E-bike
Estimate price |
6,800$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 135mm -
Fork RockShox Revelation RC
-
Groupset GX, SRAM -
Suspension Full -
Motor Specialized 250W mid-drive -
Battery Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon chassis / M5 Alloy rear triangle, 6Fattie/29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 135mm of travel
Suspension Fork
RockShox Revelation RC 6Fattie/29, 51mm offset, 34mm stanchions, 150mm of travel
Rear Shock
RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm
Drivetrain
Rear Derailleur
SRAM GX, long cage, 11-speed
Shift Levers
SRAM GXe, one-click lever
Cassette
SRAM PG-1130, 11-speed, 11-42t
Crank
Custom alloy crankarms, Forged steel, 32T
Chain
KMC X11ET, 11-speed w/ Missing Link™
Pedals
Specialized Platform, Cr-Mo axle, PP-Body
Wheels
Front Hub
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 24h
Rear Hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Roval Traverse 27.5, hookless alloy, 38mm inner width, tubeless ready, 24/28h
Spokes
DT Swiss, stainless
Tires
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"
Brakes
Brakes
SRAM Guide RE, 4-piston caliper, hydraulic disc, 200mm
Cockpit
Stem
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm width
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel
Motor & Battery
Motor
Specialized 1.3, custom Rx Trail-tuned motor, 250W Nominal
Battery
Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity
Charger
Custom charger, 42V4A w/ Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.47 mm | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 699 mm | 727 mm | 757 mm | 792 mm |
| Rake | 51 mm | 51 mm | 50 mm | 51 mm |
| Trail | 102 mm | 102 mm | 103 mm | 102 mm |
| Stack | 594 mm | 599 mm | 626 mm | 645 mm |
| Reach | 382 mm | 407 mm | 426 mm | 452 mm |
| Top Tube Length | 550 mm | 577 mm | 607 mm | 640 mm |
| Seat Tube Angle | 73.3 ° | 73.6 ° | 73.9 ° | 74.2 ° |
| Seat Tube Length | 396 mm | 435 mm | 468 mm | 520 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 95 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1153 mm | 1181 mm | 1211 mm | 1246 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 749 mm | 758 mm | 768 mm | 776 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 is part of the Specialized E Turbo Levo model. There are 86 e-bikes that carry this model name. You can easily view all of the Specialized E Turbo Levo e-bikes models from 2018, here.
Model range prices
Specialized Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 2018 is the most economical model, with a starting price of 6800$. Specialized Men’s S-Works Turbo Levo FSR Carbon 6Fattie/29 2018 on the other hand costs 10000$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6800$. If we compare this with the average Trail e-bike cost we notice that the price is 102.08% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 components
Fork
Specialized Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 2018 e-bike is equipped with the RockShox Revelation RC fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Monarch RT rear shock model, which has a travel of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
