Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, fully butted, tapered headtube, PF30 forged BB shell, w/ integrated ISCG 05 tabs, forged horizontal dropouts w/ integrated chain tensioners
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
FSA Orbit, 1-1/8"" upper, 1-1/2"" lower integrated, Campy style, full cartridge bearings, 5.3mm cone spacer, includes 1-1/8"" reducer crown race
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1.0 |
|---|---|
| Stack Reach Ratio | 1.34 mm |
| Bottom Bracket Height | 325.5 mm |
| Front Center | 681 mm |
| Rake | 49 mm |
| Trail | 76 mm |
| Stack | 564 mm |
| Reach | 420 mm |
| Top Tube Length | 630.1 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 312 mm |
| Head Tube Angle | 69.5 ° |
| Head Tube Length | 122 mm |
| Chainstay Length | 382 mm |
| Wheelbase | 1062 mm |
| Bottom Bracket Drop | 16 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model

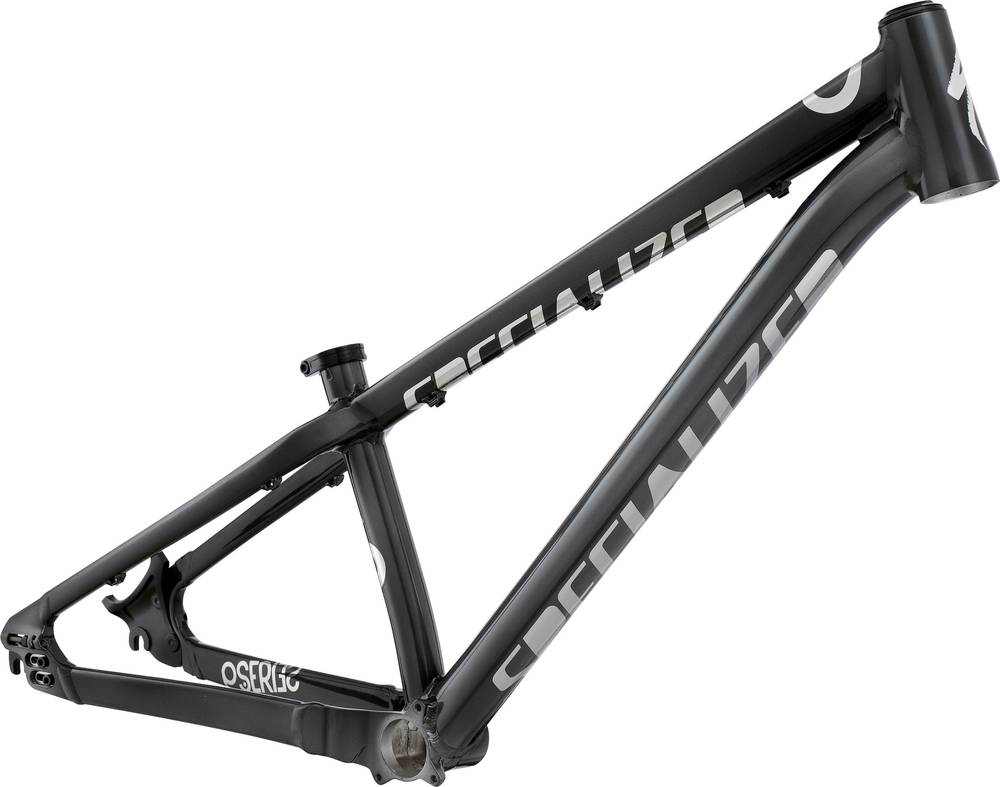

P.3 Frame belongs to the Specialized P3 model. 20 frames variations carry this model name so far. You can easily view all of the Specialized P3 frames models from 2015, here.
