Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, fully butted tubing, tapered head tube, PF30 BB shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners
Drivetrain
Bottom Bracket
PF30, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 22.5" |
|---|---|
| Stack Reach Ratio | 1.37 mm |
| Bottom Bracket Height | 322.5 mm |
| Front Center | 678 mm |
| Rake | 40 mm |
| Trail | 83 mm |
| Stack | 575 mm |
| Reach | 420 mm |
| Top Tube Length | 630 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 312 mm |
| Head Tube Angle | 69.5 ° |
| Head Tube Length | 122 mm |
| Chainstay Length | 382 mm |
| Wheelbase | 1060 mm |
| Bottom Bracket Drop | 16 mm |
| Standover Height | 335 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
Model Overview

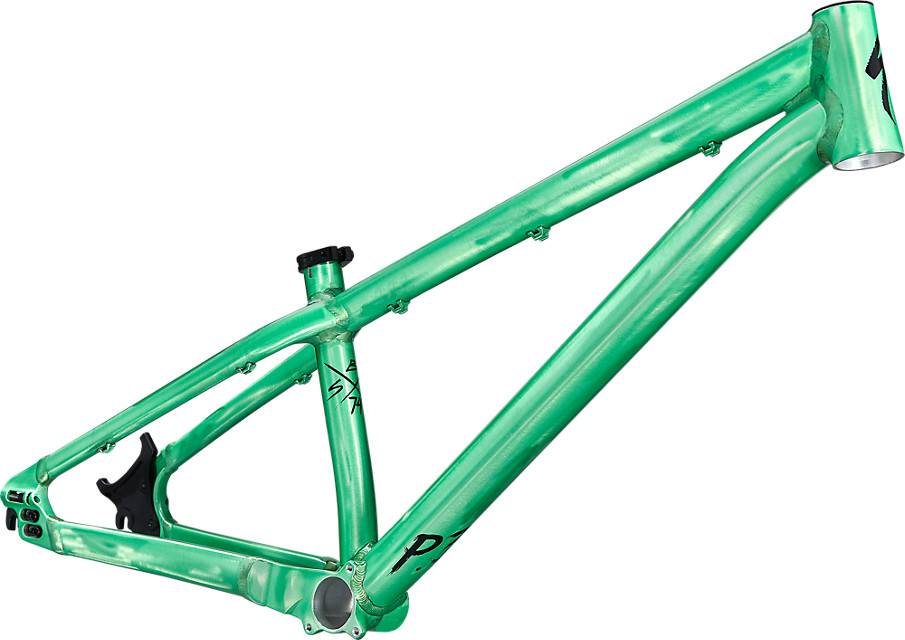

P.3 Frameset is a Specialized P3 model. Specialized released 20 frames variations of this model so far. Take a sneak peek at all Specialized P3 frames models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Dirt Jump frames
According to our calculations, the average cost of a Dirt Jump frame that is reliable is 491$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 510$. Doing a quick comparison, we notice that P.3 Frameset price is 3.87% higher than the average cost of a Dirt Jump frame.
