Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset X5, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M4 fully manipulated alloy frame, fully butted, ORE DT, externally relieved HT, forged dropouts w/ replaceable derailleur hanger
Suspension Fork
SR Suntour SF9-XCR-LO, 80/100mm, 1 piece magnesium lower, alloy steerer, hydraulic damping w/ LO and preload adj. size-specific spring rates, spring assisted seal
Drivetrain
Rear Derailleur
SRAM X-5, mid cage
Front Derailleur
Shimano Altus, 34.9mm clamp
Shift Levers
SRAM X4-R trigger
Cassette
SRAM PG-830, 8-speed, 11-32t
Crank
SR SunTour, Octalink spline
Bottom Bracket
Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
Chain
KMC X8 w/ reuseable Missing Link
Pedals
Steel cage, composite body, 9/16""
Wheels
Front Hub
Forged alloy, double sealed, ground race, steel QR, 28h
Rear Hub
Shimano RM30, forged alloy, double sealed, ground race, cassette, 32h
Rims
Alex RH 26, alloy double wall, CNC sidewalls, 26h front and 28h rear
Spokes
2mm (14g) stainless
Tires
Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
Brakes
Brakes
V brake, alloy linear pull, 1pc. pad
Brake Levers
Alloy, linear pull
Cockpit
Stem
3D forged alloy, 7 degree rise, 31.8mm clamp
Handlebar
Butted alloy riserbar, 25mm rise, 660mm wide, 8 degree back sweep, 7 degree up sweep
Grips
Specialized Enduro, dual compound Kraton, no flange, 131mm
Headset
1-1/8"" threadless, loose ball
Seat
Saddle
Specialized Rockhopper XC, Body Geometry, 143mm width, front and rear bumpers
Seatpost
Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Top Tube Length | 543 mm | 563 mm | 588 mm | 613 mm | 638 mm | 658 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1027 mm | 1047 mm | 1073 mm | 1099 mm | 1125 mm | 1146 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 691 mm | 723 mm | 765 mm | 798 mm | 834 mm | 870 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

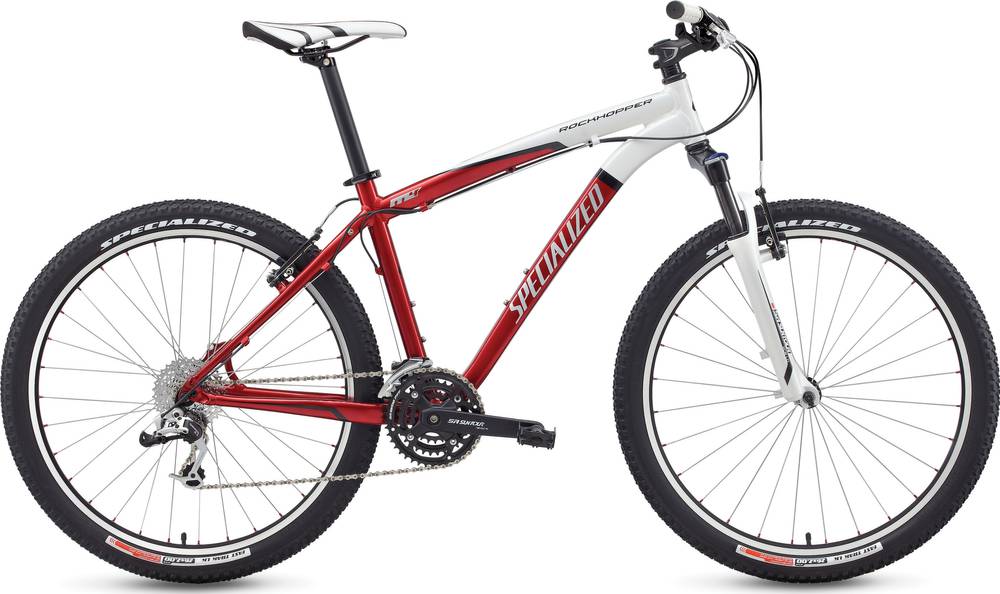

Rockhopper completes the Specialized Rockhopper model. 119 bikes variations carry this model name so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Rockhopper has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Rockhopper bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rockhopper has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
