Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized Ruby FACT 7r carbon, triple monocoque construction, compact women's design w/ Zertz inserts
Suspension Fork
Ruby full carbon monocoque, w/ Zertz inserts
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 STI, flight deck compatible
Cassette
Shimano 105, 10-speed, 12-27t
Crank
Shimano FC-R600
Bottom Bracket
With Crankset
Chain
KMC X10 CP
Pedals
Silver cage/black body, w/ black toe clips and strap
Wheels
Front Hub
Forged alloy, sealed, 28h for J bend round spokes
Rear Hub
Forged alloy, sealed, cassette, QR, 32h
Rims
Mavic CXP-22 S, aluminum triple-wall, sleeve joint, CNC machined sidewalls, w/ eyelets
Spokes
Stainless 14g
Tires
Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
Brakes
Brakes
Arch design, cold forged dual pivot w/ cartridge pads
Brake Levers
Shimano 105 STI, flight deck compatible
Cockpit
Stem
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
Handlebar
Specialized Women's Comp Ergo, 6061 alloy
Headset
Aheadset 1 1/8"" w/ top cap, 20mm cone spacer and 20mm of flat spacers
Seat
Saddle
Body Geometry women's Lithia w/ hollow Cr-Mo rails
Seatpost
Specialized Comp, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 264 mm |
| Front Center | 575 mm | 579 mm | 585 mm | 583 mm | 604 mm |
| Rake | 51 mm | 51 mm | 51 mm | 49 mm | 49 mm |
| Trail | 68 mm | 62 mm | 60 mm | 59 mm | 59 mm |
| Top Tube Length | 500 mm | 508 mm | 517 mm | 534 mm | 558 mm |
| Seat Tube Angle | 75.75 ° | 75.75 ° | 75.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 480 mm | 510 mm |
| Head Tube Angle | 70.25 ° | 71.25 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 165 mm | 190 mm |
| Chainstay Length | 414 mm | 417 mm | 417 mm | 417 mm | 419 mm |
| Wheelbase | 978 mm | 985 mm | 991 mm | 989 mm | 1012 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 71 mm |
| Standover Height | 694 mm | 716 mm | 742 mm | 767 mm | 794 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

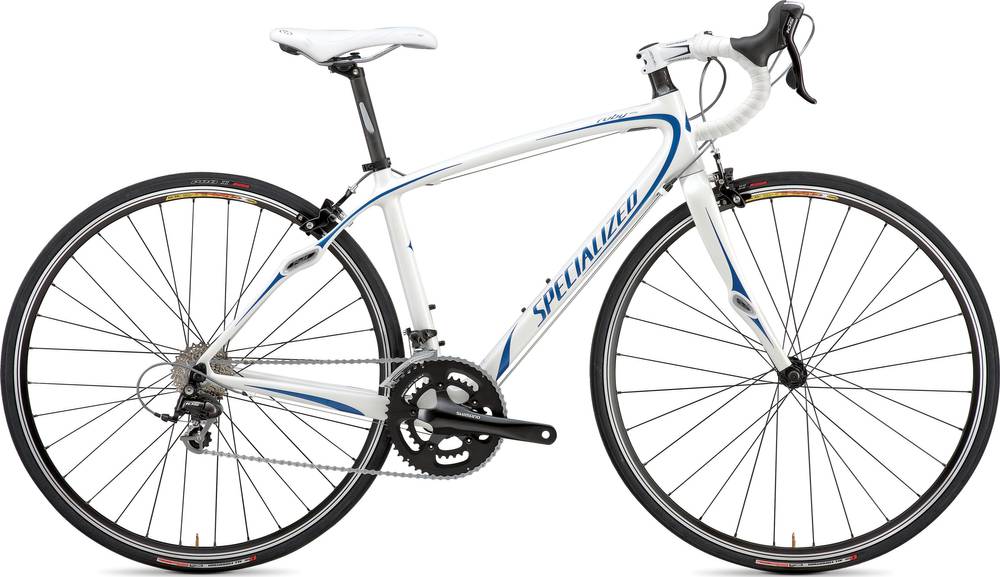

Ruby Elite Compact belongs to the Specialized Ruby model. 78 bikes variations carry this model name so far. You can easily view all of the Specialized Ruby bikes models from 2010, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Ruby Elite Compact 2010 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Ruby Elite Compact is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
