Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized FACT 9r carbon rim, FACT construction, Women's Endurance Geometry, Women's Layup, Zertz, threaded
Suspension Fork
Specialized Ruby FACT carbon, full monocoque, Zertz inserts
Drivetrain
Rear Derailleur
Shimano 105, long cage, 11-speed
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105 STI, 11-speed
Cassette
Shimano 105, 11-speed, 11-32t
Crank
Praxis Alba, 50/34T
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X11, 11-speed
Wheels
Rims
Axis Elite, QR
Tires
Turbo Pro, 700x26mm, 60TPI, folding bead, BlackBelt protection
Brakes
Brakes
AXIS 1.0
Cockpit
Stem
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
Handlebar
Specialized Women's Comp Shallow Drop, alloy, 123mm drop, 75mm reach
Seat
Saddle
Lithia Comp Gel, hollow Cr-Mo rails, 155mm
Seatpost
Specialized CG-R, FACT carbon, single bolt, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.47 mm | 1.52 mm | 1.51 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 271 mm |
| Front Center | 576 mm | 583 mm | 586 mm | 590 mm | 614 mm |
| Rake | 51 mm | 51 mm | 51 mm | 49 mm | 49 mm |
| Trail | 69 mm | 62 mm | 61 mm | 60 mm | 60 mm |
| Stack | 513 mm | 526 mm | 541 mm | 563 mm | 585 mm |
| Reach | 355 mm | 367 mm | 367 mm | 371 mm | 387 mm |
| Top Tube Length | 498 mm | 514 mm | 523 mm | 533 mm | 561 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 363 mm | 391.5 mm | 421.5 mm | 456.5 mm | 486.5 mm |
| Head Tube Angle | 70.25 ° | 71.25 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 165 mm | 190 mm |
| Chainstay Length | 409 mm | 412 mm | 412 mm | 412 mm | 414 mm |
| Wheelbase | 974 mm | 984 mm | 987 mm | 991 mm | 1017 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 71 mm |
| Standover Height | 699 mm | 718 mm | 737 mm | 765 mm | 789 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

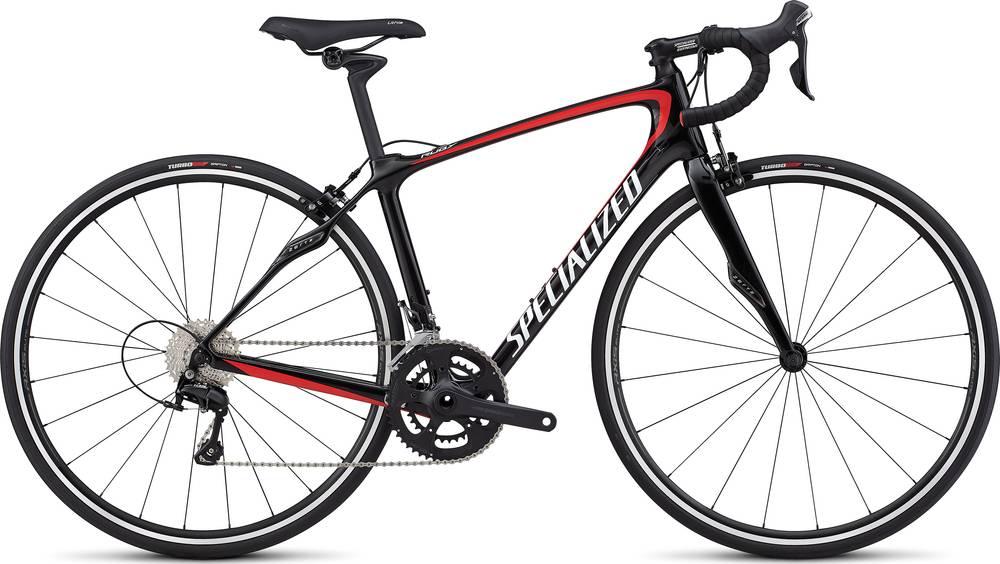

Ruby SL4 Sport – Rim Brake is part of the Specialized Ruby model. 78 bikes variations carry this model name so far. Take a sneak peek at all Specialized Ruby bikes models from 2017, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Ruby SL4 Sport – Rim Brake model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ruby SL4 Sport – Rim Brake comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
