Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works E5 Premium Aluminum w/ D'Aluisio Smartweld Technology, tapered headtube, OSBB, Di2 only
Suspension Fork
S-Works FACT carbon, full monocoque
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2, 11-speed
Front Derailleur
Shimano Dura-Ace Di2, 11-speed, clamp-on
Shift Levers
Shimano Dura-Ace Di2 STI, 11-speed
Cassette
Shimano Dura-Ace, 11-speed, 11-28
Crank
S-Works FACT carbon, OSBB, 52/36
Chain
Shimano Dura-Ace, 11-speed
Pedals
Nylon flat test ride, loose-ball, w/ reflectors
Wheels
Rims
Roval Rapide CLX 40, w/ CeramicSpeed ceramic bearings
Tires
S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c
Brakes
Brakes
Shimano Dura-Ace
Cockpit
Stem
S-Works SL, 6-degree rise, w/ Ti bolt
Handlebar
S-Works Aerofly
Headset
1-1/8"" upper race, 1-3/8"" lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers
Seat
Saddle
Body Geometry Toupé Pro, carbon rails, 143mm
Seatpost
S-Works FACT carbon, 20mm offset, 27.2mm, w/ internal battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.46 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 613 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 515 mm | 515 mm | 539 mm | 566 mm | 598 mm | 623 mm |
| Reach | 372 mm | 377 mm | 379 mm | 387 mm | 394 mm | 400 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 120 mm | 145 mm | 170 mm | 205 mm | 230 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 970 mm | 978 mm | 995 mm | 1005 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 733 mm | 769 mm | 790 mm | 808 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview

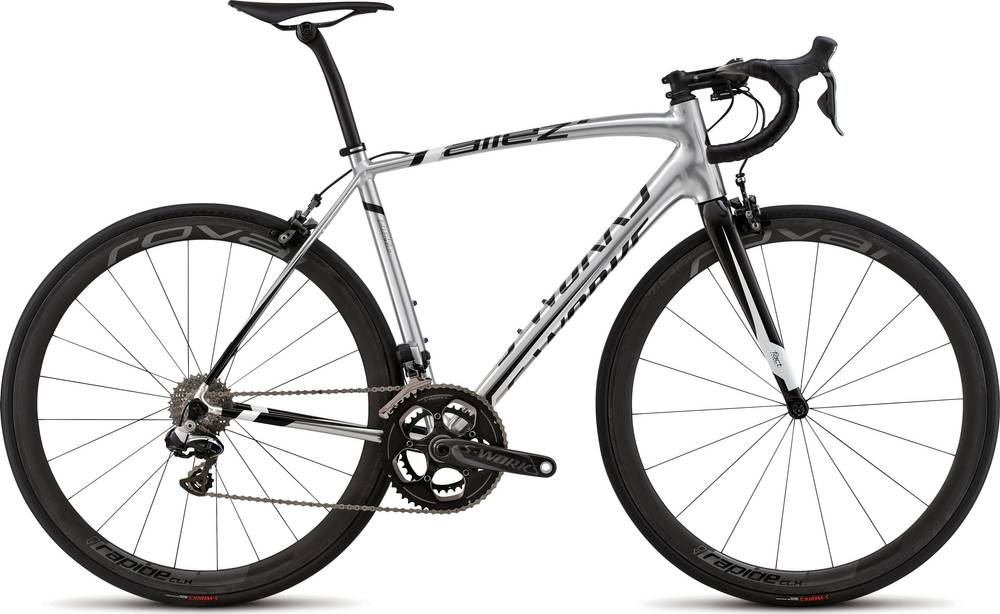

S-Works Allez Di2 is part of the Specialized Allez model. Specialized launched 112 bikes of this model so far. You can easily view all of the Specialized Allez bikes models from 2015, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the S-Works Allez Di2 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized S-Works Allez Di2 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Specialized S-Works Allez Di2 bike has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
