Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Dura-Ace, RED -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized S-Works Smartweld E5 alloy, hydroformed aluminum tubing, 1-3/8"" lower bearing, OSBB
Suspension Fork
Specialized S-Works Tarmac, FACT carbon full monocoque, carbon steerer/crown for 1-3/8"" lower bearing
Drivetrain
Rear Derailleur
Shimano Dura-Ace 9000
Front Derailleur
Shimano Dura-Ace 9000
Shift Levers
Shimano Dura-Ace 9000 STI
Cassette
Shimano Dura-Ace 9000, 11-speed
Crank
Specialized FACT carbon, SRAM RED rings
Bottom Bracket
BB30, ceramic bearings
Chain
KMC X11 SL
Pedals
Nylon flat test ride, loose ball, w/ reflectors
Wheels
Rims
Roval Rapide CLX 40
Tires
Specialized S-Works Turbo, 127TPI, aramid bead, BlackBelt protection, 700x24c
Brakes
Brakes
Shimano Dura-Ace 9000
Brake Levers
Shimano Dura-Ace 9000
Cockpit
Stem
Specialized S-Works SL, 4-bolt, 31.8mm clamp
Handlebar
Specialized S-Works Tarmac, FACT carbon, short drop
Headset
1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings integrated w/ headset, 8mm cone spacer, w/ 20mm of carbon spacers
Seat
Saddle
Body Geometry Toupe Pro, FACT carbon rails, 143mm
Seatpost
Specialized S-Works, FACT carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.46 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 613 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 515 mm | 515 mm | 539 mm | 566 mm | 598 mm | 623 mm |
| Reach | 372 mm | 377 mm | 379 mm | 387 mm | 394 mm | 400 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 120 mm | 145 mm | 170 mm | 205 mm | 230 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 970 mm | 978 mm | 995 mm | 1005 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 733 mm | 769 mm | 790 mm | 808 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview

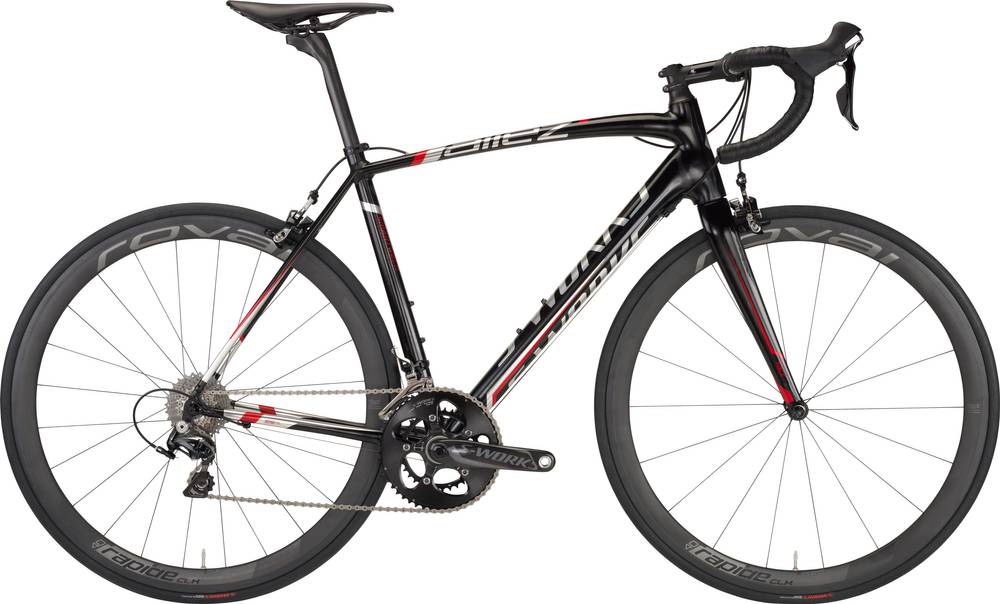

S-Works Allez Limited is a Specialized Allez model. There are 112 bikes that carry this model name. You can easily view all of the Specialized Allez bikes models from 2014, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
S-Works Allez Limited components
Fork material
S-Works Allez Limited has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The S-Works Allez Limited 2014 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The S-Works Allez Limited comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, you can easily find one that suits you.
