Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 110mm -
Fork Fox
-
Groupset XX1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon, 29” geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 110mm travel
Suspension Fork
FOX Float CTD Factory 29, Kashima coating, FIT damper, air spring, tapered steerer, compression, lockout, and rebound adjust, 15mm thru-axle, 110mm travel
Rear Shock
Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings w/ Trail and rebound adjust, 197x48mm
Drivetrain
Rear Derailleur
SRAM XX1, 11-speed
Shift Levers
SRAM XX1, 11-speed, trigger
Cassette
SRAM XX1, 11-speed, 10-42
Crank
S-Works FACT carbon, custom XX1 chainring, OSBB, 30T, 104mm BCD spider
Bottom Bracket
Praxis, PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC-XX1, 11-speed, w/ PowerLink
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Roval Control SL 29, alloy hub body w/ Labyrinth design, 15mm thru-axle, 24h
Rear Hub
Roval Control SL 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 28h
Rims
Roval Control SL 29, carbon disc, 22mm internal width, 24/28h
Spokes
DT Swiss Revolution
Tires
Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3""
Brakes
Brakes
Shimano XTR, hydraulic disc, Ti-metal pads, Ice Tech rotor, S/M: 180mm rotor, Others: 200mm
Brake Levers
Shimano XTR, carbon lever
Cockpit
Stem
Syntace F109, 6-degree rise
Handlebar
Specialized XC, mini rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Henge Expert, hollow Ti rails, 143mm
Seatpost
Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust SRL, 30.9mm, 100mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 585 mm | 594 mm | 618 mm | 641 mm |
| Reach | 394 mm | 422 mm | 439 mm | 460 mm |
| Top Tube Length | 549 mm | 581 mm | 606 mm | 636 mm |
| Seat Tube Angle | 75 ° | 74.8 ° | 74.5 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1094 mm | 1125 mm | 1150 mm | 1180 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 734 mm | 739 mm | 743 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

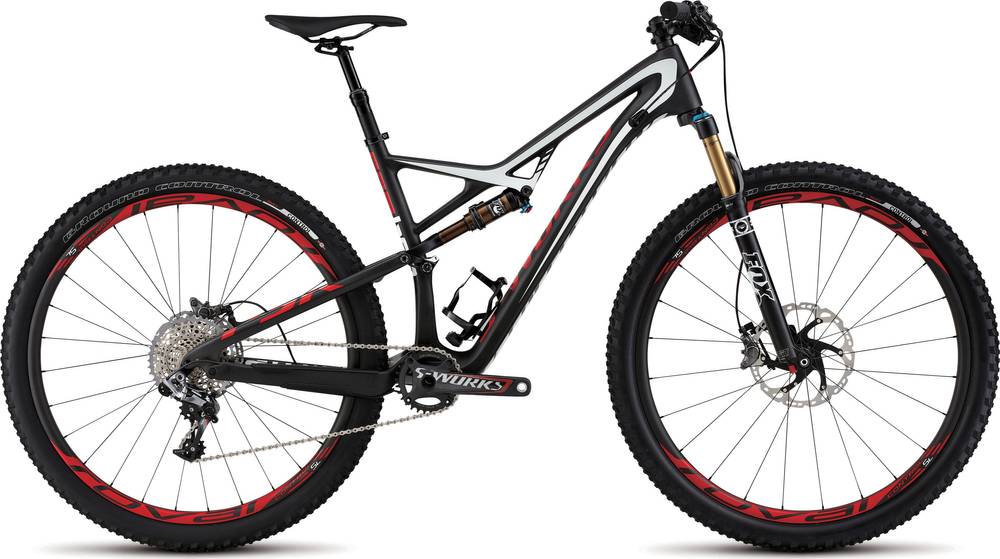

S-Works Camber 29 is part of the Specialized Camber model. Specialized launched 60 bikes of this model so far. You can easily view all of the Specialized Camber bikes models from 2015, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Fox model. The travel on this model is 110mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve model, with a travel of 110mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on S-Works Camber 29 are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the S-Works Camber 29. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
