Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m, full carbon chassis and rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, Concentric Pivot link, 12x142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel
Suspension Fork
FOX 34 Factory 29, Kashima coating, 3-position adjust, compression and rebound adjust, 51mm offset, 15x100mm thru-axle, 120mm travel
Rear Shock
FOX FLOAT Factory, Rx Trail Tune, AUTOSAG, DPS damper, Kashima coating, rebound and 3-position compression and Open adjust, 205x53mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Shift Levers
SRAM XX1 Eagle, 12-speed, trigger
Cassette
SRAM XG-1295, 12-speed, 10-50t
Crank
SRAM XX1 Eagle, carbon, 30mm spindle, 49mm chainline, 30T
Bottom Bracket
SRAM PF30, OS press-in bearings
Chain
SRAM XX1 Eagle, black, 12-speed w/PowerLink
Pedals
Resin Test Ride w/toe clips
Wheels
Rims
Roval Traverse SL 29, hookless carbon, 30mm inner width, 24/28h
Spokes
DT Swiss Revolution
Tires
Purgatory, Control casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
Shimano XTR M9000, hydraulic disc, post mount, metallic pads, 200/180mm rotors
Cockpit
Stem
Syntace F109, 6-degree rise, 31.8mm clamp
Handlebar
Specialized Trail, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm, 31.8mm
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Expert, hollow titanium rails, 143mm
Seatpost
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.43 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 673 mm | 701 mm | 726 mm | 763 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 605 mm | 605 mm | 623 mm | 651 mm |
| Reach | 395 mm | 423 mm | 441 mm | 467 mm |
| Top Tube Length | 558 mm | 586 mm | 609 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1103 mm | 1131 mm | 1156 mm | 1193 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 728 mm | 731 mm | 748 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

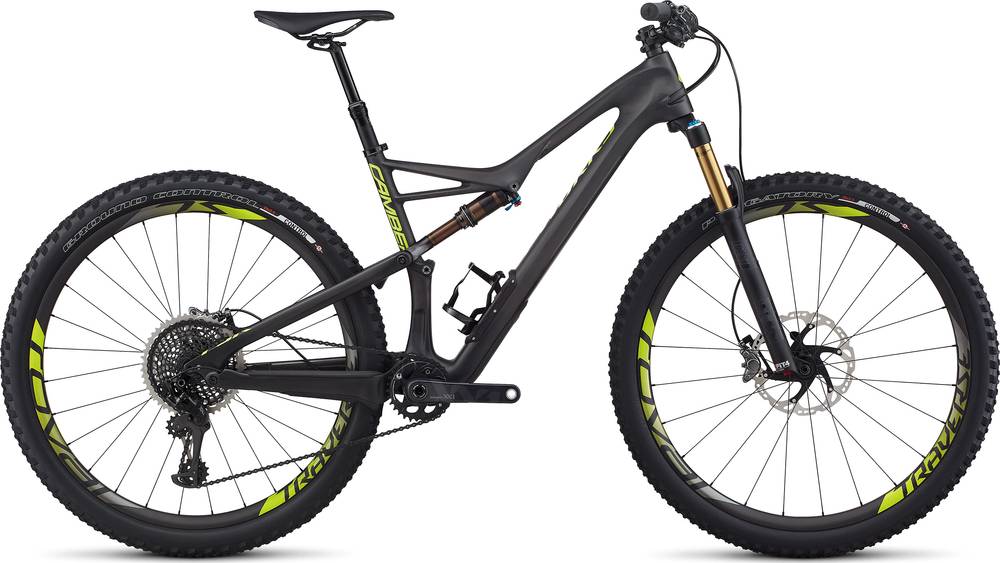

S-Works Camber 29 completes the Specialized Camber model. Specialized launched 60 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Camber 29 components
Fork
Specialized S-Works Camber 29 2017 bike is equipped with the Fox Factory Float 34 fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX FLOAT Factory rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the S-Works Camber 29 model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized S-Works Camber 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Specialized S-Works Camber 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Specialized model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
