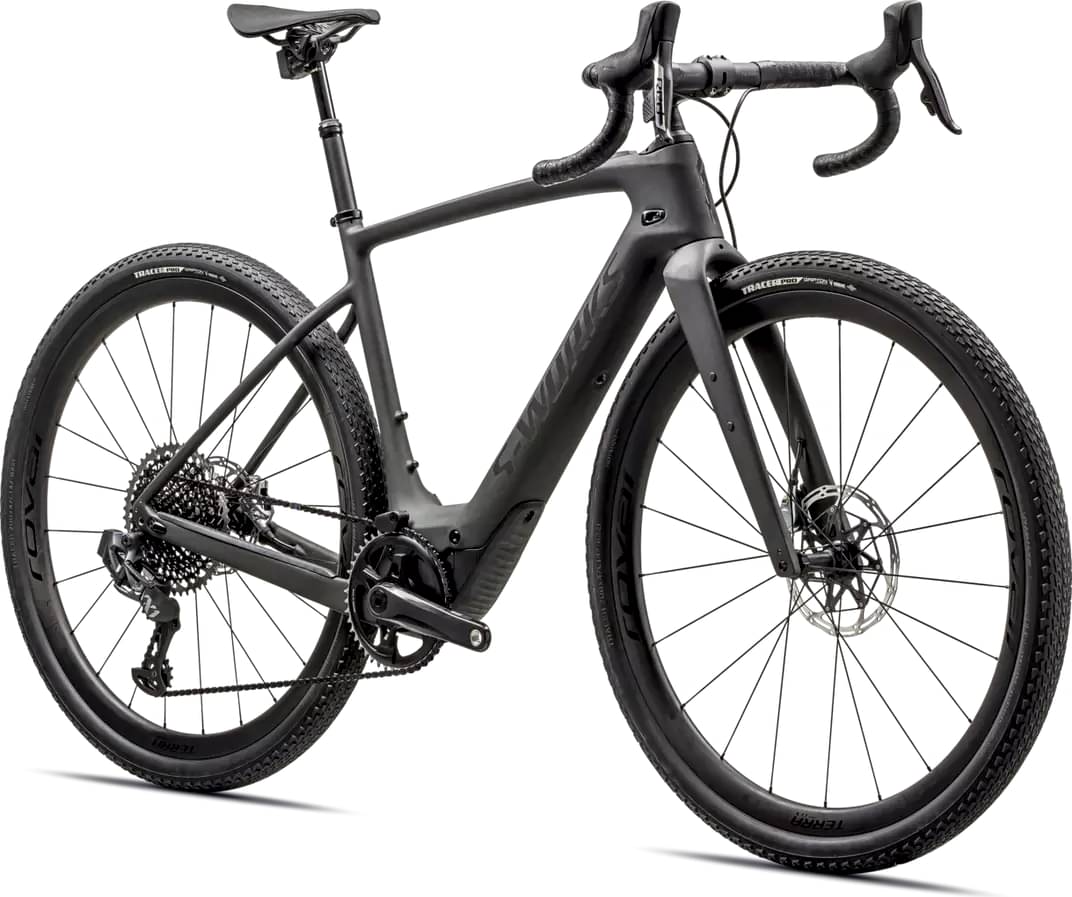

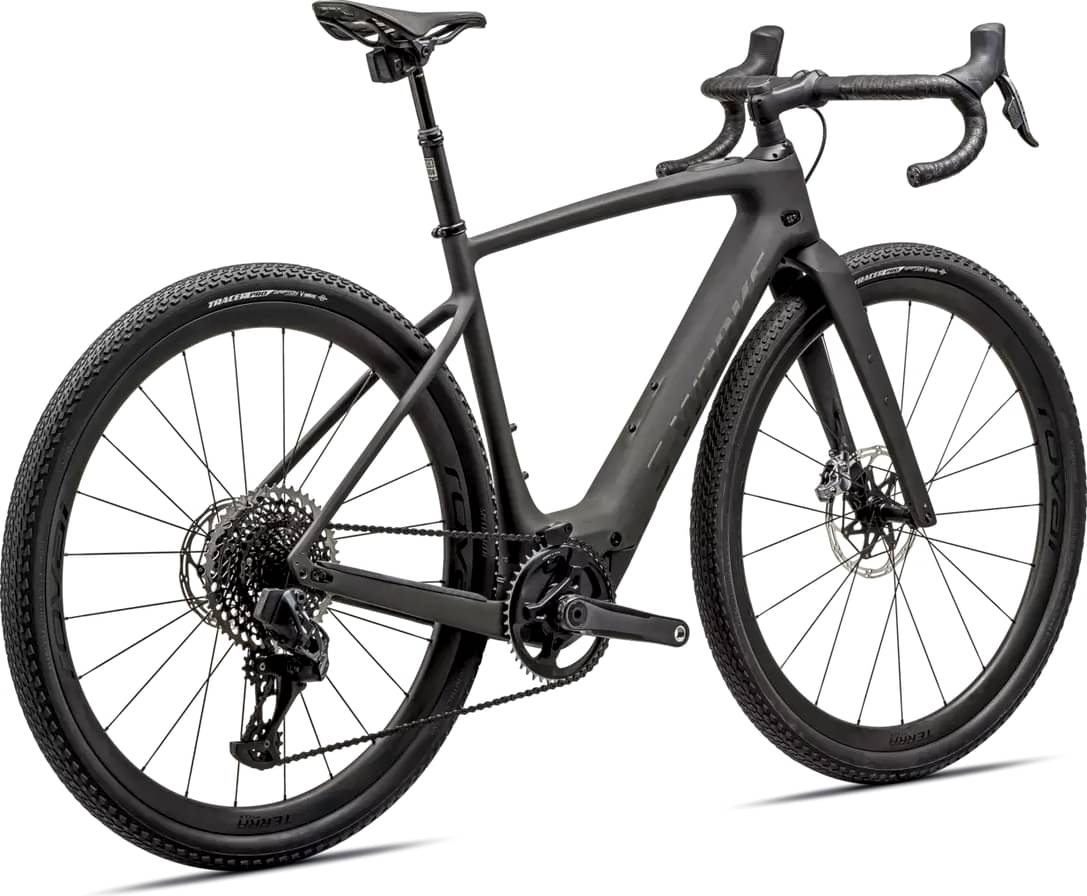

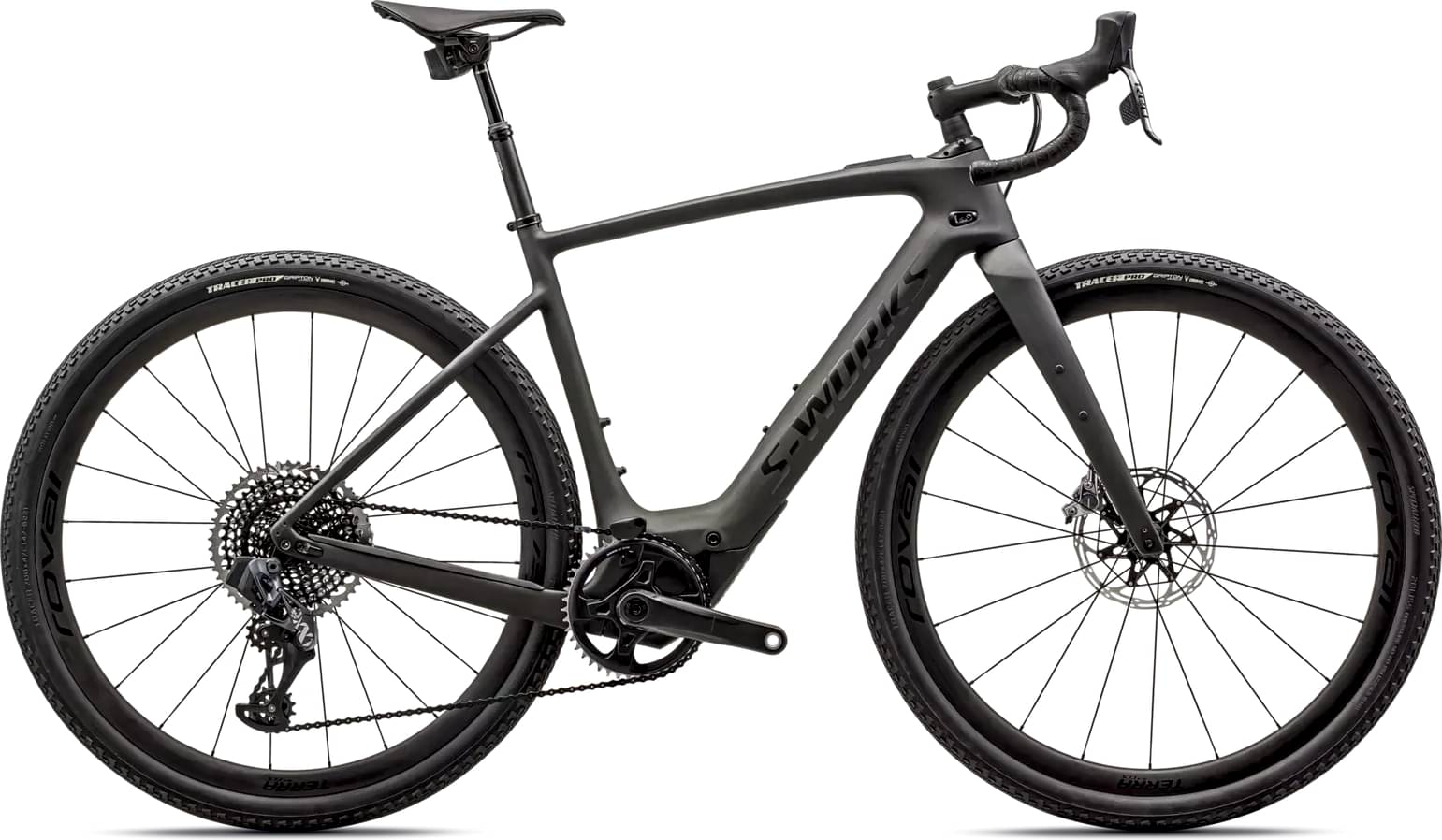

Specialized S-Works Creo 2 2024
2024 E-bike
Estimate price |
14,000$
Weight | 12.96 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 20mm -
Fork Specialized Future Shock
-
Groupset XX1 Eagle AXS, RED AXS -
Suspension Hardtail -
Motor Specialized 250W 72Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11r carbon, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm
Suspension Fork
Future Shock 3.3 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM Red eTap AXS
Cassette
SRAM XG 1295, 12-Speed, 10-50t
Crank
SRAM Carbon DUB Crank Arms, SRAM X-Sync Eagle, 107 BCD, 44T
Chain
SRAM XX1 Eagle
Wheels
Rims
Front: Roval Terra CLX II, 25mm internal width, 32mm depth, 21h, Tubeless ready, Roval LFD hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes, Rear: Roval Terra CLX II, 25mm internal width, 32mm depth, 24h, Tubeless ready, Roval LFD hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Tires
Front: Tracer Pro, 700x47c, Rear: Tracer Pro, 700x47c
Brakes
Brakes
Front: SRAM Red eTAP AXS, hydraulic disc, Rear: SRAM Red eTAP AXS, hydraulic disc
Cockpit
Stem
S-Works Future Stem w/ Integrated Computer mount

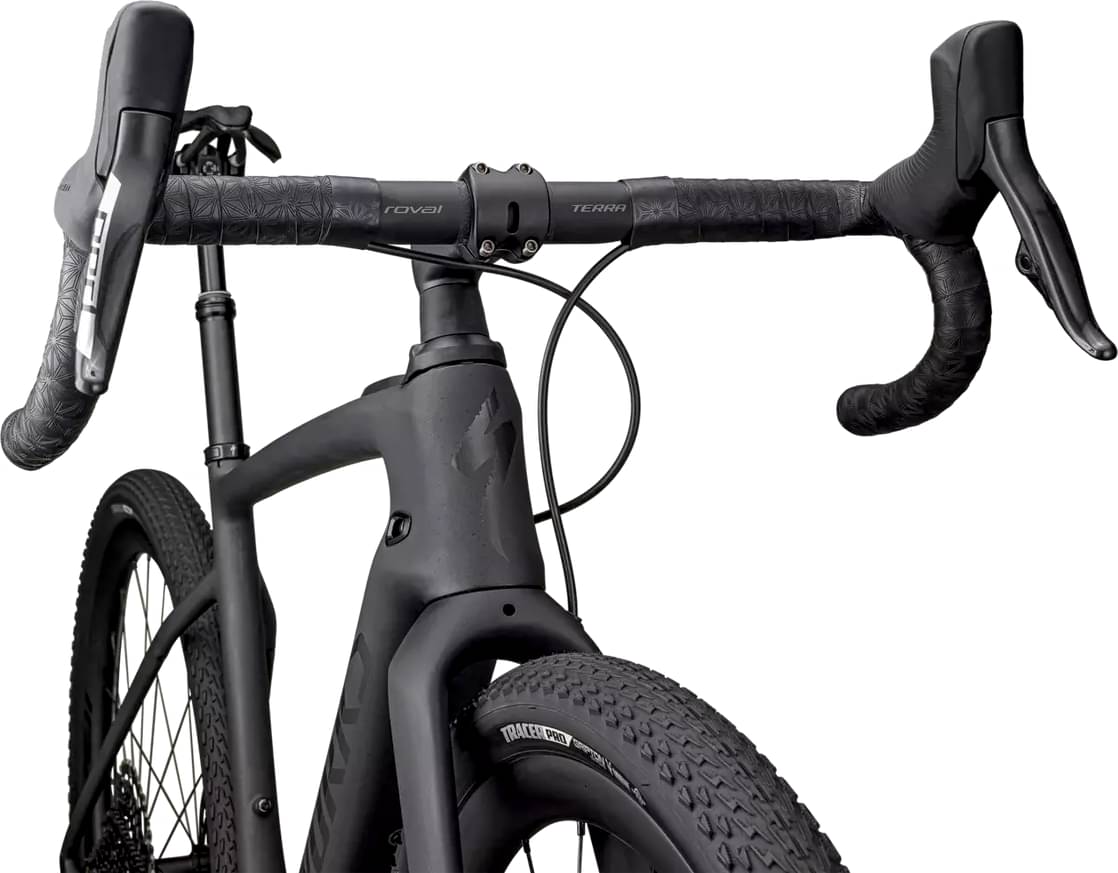

Handlebar
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Seat
Saddle
Body Geometry S-Works Power

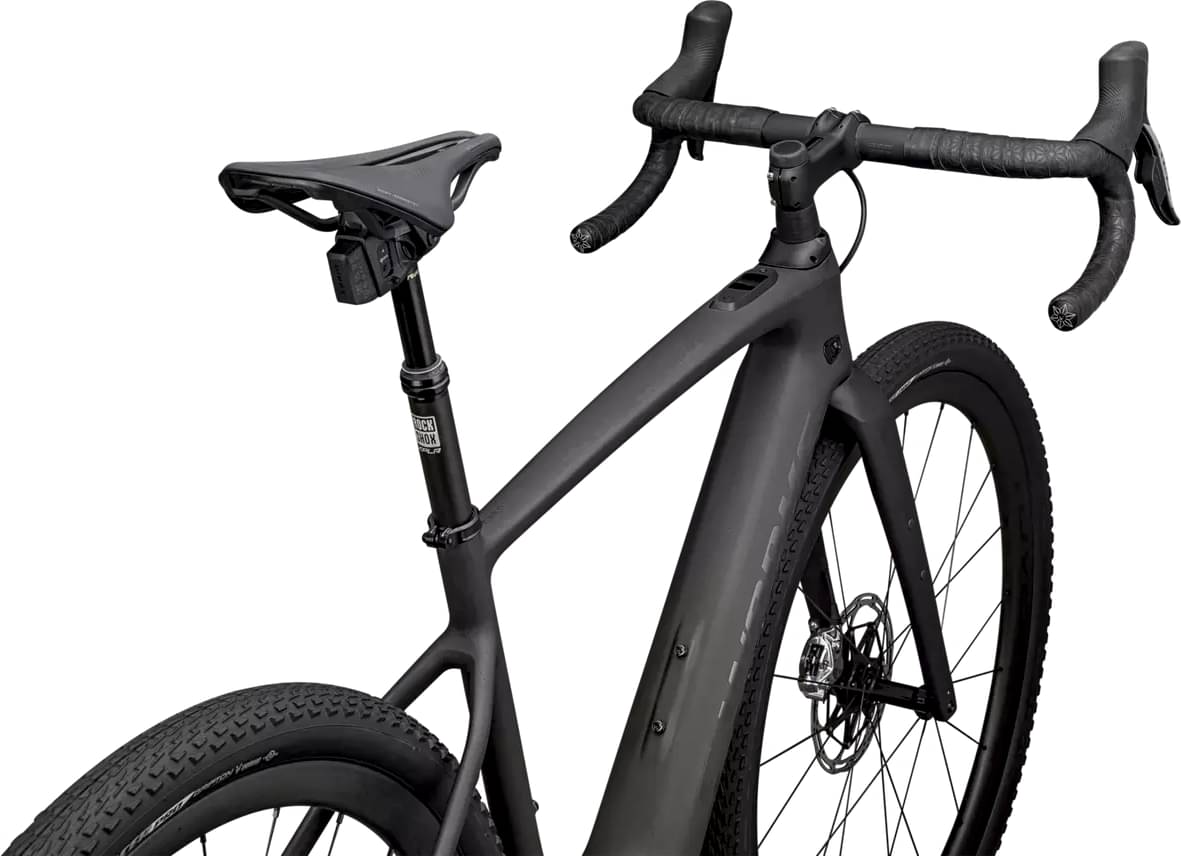

Seatpost
SRAM Reverb AXS XPLR Dropper, 49cm-52cm: 50mm drop
Motor & Battery

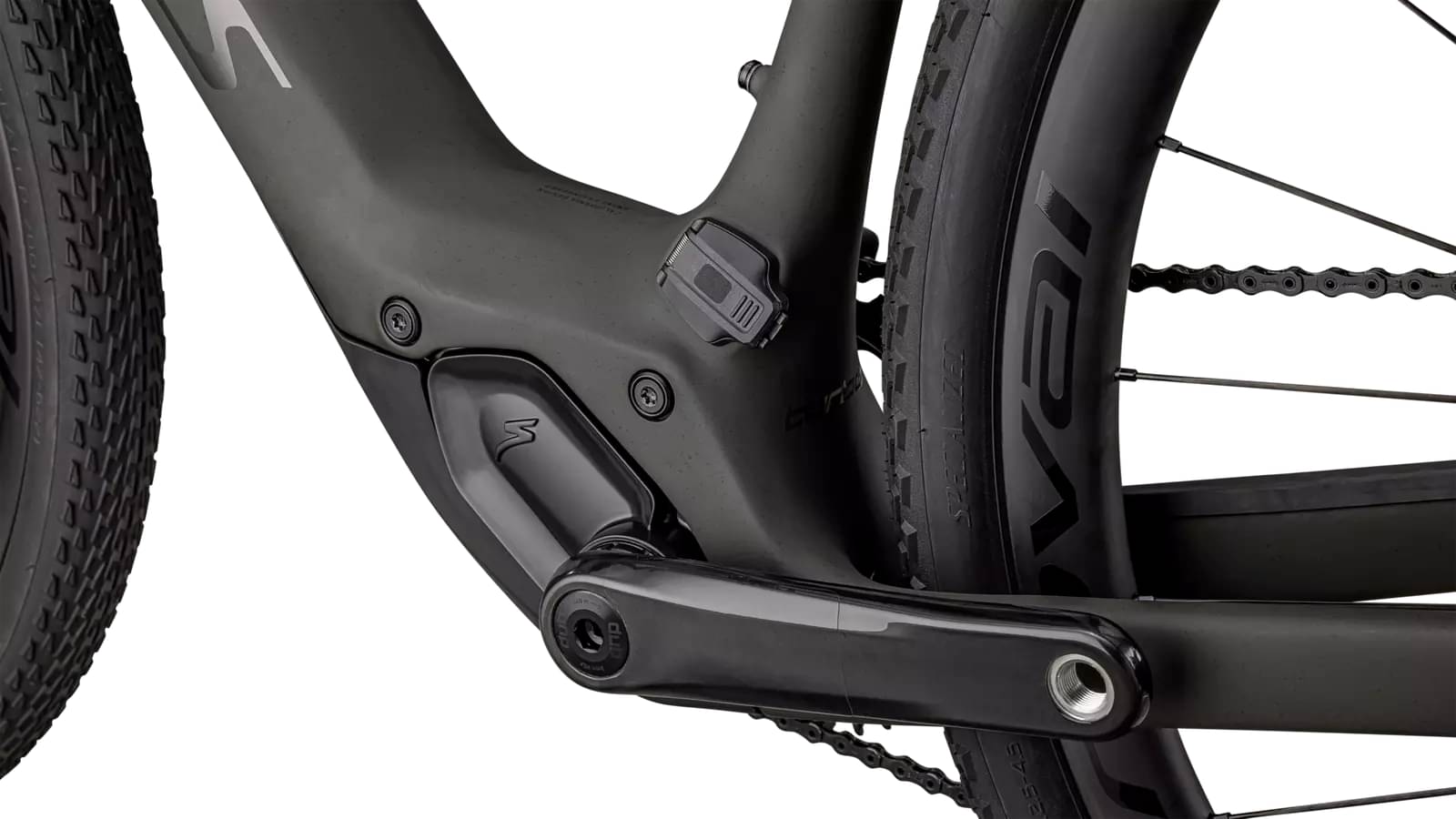

Motor
New Specialized 1.2 SL Custom Lightweight Motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.56 mm | 1.56 mm | 1.56 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 600.1 mm | 609 mm | 623.8 mm | 636.6 mm | 656.2 mm | 673.8 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 571 mm | 571 mm | 588 mm | 600 mm | 631 mm | 656 mm |
| Reach | 358 mm | 367 mm | 376 mm | 385 mm | 394 mm | 403 mm |
| Top Tube Length | 524 mm | 533 mm | 547 mm | 565 mm | 583 mm | 606 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 410 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 108 mm | 120 mm | 153 mm | 180 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1015 mm | 1024 mm | 1039 mm | 1052 mm | 1072 mm | 1090 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 724 mm | 736 mm | 766 mm | 786 mm | 817 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
S-Works Creo 2 belongs to the Specialized E Creo model. There are 3 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Specialized Creo 2 Comp 2024 is the most economical model, with a starting price of 6500$. Specialized S-Works Creo 2 2024 on the other hand costs 14000$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 14000$. Comparing this to the average Gravel e-bike price, we see that the price is 284.4% higher.
Average weight for Gravel e-bikes
If we make a quick analysis of the average weight of a Gravel e-bike, we get 14.21 kg (31.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Specialized S-Works Creo 2 it’s weighing 12.96 kg (28.57 lbs). At this weight, is a bit lighter than average. In conclusion, the average Gravel e-bike weighs 9.65% more than S-Works Creo 2.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Creo 2 components
Fork
The fork installed on this bike is the Specialized Future Shock model. The travel on this model is 20mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
S-Works Creo 2 has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on S-Works Creo 2 are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Creo 2 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
S-Works Creo 2 comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Specialized S-Works Creo 2 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
