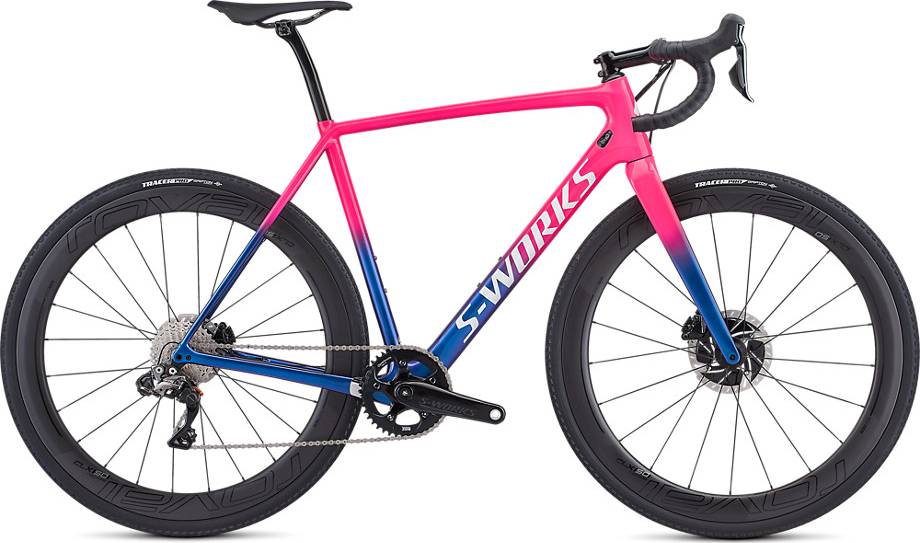

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset XTR Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, Rider-First Engineered™, OSBB, 1-3/8" lower bearing, 12x142mm thru-axle, flat-mount disc
Suspension Fork
S-Works FACT 11r carbon, 12x100mm thru-axle
Drivetrain
Rear Derailleur
Shimano XTR M9050 Di2, Shadow Plus, GS cage, 11-speed
Shift Levers
Shimano Dura-Ace Di2 ST-R9170 shift levers
Cassette
Shimano Ultegra, 11-speed, 11-32t
Crank
S-Works Power Cranks, single-sided power, BB30, 11-speed, Praxis Wave Tech, 110 BCD, 42T
Bottom Bracket
OSBB, CeramicSpeed bearings
Chain
Shimano Dura-Ace, 11-speed
Pedals
Nylon, 105x78x28mm, loose ball w/ reflectors
Wheels
Rims
Roval CLX 50 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 50mm depth, CeramicSpeed bearings, 21h
Tires
Tracer Pro, 2Bliss Ready, 700x33mm
Brakes
Brakes
Shimano Dura-Ace, hydraulic disc
Cockpit
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Handlebar
S-Works Shallow Bend Carbon, 125mm drop x 75 mm reach
Seat
Saddle
Body Geometry S-Works Phenom, carbon rails, 143mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.47 mm | 1.48 mm | 1.5 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 281.5 mm | 281.5 mm | 281.5 mm | 283.5 mm | 283.5 mm | 285.5 mm | 285.5 mm |
| Front Center | 592 mm | 592 mm | 593 mm | 605 mm | 611 mm | 618 mm | 627 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 72 mm | 65 mm | 65 mm | 62 mm | 59 mm | 55 mm |
| Stack | 525 mm | 542 mm | 556 mm | 568 mm | 584 mm | 599 mm | 620 mm |
| Reach | 368 mm | 371 mm | 377 mm | 384 mm | 390 mm | 397 mm | 404 mm |
| Top Tube Length | 503 mm | 511 mm | 536 mm | 552 mm | 565 mm | 580 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1009 mm | 1009 mm | 1010 mm | 1022 mm | 1028 mm | 1036 mm | 1045 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 765 mm | 783 mm | 796 mm | 810 mm | 826 mm | 842 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
S-Works CruX is a Specialized Crux model. Specialized released 94 bikes variations of this model so far. You can easily view all of the Specialized Crux bikes models from 2020, here.
Model range prices
Specialized CruX Elite 2020 is the most affordable bike of this model and has a price of 3200$. On the other hand, Specialized S-Works CruX 2020, is the most expensive and costs 9000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cyclocross bikes average price
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9000$. If we compare this with the average Cyclocross bike cost we notice that the price is 347.32% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the S-Works CruX model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works CruX has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
