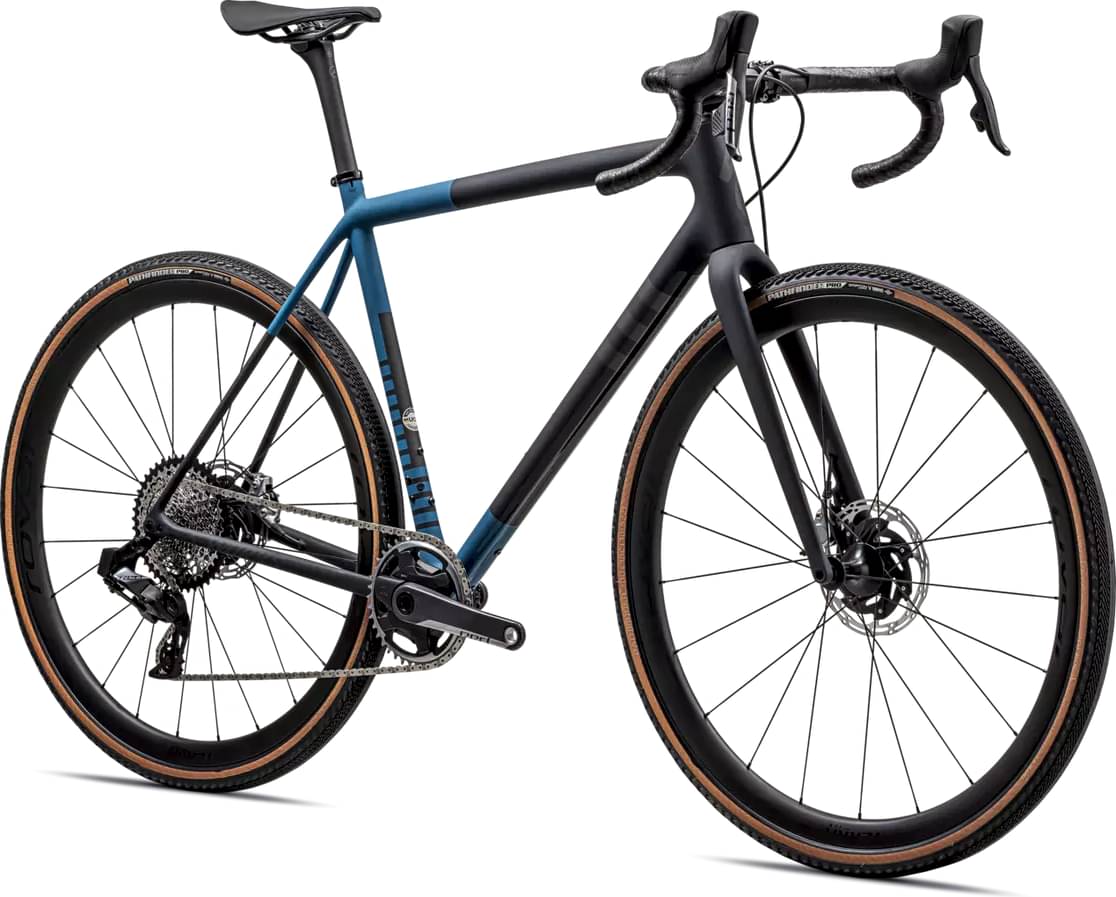

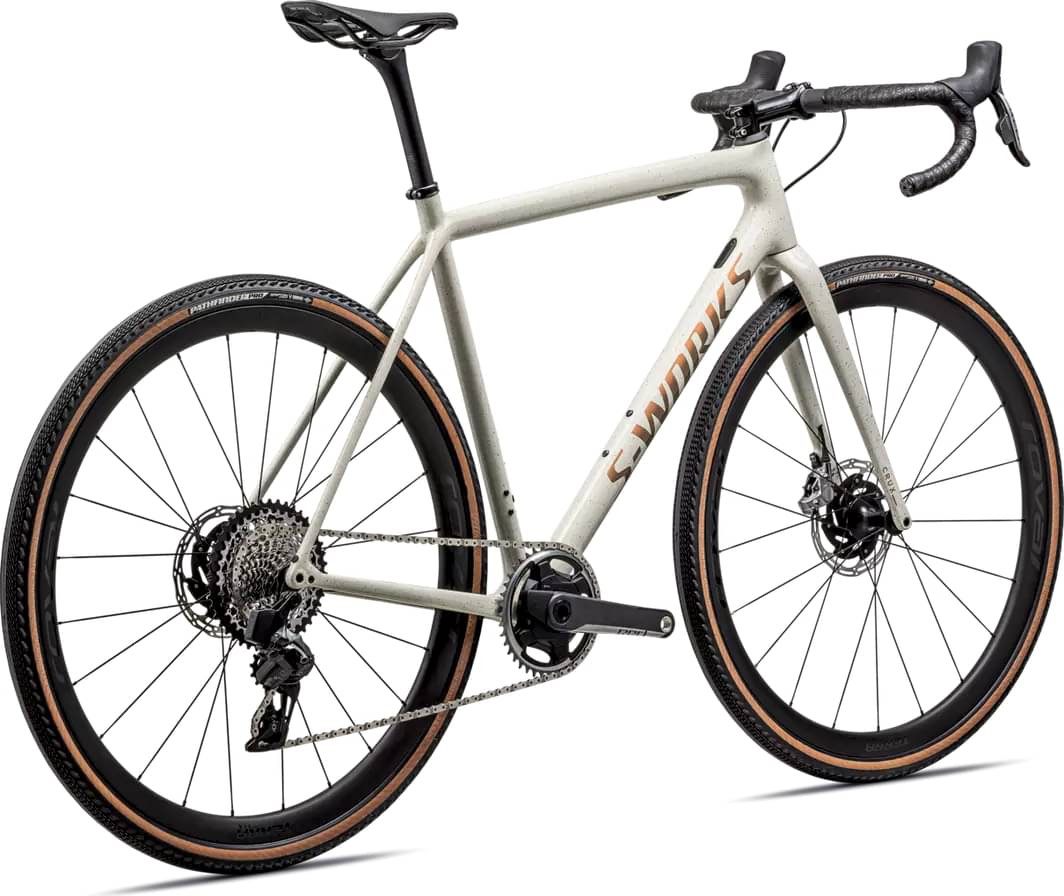

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

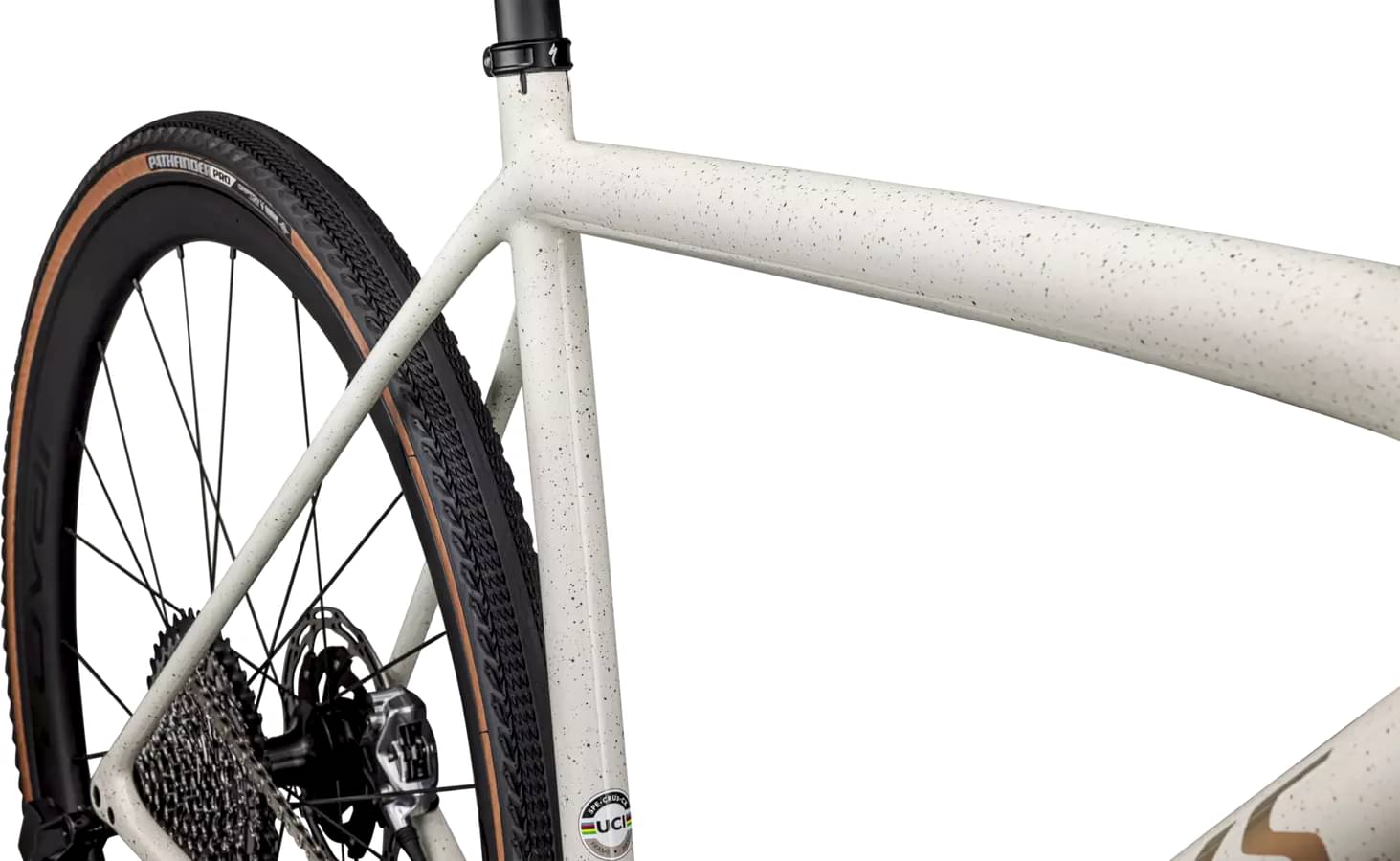

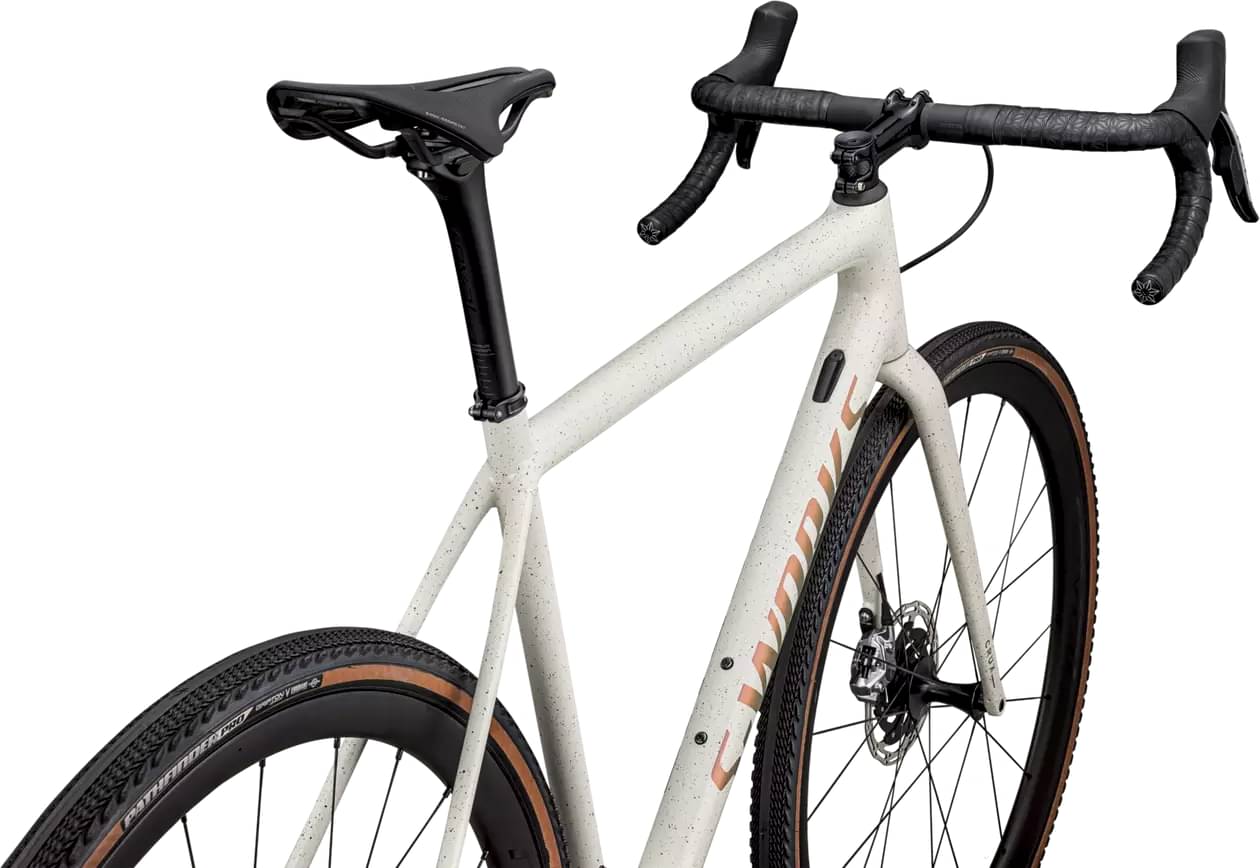

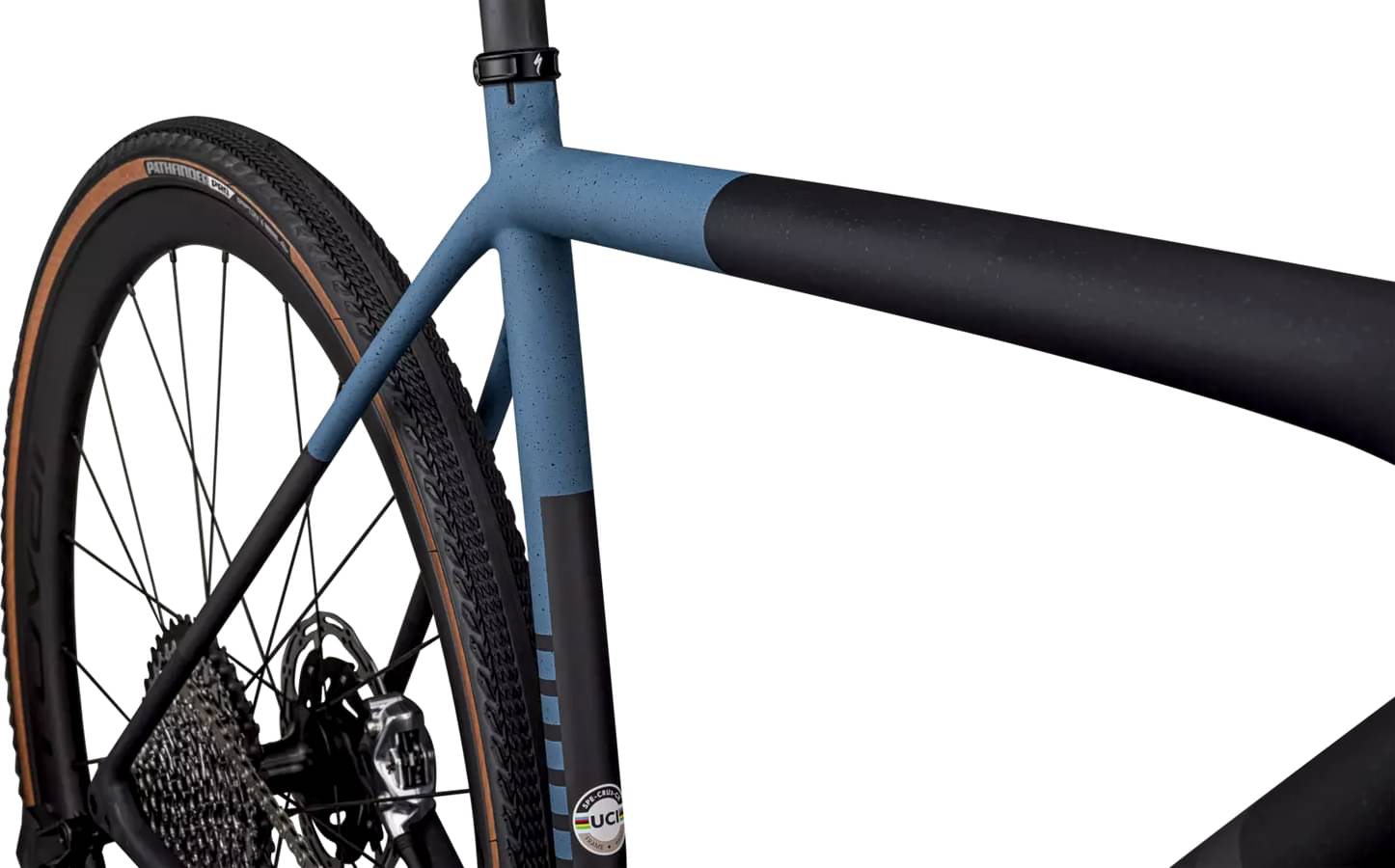

Frame
Frame
S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain
Rear Derailleur
SRAM Red XPLR eTap AXS
Shift Levers
SRAM Red eTap AXS
Cassette
SRAM XPLR, XG-1271, 12-speed, 10-44t
Crank
SRAM Red AXS Power Meter, 40T
Bottom Bracket
SRAM DUB BSA
Chain
SRAM RED 12-speed
Wheels
Rims
Front: Roval Terra CLX I, 25mm internal width, Tubeless ready, 32mm depth, 21h, Roval AFD1, Centerlock, DT Swiss Aerolite spokes, Rear: Roval Terra CLX I, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval AFD2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
Tires
Front: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c, Rear: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c
Brakes
Brakes
Front: SRAM Red eTAP AXS, hydraulic disc, Rear: SRAM Red eTAP AXS, hydraulic disc

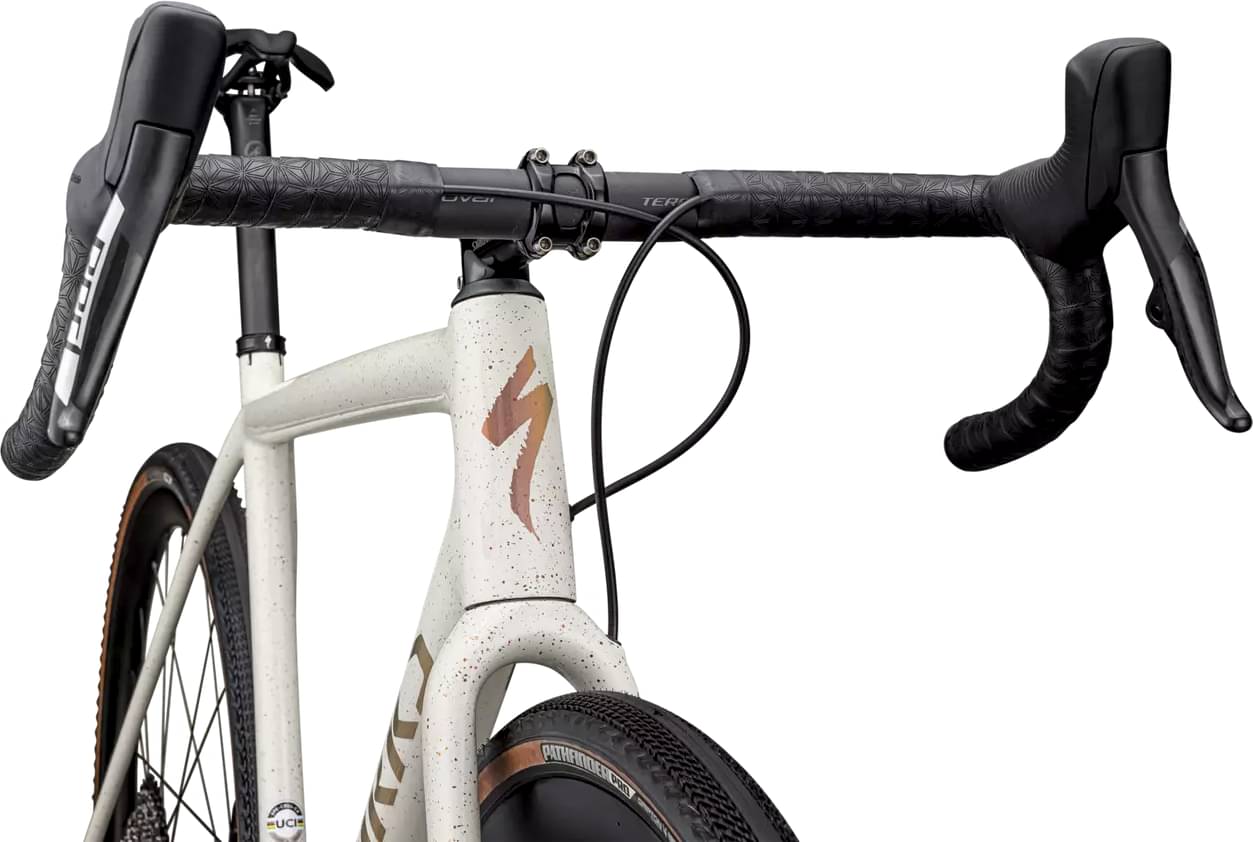

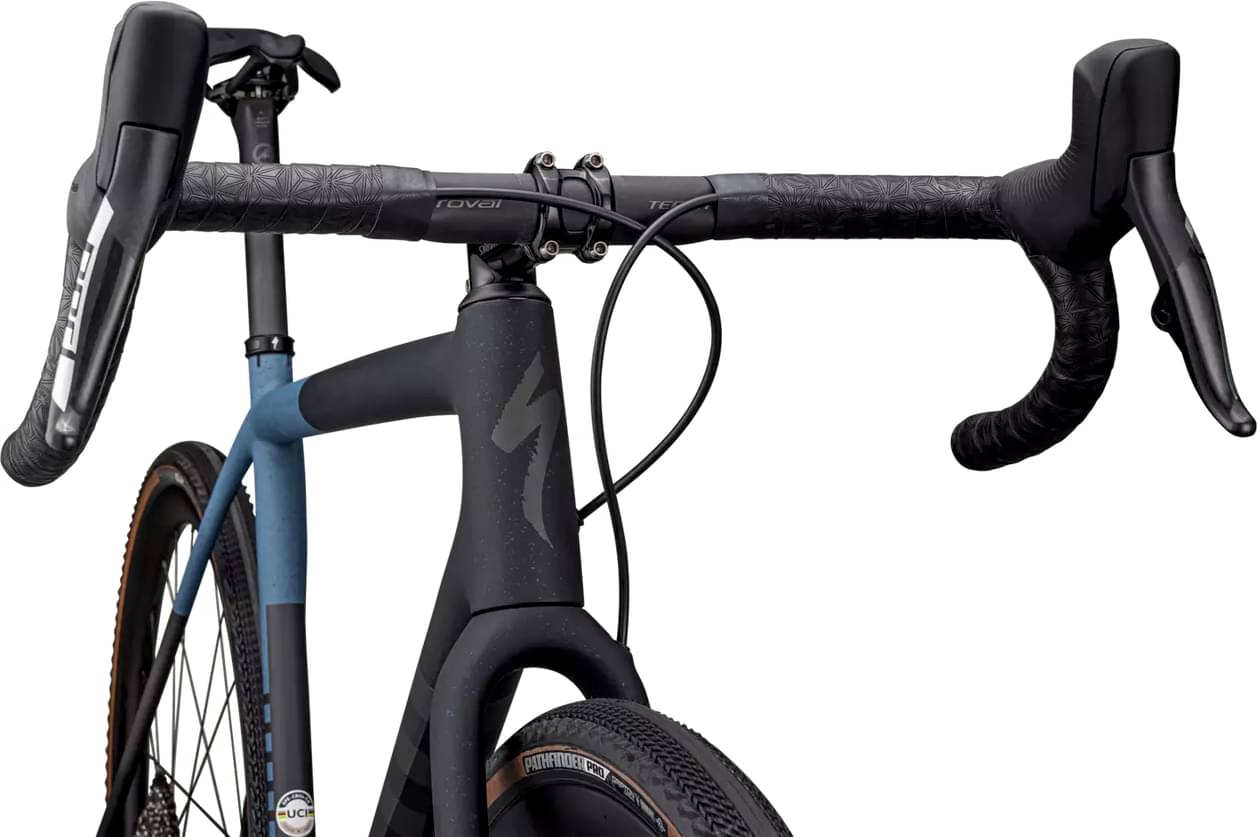

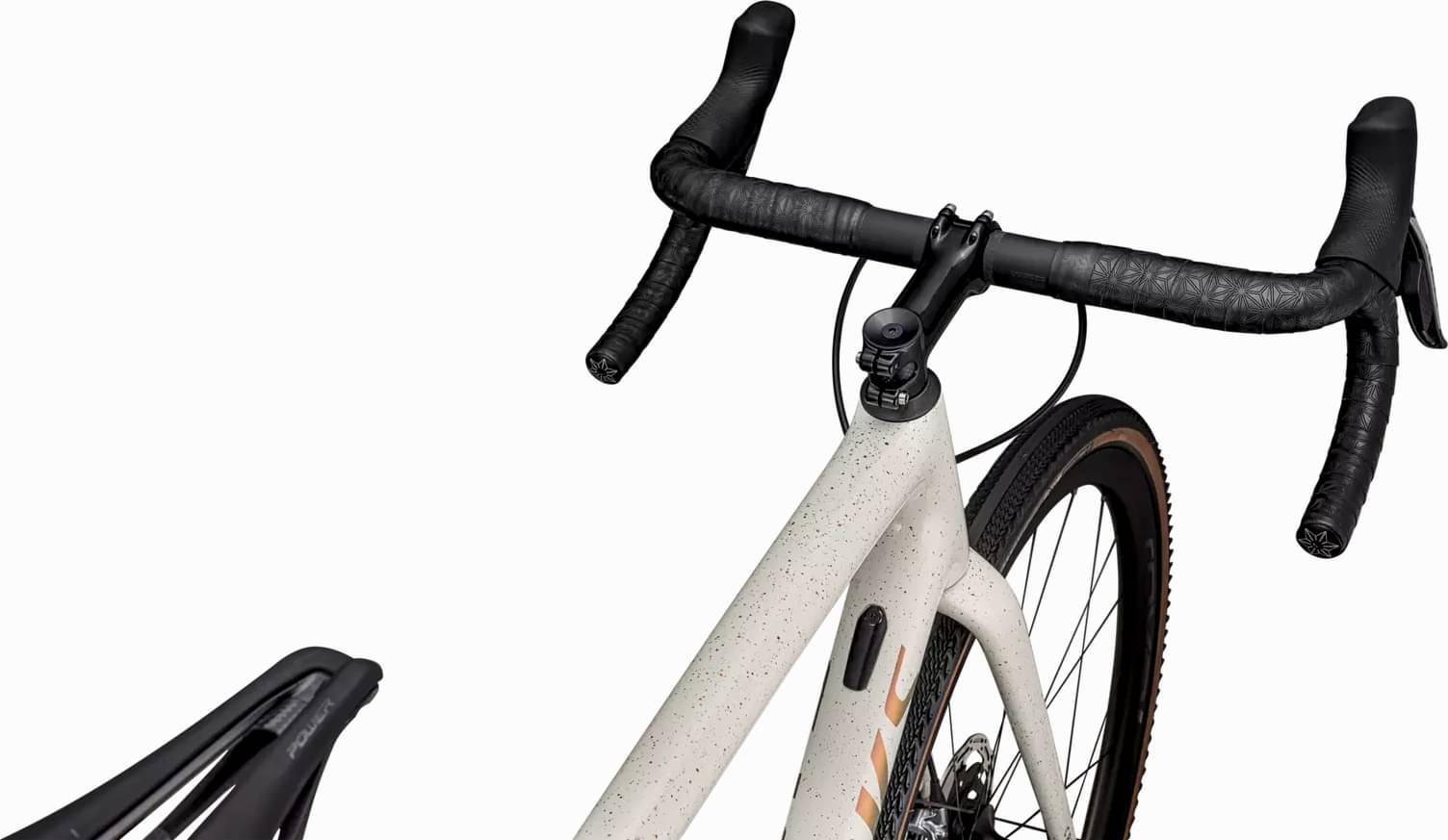

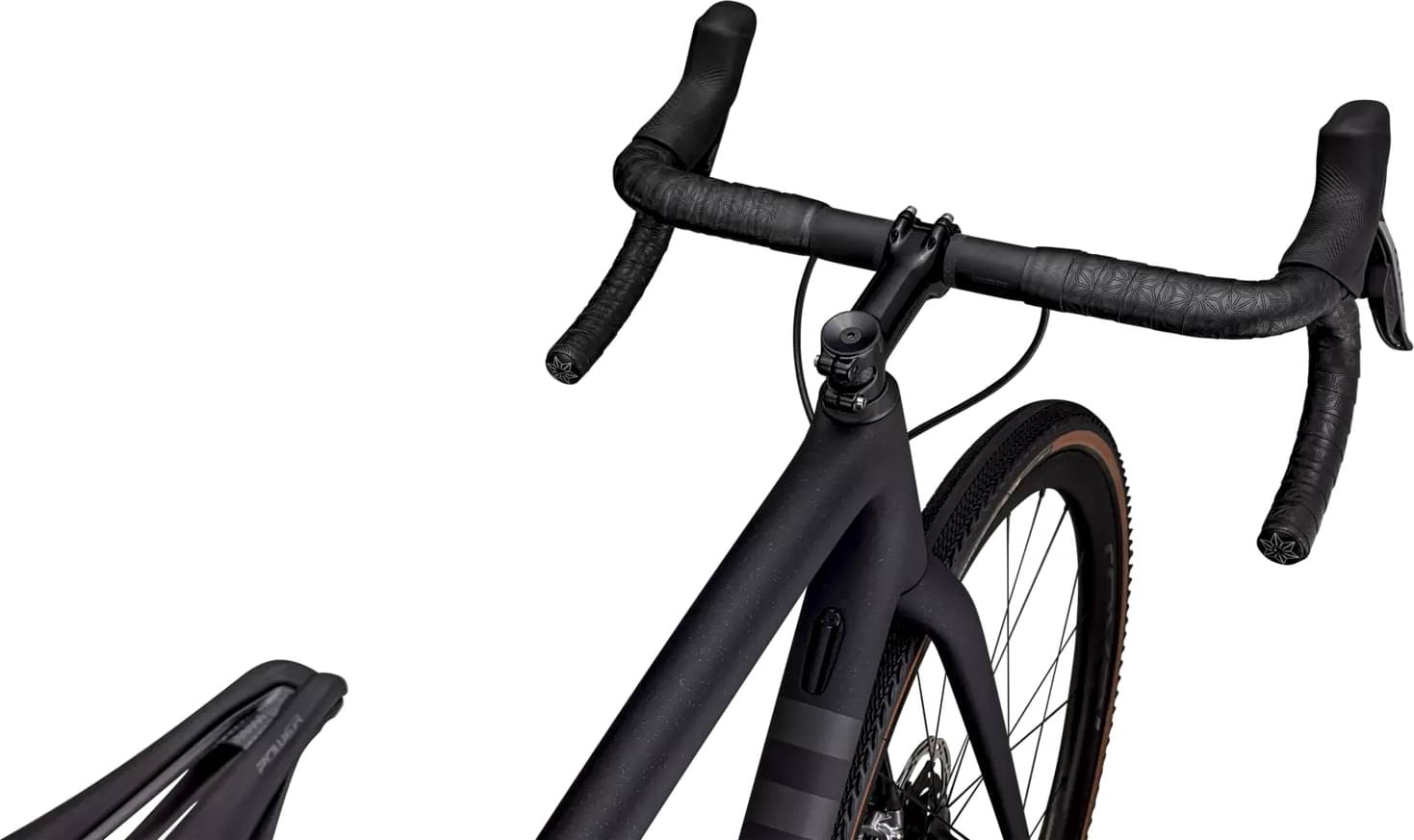

Cockpit
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Handlebar
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Seat
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Seatpost
Roval Alpinist Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 594 mm | 600 mm | 608 mm | 618 mm | 630 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 69 mm | 67 mm | 64 mm | 62 mm | 60 mm |
| Stack | 528 mm | 545 mm | 558 mm | 576 mm | 596 mm | 619 mm |
| Reach | 373 mm | 380 mm | 386 mm | 395 mm | 403 mm | 413 mm |
| Top Tube Length | 510 mm | 537 mm | 547 mm | 566 mm | 580 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 466 mm | 496 mm | 521 mm | 546 mm | 576 mm | 606 mm |
| Head Tube Angle | 70.5 ° | 71.25 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 147 mm | 167 mm | 190 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1006 mm | 1012 mm | 1021 mm | 1031 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 747 mm | 770 mm | 792 mm | 814 mm | 839 mm | 864 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
S-Works Crux is a Specialized Crux model. 94 bikes variations carry this model name so far. Take a sneak peek at all Specialized Crux bikes models from 2023, by clicking here.
Model range prices
Specialized Crux Comp 2023 is the cheapest bike model and costs 4200$. Specialized S-Works Crux 2023 is the most expensive one and costs 12250$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 12250$. Comparing this to the average Gravel bike price, we see that the price is 397.56% higher.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Specialized S-Works Crux 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
