Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset X0 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m front triangle, bonded alloy-insert BB and headtube, 135mm spacing M5 rear triangle, magnesium link, compact race design, ISCG '05 mount, cartridge bearing rear shock mount, rear derailleur protector, 200mm travel
Suspension Fork
RockShox Boxxer World Cup, Mission Control damper, Solo Air spring, alloy steerer, comp and reb adj. w/ bottom out control, 20mm Maxle DH thru-axle, 200mm travel
Rear Shock
Custom Õhlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low speed comp, reb adj. 9.5x3.0"", Spring Rate XS: 297lb, S:343lb, M:388, L:434lb
Drivetrain
Rear Derailleur
SRAM X0, 9-speed, short cage
Shift Levers
SRAM X0, 9-speed, carbon/aluminum trigger, w/ MatchMaker clamp
Cassette
Shimano HG-70 Capreo, 7-speed, Micro 9-20
Crank
SRAM X0 DH, carbon arms, micro-single 32T ring, PF30 spindle, 165mm, E.13 SRS chainguide
Bottom Bracket
SRAM PF30 DH, 83mm shell
Chain
KMC X9 SL, nickel plate, reusable Missing Link
Pedals
Specialized Bennies, 6061 alloy body, sealed cartridge, 4.5mm removable pins
Wheels
Front Hub
Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
Rear Hub
Custom DT Swiss, Capreo compatible, Star Ratchet, 135mm, 32h
Rims
Roval DH 26, alloy disc, 30mm wide w/eyelets, 32h
Spokes
DT Competition Stainless, 3X front/rear 2.0
Tires
Specialized Butcher DH, 26x2.5"", wire bead, soft dual compound, 60 TPI
Brakes
Brakes
Custom Avid Code X0 World Cup, hydraulic disc, Code caliper, organic pad, stainless hardware, 200mm rotor
Brake Levers
Custom Avid Code X0 World Cup, hydraulic disc, X0 lever, tool-less reach
Cockpit
Stem
Specialized Direct Mount, 6061 alloy, 4-bolt, 31.8mm clamp
Handlebar
Renthal Fatbar DH, 30mm rise, aluminum, 780mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, L: XL thickness
Headset
1-1/2"" integrated for 1-1/8"" steerer, cartridge bearings
Seat
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Thomson alloy straight w/ 12-degree clamp, 367mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm |
| Stack | 587 mm | 587 mm | 587 mm |
| Reach | 404 mm | 424 mm | 441 mm |
| Top Tube Length | 554 mm | 574 mm | 591 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 394 mm | 419 mm | 458 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm |
| Wheelbase | 1165 mm | 1185 mm | 1202 mm |
| Bottom Bracket Drop | -10 mm | -10 mm | -10 mm |
| Standover Height | 709 mm | 711 mm | 715 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

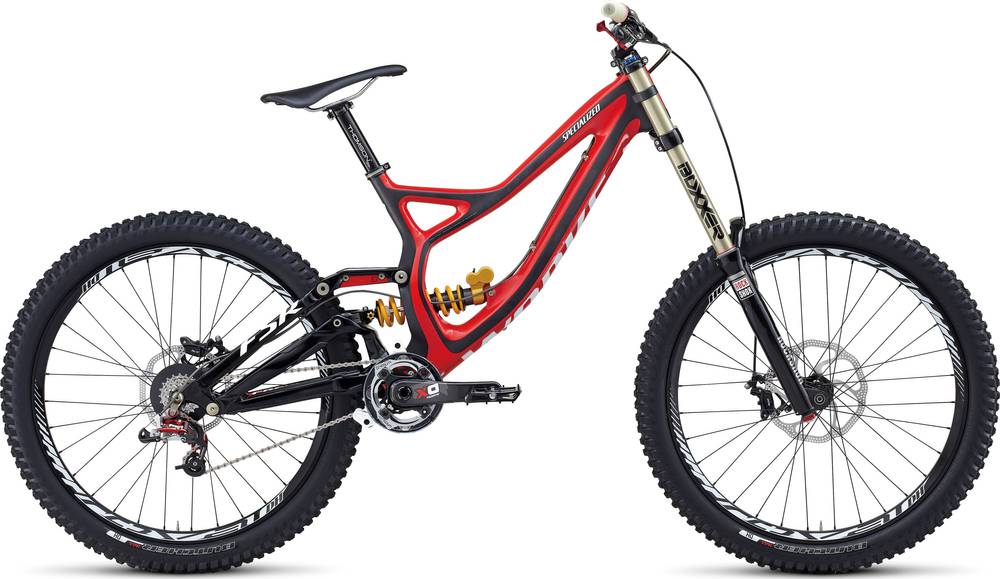

Model Overview
S-Works Demo 8 is a Specialized Demo model. Specialized launched 63 bikes of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Downhill bikes average price
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
S-Works Demo 8 components
Fork
The S-Works Demo 8 comes factory-installed with the RockShox BoXXer fork. This has a travel range of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
The S-Works Demo 8 has a rear shock with a travel of 200mm. The model Custom Õhlins TTX22M is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the S-Works Demo 8 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The S-Works Demo 8 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Specialized S-Works Demo 8 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
