Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset X01 -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon, S3 Geometry, carbon front triangle, full carbon link and rear end, FACT IS construction, PF30 BB, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm travel
Suspension Fork
RockShox Boxxer Team 650b, coil spring, alloy steerer, compression and rebound adjust, 20mm thru-axle, 200mm travel
Rear Shock
Custom Öhlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low speed compression, rebound adjust, 9.5x3.0"", S: 52x297lb, M: 60x343lb, L: 68x388lb, XL: 76x434lb
Drivetrain
Rear Derailleur
SRAM X01 DH Type 2, 7-speed, short cage
Shift Levers
SRAM X0 1 DH, 7-speed
Cassette
SRAM X01 DH, 7-speed, 10-24
Crank
SRAM X0 DH, BB30, carbon arms, triple base, w/ Gamut bashguard
Bottom Bracket
SRAM, BB30 to BSA 83mm adapter
Chain
SRAM PC-1130, 11-speed, w/ PowerLink, nickel finish
Pedals
Specialized Boomslang, 6061 alloy, sealed cartridge bearings
Wheels
Front Hub
Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
Rear Hub
Custom DT Swiss, Star Ratchet, XX1 driver body, 12mm thru-axle, 32h
Rims
Roval 650b, alloy, 24mm inner width, 32h
Spokes
DT Competition, stainless, 2.0mm
Tires
Specialized Butcher DH, 60TPI, wire bead, 650bx2.5""
Brakes
Brakes
SRAM Guide RS DH, metallic pads, Code caliper, 200mm rotor
Brake Levers
SRAM Guide RS DH, alloy lever, reach adjust, w/ cartridge bearing lever pivot
Cockpit
Stem
Specialized P.Series MTB, direct mount, forged alloy, 4-bolt
Handlebar
S-Works DH, carbon, 8-degree backsweep, 6-degree upsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/2"", semi-integrated for 1-1/8"" steerer, loose ball bearings
Seat
Saddle
Body Geometry Phenom Expert, hollow Ti rails, 143mm
Seatpost
Thomson, alloy, straight, 12-degree clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | MD | Long | Long |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.47 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 608 mm | 608 mm | 617 mm | 617 mm |
| Reach | 389 mm | 414 mm | 434 mm | 454 mm |
| Top Tube Length | 571 mm | 582 mm | 607 mm | 627 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1247 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 696 mm | 701 mm | 706 mm | 712 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

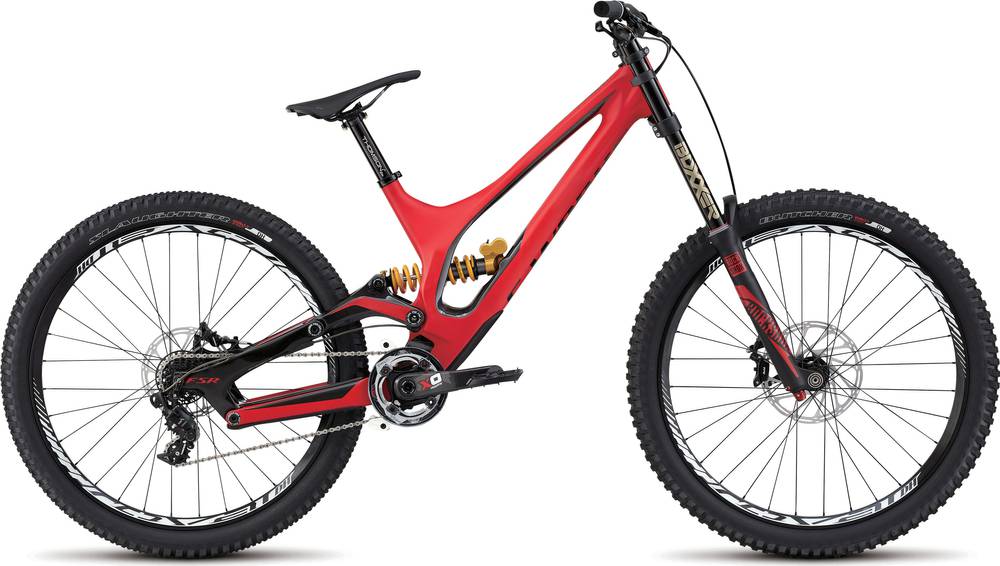

S-Works Demo 8 is part of the Specialized Demo model. 63 bikes variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Demo 8 components
Fork
The fork installed on this bike is the RockShox BoXXer model. The travel on this model is 200mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Specialized S-Works Demo 8 bike has the Custom Öhlins TTX22M model installed, and has a travel of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on S-Works Demo 8 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Works Demo 8 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
