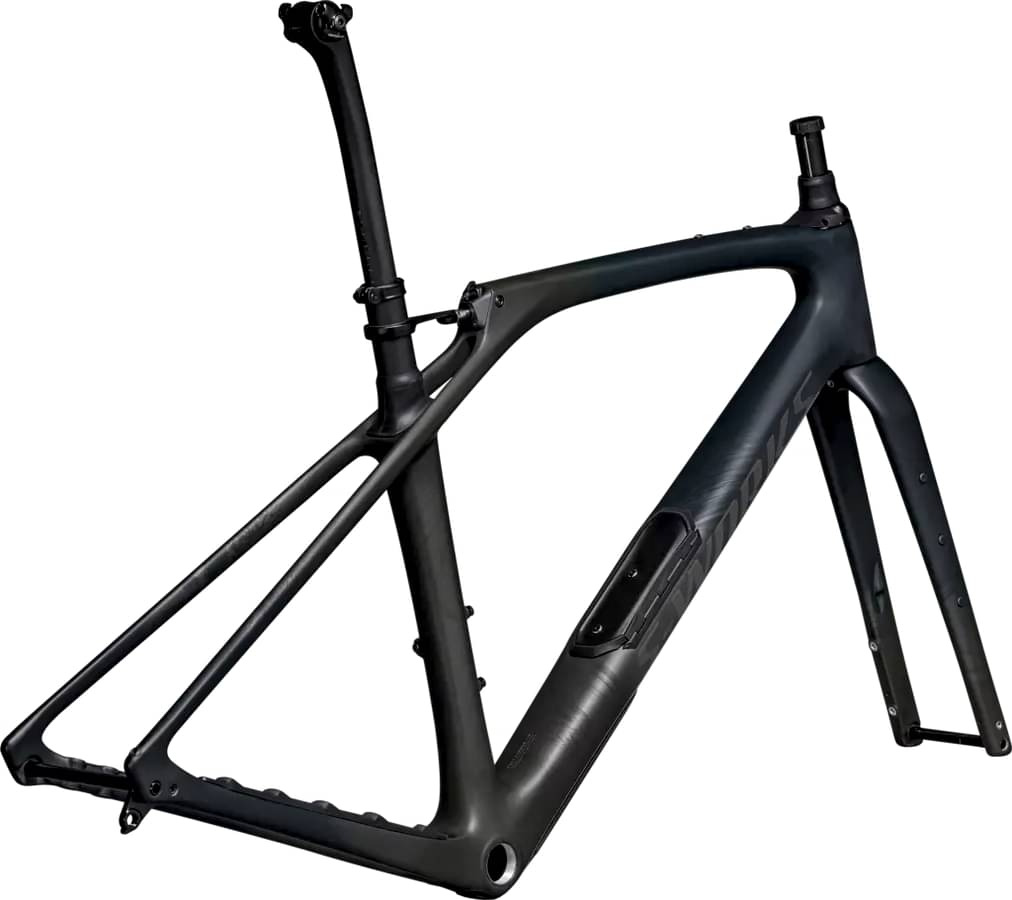

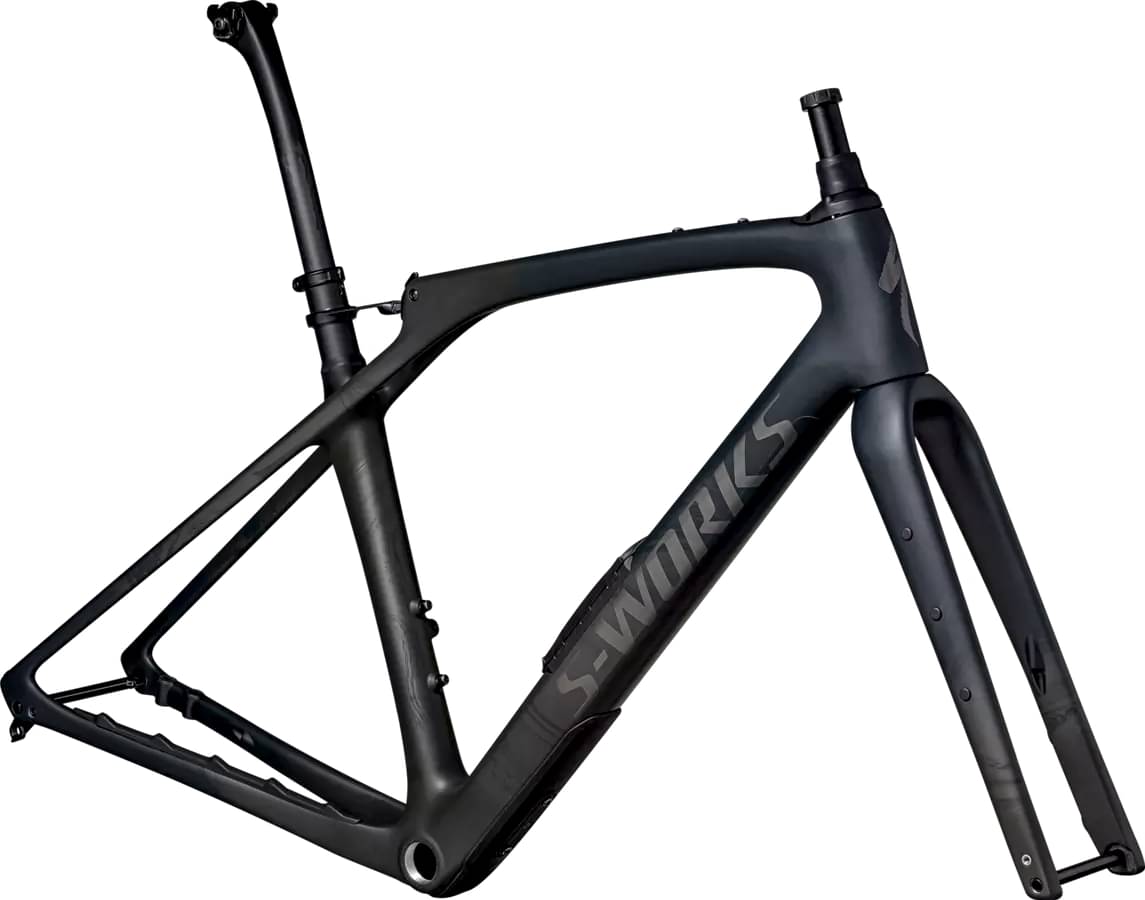

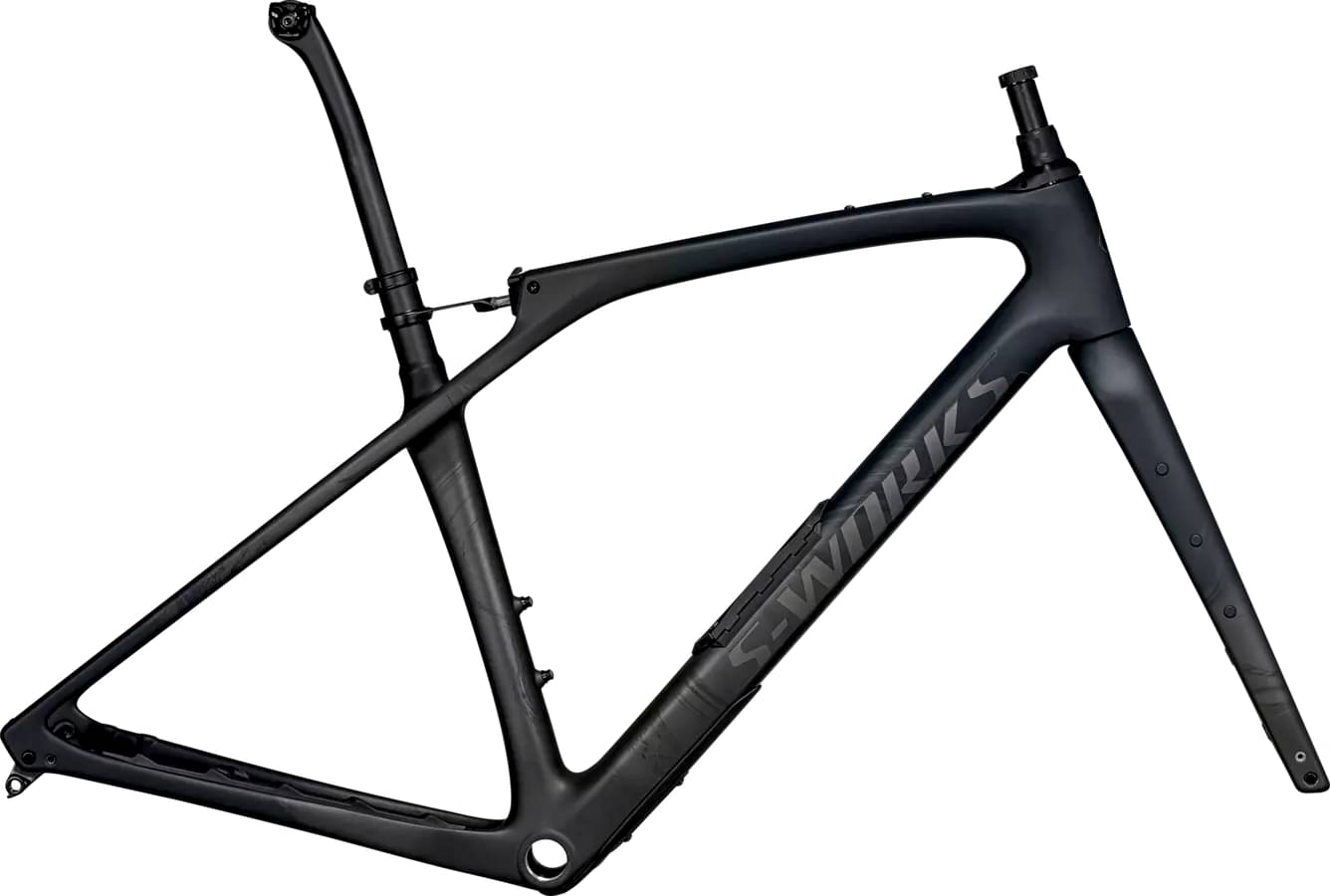

Specialized S-Works Diverge STR Frameset 2022
2022 Road
Estimate price |
6,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 20mm -
Travel Rear 30mm -
Fork Specialized Future Shock 2.0
-
Suspension Full
Sizing
Recommended size guide.
49cm
155cm - 164cm
52cm
161cm - 171cm
54cm
169cm - 178cm
56cm
175cm - 181cm
58cm
179cm - 189cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Suspension Fork
Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Seat
Seatpost
S-Works Carbon Seat Post, 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.53 mm | 1.54 mm | 1.54 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 270 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 607 mm | 612 mm | 619 mm | 629 mm | 645 mm | 663 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 69 mm | 66 mm | 61 mm | 57 mm | 57 mm | 57 mm |
| Stack | 576 mm | 583 mm | 600 mm | 616 mm | 640 mm | 666 mm |
| Reach | 372 mm | 381 mm | 390 mm | 399 mm | 408 mm | 417 mm |
| Top Tube Length | 534 mm | 547 mm | 563 mm | 577 mm | 593 mm | 609 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.25 ° | 71.75 ° | 71.75 ° | 71.75 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm | 155 mm | 182 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1030 mm | 1034 mm | 1041 mm | 1051 mm | 1067 mm | 1085 mm |
| Bottom Bracket Drop | 80 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Standover Height | 711 mm | 737 mm | 760 mm | 785 mm | 811 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 169 cm | 175 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 171 cm | 178 cm | 181 cm | 189 cm | 196 cm |
Model Overview
S-Works Diverge STR Frameset belongs to the Specialized Diverge Str model. Specialized launched 8 frames of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel frames
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2022 and its price was 6000$. Doing a quick comparison, we notice that S-Works Diverge STR Frameset price is 298.67% higher than the average cost of a Gravel frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Specialized Future Shock 2.0 model. The travel on this model is 20mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
S-Works Diverge STR Frameset has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
S-Works Diverge STR Frameset comes in 6 sizes, that range from 155 cm – 196 cm (5.09 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
