Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 155mm -
Fork RockShox Pike RCT3
-
Groupset XX1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT IS-X 11m carbon, 29"" geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel
Suspension Fork
Custom RockShox Pike RCT3 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adj. 15mm thru-axle, 160mm travel
Rear Shock
Custom Cane Creek DB AIR Inline, high/low-speed compression and rebound adj. w/ climb switch, 8.5""x2.25""
Drivetrain
Rear Derailleur
SRAM XX1, 11-speed
Shift Levers
SRAM XX1, 11-speed, trigger
Cassette
SRAM XX1, 11-speed, 10-42
Crank
S-Works FACT carbon, custom XX1 chainring, OSBB, 30T, 104mm BCD spider
Bottom Bracket
Praxis, PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC-XX1, 11-speed, w/ PowerLink
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Roval Traverse, w/ 15/20mm thru-axle, 24h
Rear Hub
Roval Traverse SL 29 142+, XX1 driver body, DT Swiss Star Ratchet, 28h
Rims
Roval Traverse SL Fattie 29, carbon, 30mm inner width, 24/28h
Spokes
DT Swiss Revolution
Brakes
Brakes
SRAM Guide RS Carbon, metallic pads, 200mm Centerline rotor
Brake Levers
SRAM Guide RS Carbon, carbon lever, w/ cartridge bearing, reach adjust
Cockpit
Stem
Syntace F109, 6-degree rise
Handlebar
Specialized XC, mini rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Henge Expert, hollow Ti rails, 143mm
Seatpost
Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust SRL, 30.9mm, 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.41 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm |
| Stack | 626 mm | 635 mm | 649 mm |
| Reach | 419 mm | 439 mm | 459 mm |
| Top Tube Length | 588 mm | 611 mm | 634 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 445 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1153 mm | 1177 mm | 1203 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm |
| Standover Height | 771 mm | 777 mm | 783 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

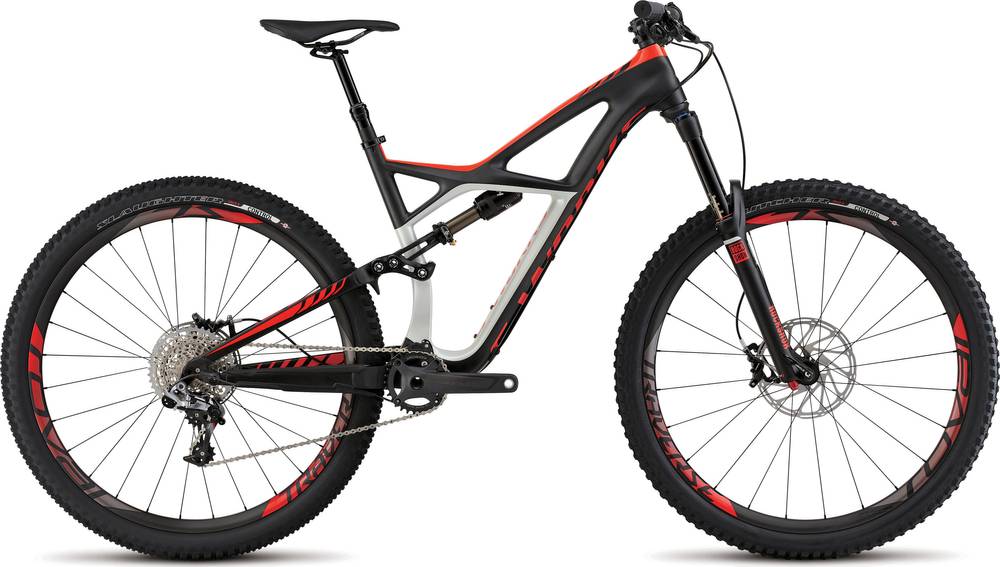

S-Works Enduro 29 belongs to the Specialized Enduro model. Specialized launched 117 bikes of this model so far. Take a sneak peek at all Specialized Enduro bikes models from 2015, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
S-Works Enduro 29 components
Fork
The S-Works Enduro 29 comes factory-installed with the RockShox Pike RCT3 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
S-Works Enduro 29 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
From the factory, it comes with the Custom Cane Creek DB AIR Inline rear shock model, which has a travel of 155mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on S-Works Enduro 29 are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized S-Works Enduro 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Specialized S-Works Enduro 29 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
