Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 26" -
Travel Rear 155mm -
Groupset SRAM -
Suspension Full
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

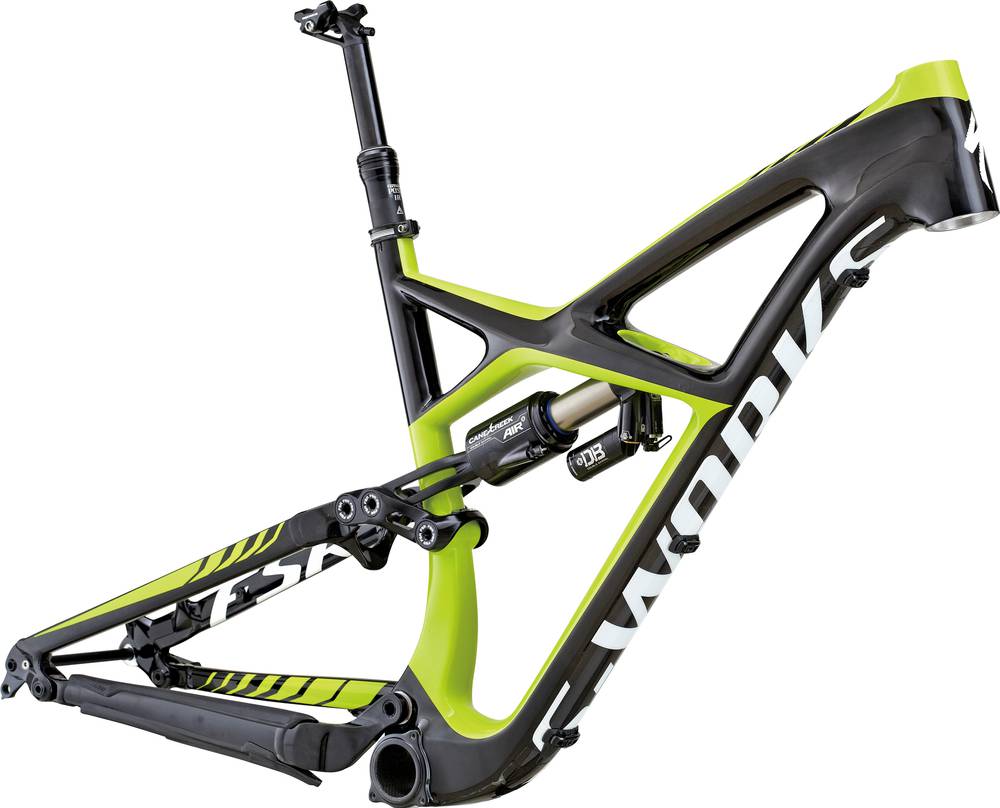

Frame
Frame
FACT IS-X 11m carbon front triangle, 29"" geometry, FACT IS construction, M5 rear triangle, tapered headtube, PF30 BB, ISCG '05 mounts, internal Command Post IR routing, 142+ dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel
Rear Shock
Custom Cane Creek Double Barrel Air, high/low speed comp and reb adj. climb switch, 215.9mm x 57.2mm
Drivetrain
Front Derailleur
SRAM, 10-speed, mid direct mount for Taco Blade, bottom pull (not on frame, in parts box)
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.41 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm |
| Stack | 626 mm | 635 mm | 649 mm |
| Reach | 419 mm | 439 mm | 459 mm |
| Top Tube Length | 588 mm | 611 mm | 634 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 445 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 114 mm | 124 mm | 139 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1153 mm | 1177 mm | 1203 mm |
| Bottom Bracket Drop | -8 mm | -8 mm | -8 mm |
| Standover Height | 771 mm | 777 mm | 783 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
S-Works Enduro 29 Frame belongs to the Specialized Enduro model. There are 117 frames that carry this model name. You can easily view all of the Specialized Enduro frames models from 2014, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro frames
According to our calculations, the average cost of an Enduro frame that is reliable is 1895$. However, this doesn’t mean that if you spend less money on an Enduro frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
S-Works Enduro 29 Frame components
Rear Shock
As for the rear shock, this frame has the Custom Cane Creek Double Barrel Air model, with a travel of 155mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
S-Works Enduro 29 Frame comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
