Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 155mm -
Suspension Full
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT IS-X 11m carbon, 29"" geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel
Rear Shock
Custom Cane Creek DB AIR Inline, high/low-speed compression and rebound adj. w/ climb switch, 8.5""x2.25""
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust lever, 30.9mm, 125mm travel, includes standard/SRL levers
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.41 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm |
| Stack | 626 mm | 635 mm | 649 mm |
| Reach | 419 mm | 439 mm | 459 mm |
| Top Tube Length | 588 mm | 611 mm | 634 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 445 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1153 mm | 1177 mm | 1203 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm |
| Standover Height | 771 mm | 777 mm | 783 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

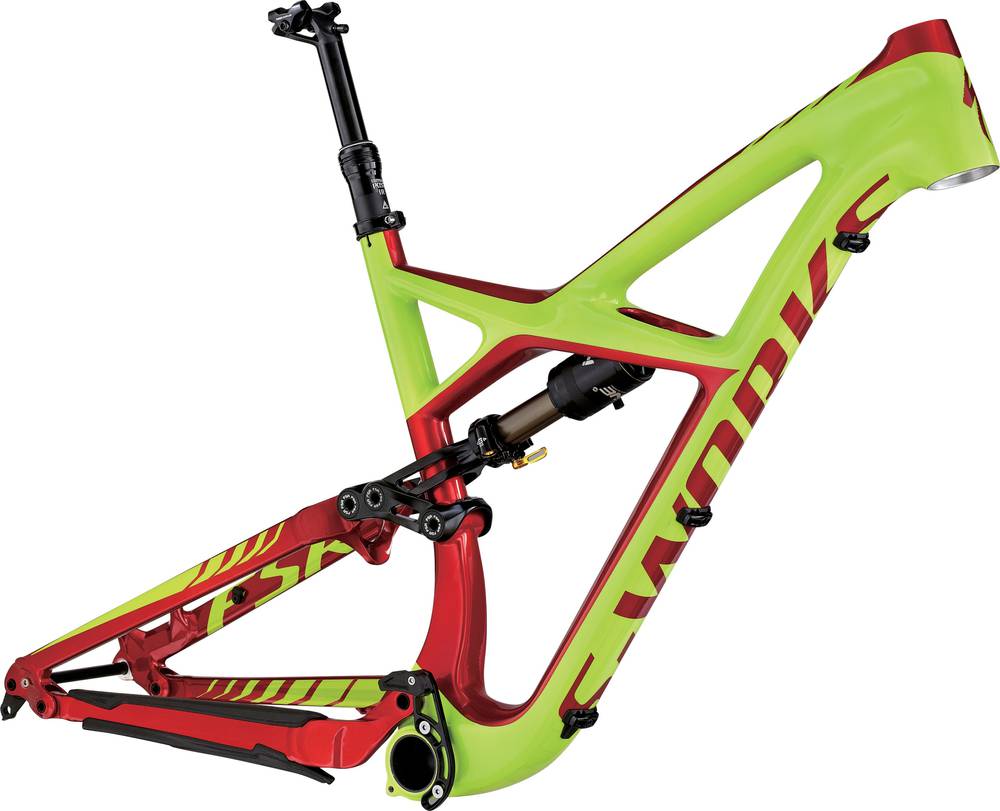

S-Works Enduro 29 Frame is part of the Specialized Enduro model. 117 frames variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro frames
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Enduro 29 Frame components
Rear Shock
From the factory, it comes with the Custom Cane Creek DB AIR Inline rear shock model, which has a travel of 155mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
Specialized S-Works Enduro 29 Frame frame has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Specialized S-Works Enduro 29 Frame comes with a dropper post. Therefore, climbing or descending will be a breeze.
