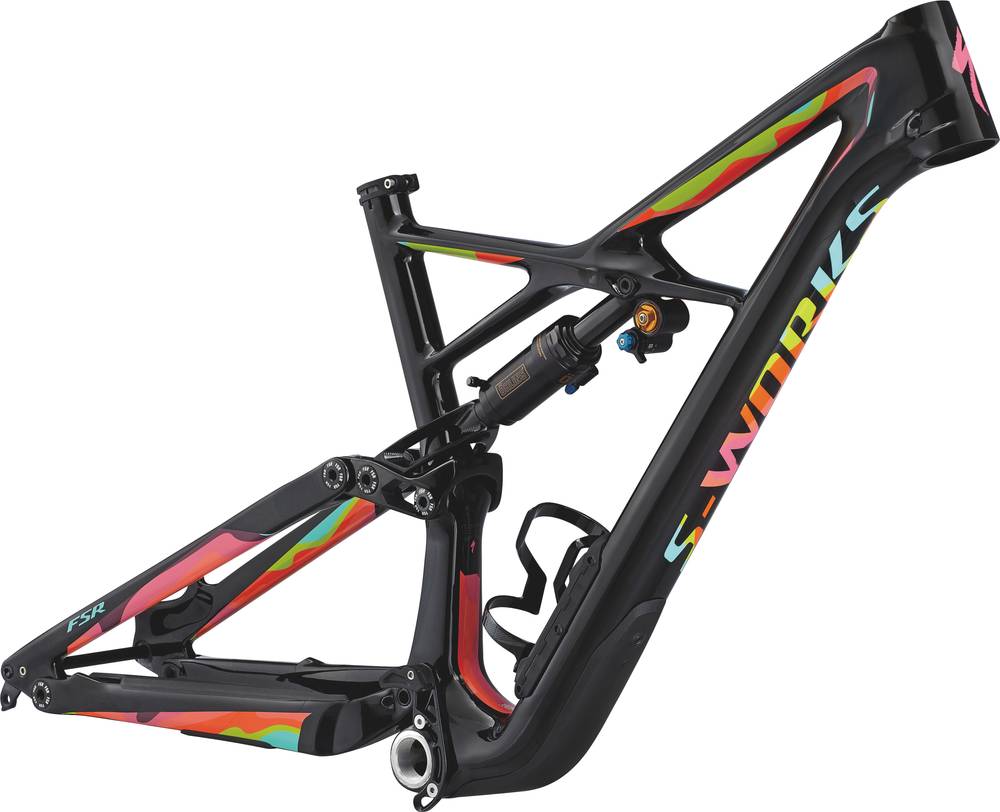

Specialized S-Works Enduro 29 – Limited Edition Frame 2017
2017 Mountain
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m, X-Wing layout, full carbon chassis and rear end, All-Mountain Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, ManFu link, oversized pivot bearings, 12x148mm dropouts, replaceable derailleur hanger, 165mm of travel
Rear Shock
Custom Öhlins STX, Single Tube design, Rx All-Mountain Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 216x57mm
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.42 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 727 mm | 747 mm | 773 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 605 mm | 605 mm | 618 mm | 632 mm |
| Reach | 406 mm | 426 mm | 446 mm | 466 mm |
| Top Tube Length | 551 mm | 571 mm | 596 mm | 621 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 76 ° | 75 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1155 mm | 1175 mm | 1201 mm | 1227 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 753 mm | 762 mm | 777 mm | 792 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
S-Works Enduro 29 – Limited Edition Frame belongs to the Specialized Enduro model. Specialized released 117 frames variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro frames
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
S-Works Enduro 29 – Limited Edition Frame components
Rear Shock
As for the rear shock, this frame has the Custom Öhlins STX model, with a travel of 165mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
