Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 26" -
Travel Rear 150mm -
Groupset XTR -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works Enduro FACT 10m carbon main triangle, Az1 construction, M5 rear triangle, full cartridge bearing pivots, adj. geometry, replaceable derailleur hanger, 150mm travel
Suspension Fork
S-Works Future Shock e150SL, lightweight machined dual crown w/ integrated stem, 150mm travel, rebound, compresion and travel adj. 25mm thru-axle, lightweight machined alloy steerer.
Rear Shock
Specialized AFR Shock w/ Spike valve, air spring, adj. rebound and low speed compression, 7.875x2.25""
Drivetrain
Front Derailleur
Shimano M971 XTR, DMD top swing, dual pull
Wheels
Front Hub
Specialized Hi-Lo disc, 25mm thru-axle, 32h
Cockpit
Stem
S-Works, Future Shock, CNC machined, 31.8 calmp integrated w/ fork
Headset
1-1/8"" Threadless, Campy style upper and lower cartridge bearing
Seat
Seatpost
Specialized Command Post, 100mm Adjustable height, Remote Operated, single-bolt head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 367 mm | 367 mm | 367 mm | 367 mm |
| Top Tube Length | 563 mm | 595 mm | 624 mm | 651 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 421 mm | 444 mm | 483 mm | 533 mm |
| Head Tube Angle | 67.9 ° | 67.9 ° | 67.9 ° | 67.9 ° |
| Head Tube Length | 129 mm | 139 mm | 153 mm | 179 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1119 mm | 1151 mm | 1181 mm | 1209 mm |
| Bottom Bracket Drop | -24 mm | -24 mm | -24 mm | -24 mm |
| Standover Height | 746 mm | 752 mm | 766 mm | 786 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

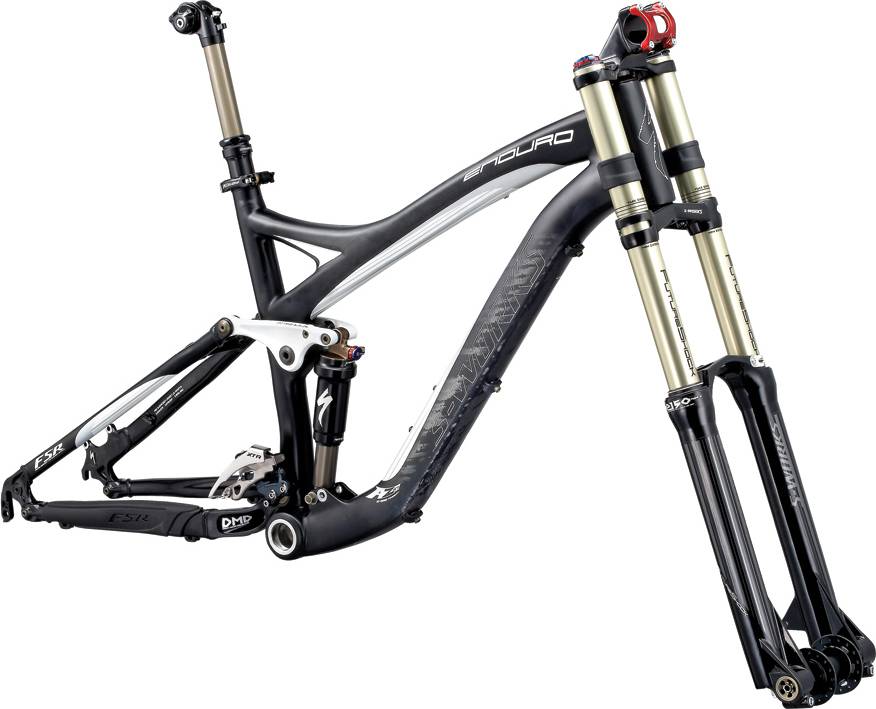

S-Works Enduro SL Carbon Frameset completes the Specialized Enduro model. Specialized launched 117 frames of this model so far. You can easily view all of the Specialized Enduro frames models from 2009, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro frames average price
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Overview of components
Fork material
S-Works Enduro SL Carbon Frameset has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
From the factory, it comes with the Specialized AFR Shock w/ Spike valve rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
S-Works Enduro SL Carbon Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
