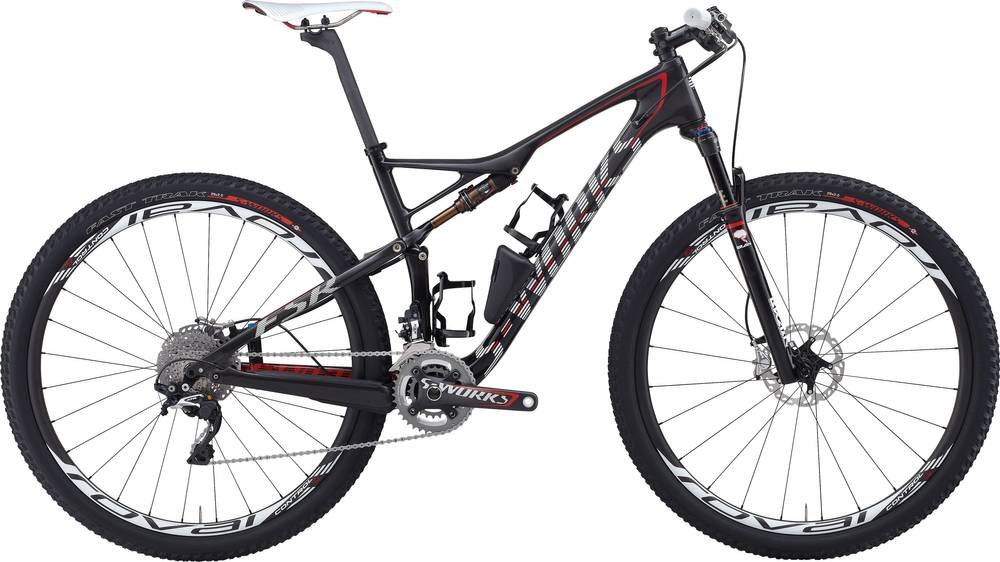

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XTR, SRAM -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon front triangle, SWAT EMT tool cradle, 29"" geometry, FACT IS construction, full FACT carbon rear triangle, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm
Suspension Fork
Custom RockShox SID World Cup 29 Brain, inertia valve damper, Solo Air spring, tapered carbon crown/steerer, top-mount Brain Fade and rebound adj. 15mm thru-axle, 100mm travel
Rear Shock
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve w/ Aramid hose, Brain Fade adjust, 205x53mm, 100mm travel
Drivetrain
Rear Derailleur
Shimano Shadow Plus XTR, 10-speed, GS mid cage
Front Derailleur
Shimano XTR M986, direct mount, down-swing, dual-pull
Shift Levers
Shimano XTR, 10-speed
Cassette
Shimano XTR M980, 10-speed, 11-36
Crank
S-Works OS carbon, integrated 1-piece spider, 10-speed XC double, SRAM rings, S: 170mm, Others: 175mm
Bottom Bracket
PF30, OS press-in bearings, sealed cartridge
Chain
Shimano XTR 981
Wheels
Front Hub
Roval Control SL 29, alloy hub body w/ Labyrinth seal design, 15mm thru-axle, 24h
Rear Hub
Roval Control SL 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 28h
Rims
Roval Control SL 29, carbon disc, 22mm internal width, 24h/28h
Spokes
DT Swiss Revolution, 2.0/1.5/2.0mm stainless
Tires
S-Works Fast Trak, 2Bliss Ready, 29x2.0"", foldable aramid bead, 120 TPI
Brakes
Brakes
Shimano XTR hydraulic disc, post mount, Ti/metal pad, Ice Tech, 160mm rotor
Brake Levers
Shimano XTR 985 hydraulic, w/I-Spec clamps
Cockpit
Stem
Syntace F109, 6-degree rise, 31.8mm clamp
Handlebar
S-Works XC, flat bar, carbon, 700mm wide, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Phenom Expert, hollow TI rails, 143mm
Seatpost
Specialized carbon, single bolt, 27.2mm, S: 350mm, Others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.494 mm | 1.438 mm | 1.395 mm | 1.372 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 637 mm | 667 mm | 695 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 84 mm | 84 mm | 84 mm | 83 mm |
| Stack | 587 mm | 601 mm | 615 mm | 634 mm |
| Reach | 393 mm | 418 mm | 441 mm | 462 mm |
| Top Tube Length | 564 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 73.75 ° | 73.75 ° | 73.75 ° | 73.75 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1082 mm | 1112 mm | 1140 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
S-Works Epic 29 belongs to the Specialized Epic model. There are 161 bikes that carry this model name. You can easily view all of the Specialized Epic bikes models from 2014, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The S-Works Epic 29 comes factory-installed with the RockShox SID fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Rear Shock
The shock that’s installed on this bike is FOX/Specialized remote Mini-Brain w/ AUTOSAG, with a travel distance of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the S-Works Epic 29 model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Works Epic 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Specialized S-Works Epic 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
