Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox
-
Groupset XTR -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 100mm travel
Suspension Fork
Custom RockShox RS-1 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 100mm travel
Rear Shock
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 205x53mm, 100mm travel
Drivetrain
Rear Derailleur
Shimano XTR Shadow Plus, 11-speed, GS mid cage
Front Derailleur
Shimano XTR, direct mount, down swing, dual-pull
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XTR, 11-speed, 11-40
Crank
Shimano XTR, Hollowtech, 11-speed, 36/26
Bottom Bracket
Praxis, PF30, OS press-in bearings, sealed cartridge
Chain
Shimano XTR, 11-speed
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
SRAM Predictive Steering/Torque Tube, 24h
Rear Hub
Roval Control SL 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 28h
Rims
Roval Control SL 29, carbon disc, 22mm internal width, 24h/28h
Spokes
DT Swiss Revolution
Tires
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
Brakes
Brakes
Shimano XTR, hydraulic disc, Ice Tech Ti-metal pad, 180mm Ice Tech rotor
Brake Levers
Shimano XTR, carbon lever, I-spec compatible
Cockpit
Stem
Syntace F109, 6-degree rise
Handlebar
Specialized flat, carbon, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Seat
Saddle
Body Geometry Phenom Pro, carbon rails, 143mm
Seatpost
Command Post XCP, carbon lower tube, 2-position height adjustable, internal routing, 35mm travel, 15mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.494 mm | 1.438 mm | 1.395 mm | 1.372 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 637 mm | 667 mm | 695 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 84 mm | 84 mm | 84 mm | 83 mm |
| Stack | 587 mm | 601 mm | 615 mm | 634 mm |
| Reach | 393 mm | 418 mm | 441 mm | 462 mm |
| Top Tube Length | 564 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 73.75 ° | 73.75 ° | 73.75 ° | 73.75 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1082 mm | 1112 mm | 1140 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

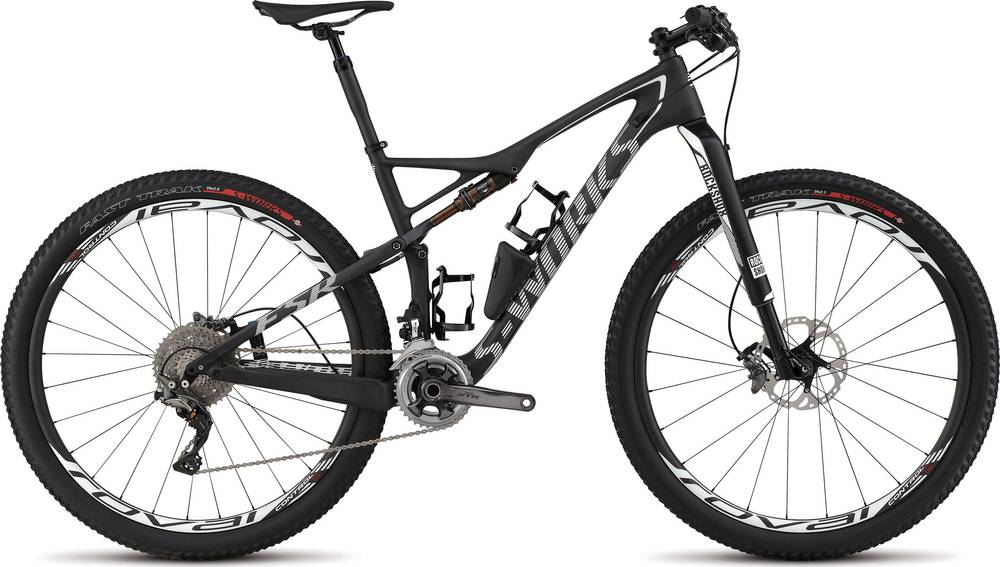

S-Works Epic 29 is a Specialized Epic model. Specialized launched 161 bikes of this model so far. Take a sneak peek at all Specialized Epic bikes models from 2015, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The RockShox is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
S-Works Epic 29 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Rear Shock
The shock that’s installed on this bike is FOX/Specialized remote Mini-Brain w/ AUTOSAG, with a travel distance of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Specialized S-Works Epic 29 2015, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Works Epic 29 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the S-Works Epic 29. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
