Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 100mm -
Fork RockShox SID -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 100mm travel
Suspension Fork
RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 100mm travel
Rear Shock
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 205x53mm, 100mm travel
Drivetrain
Bottom Bracket
PF30, 100mm, press-fit
Cockpit
Headset
1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
Seat
Seatpost
S-Works FACT carbon, 20mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.494 mm | 1.438 mm | 1.395 mm | 1.372 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 637 mm | 667 mm | 695 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 84 mm | 84 mm | 84 mm | 83 mm |
| Stack | 587 mm | 601 mm | 615 mm | 634 mm |
| Reach | 393 mm | 418 mm | 441 mm | 462 mm |
| Top Tube Length | 564 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 73.75 ° | 73.75 ° | 73.75 ° | 73.75 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1082 mm | 1112 mm | 1140 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

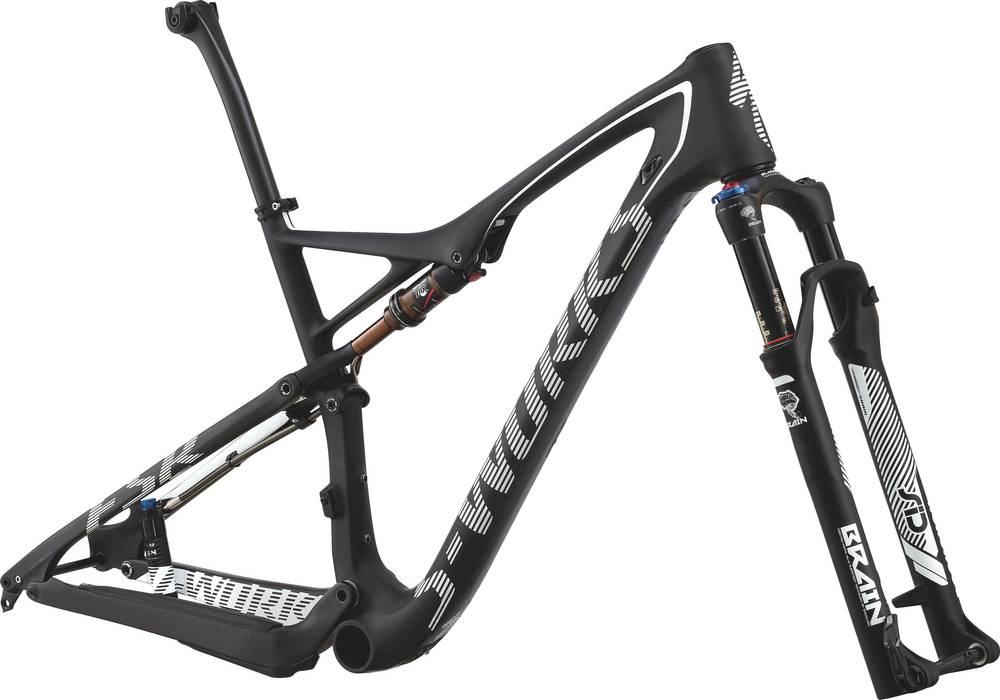

S-Works Epic 29 Frameset is a Specialized Epic model. There are 161 frames that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Epic 29 Frameset components
Fork
The RockShox SID is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Rear Shock
The S-Works Epic 29 Frameset has a rear shock with a travel of 100mm. The model FOX/Specialized remote Mini-Brain w/ AUTOSAG is the one installed in this frame. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
S-Works Epic 29 Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
