Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 95mm -
Travel Rear 95mm -
Fork RockShox SID
-
Groupset XX1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11m carbon, 29"" World Cup Geometry, FACT IS construction, World Cup mega-chainstays, single ring only, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 95mm travel
Suspension Fork
RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 95mm travel
Rear Shock
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 200x48mm, 95mm travel
Drivetrain
Rear Derailleur
SRAM XX1, 11-speed
Shift Levers
SRAM XX1, 11-speed, trigger
Cassette
SRAM XX1, 11-speed, 10-42
Crank
S-Works FACT carbon, custom XX1 chainring, OSBB, 32T, 104mm BCD spider
Bottom Bracket
Praxis, PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC-XX1, 11-speed, w/ PowerLink
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Roval Control SL 29, alloy hub body w/ Labyrinth design, 15mm thru-axle, 24h
Rear Hub
Roval Control SL 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 28h
Rims
Roval Control SL 29, carbon disc, 22mm internal width, 24/28h
Spokes
DT Swiss Revolution
Tires
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.0""
Brakes
Brakes
Magura MT8, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 180mm Storm SL rotor
Cockpit
Stem
Syntace F109, 6-degree rise
Handlebar
Specialized flat, carbon, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Phenom Pro, carbon rails, 143mm
Seatpost
S-Works FACT carbon, 20mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.411 mm | 1.37 mm | 1.355 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 637 mm | 667 mm | 695 mm | 721 mm |
| Rake | 48 mm | 48 mm | 48 mm | 49 mm |
| Trail | 78 mm | 78 mm | 78 mm | 77 mm |
| Stack | 583 mm | 597 mm | 611 mm | 630 mm |
| Reach | 398 mm | 423 mm | 446 mm | 465 mm |
| Top Tube Length | 562 mm | 592 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1073 mm | 1103 mm | 1131 mm | 1157 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

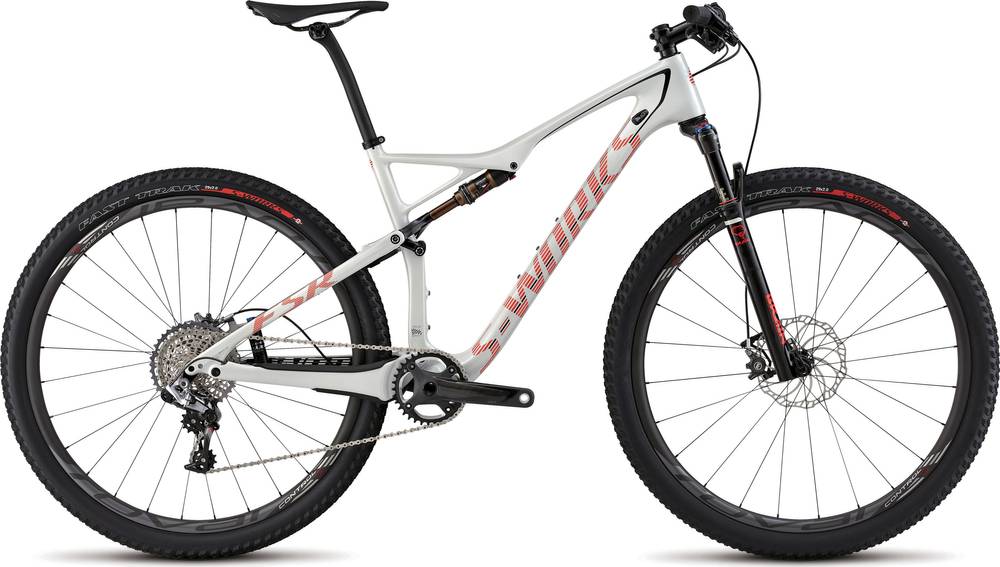

S-Works Epic 29 World Cup is a Specialized Epic model. 161 bikes variations carry this model name so far. You can easily view all of the Specialized Epic bikes models from 2015, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
S-Works Epic 29 World Cup components
Fork
Specialized S-Works Epic 29 World Cup 2015 bike is equipped with the RockShox SID fork, and has 95mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
S-Works Epic 29 World Cup has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Rear Shock
The shock that’s installed on this bike is FOX/Specialized remote Mini-Brain w/ AUTOSAG, with a travel distance of 95mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on S-Works Epic 29 World Cup are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized S-Works Epic 29 World Cup is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
