Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 100mm -
Fork RockShox SID -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon front triangle, 29"" geometry, FACT IS construction, gussetless TT (S/M), FACT carbon seatstays w/carbon non-drive DO and chainstays, tapered HT, carbon PF30 BB, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm
Suspension Fork
Custom RockShox SID World Cup 29 Brain, inertia valve damper, air spring, tapered carbon steerer, top-mount Brain Fade and rebound adj. QR, 100mm travel
Rear Shock
Fox/Specialized remote Mini-Brain w/new 2012 tune, Kashima coating, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length
Drivetrain
Bottom Bracket
S-Works OS, integrated for PF30
Cockpit
Headset
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings, carbon top cap
Seat
Seatpost
S-Works Carbon, single-bolt head, 30.9mm, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.46 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Stack | 580 mm | 599 mm | 608 mm | 627 mm |
| Reach | 380 mm | 409 mm | 432 mm | 452 mm |
| Top Tube Length | 548 mm | 583 mm | 609 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 424 mm | 463 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1069 mm | 1103 mm | 1130 mm | 1157 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 749 mm | 760 mm | 769 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

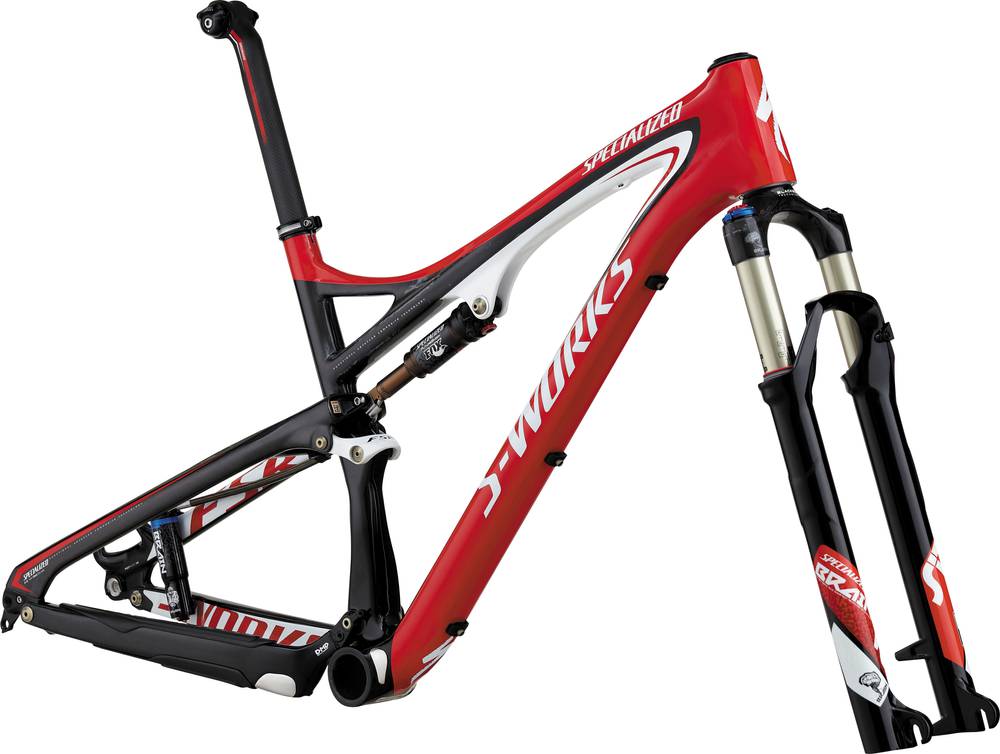

About this model
S-Works Epic Carbon 29 Frameset belongs to the Specialized Epic model. Specialized released 161 frames variations of this model so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry frames
According to our math, the average price for a trustworthy Crosscountry frame is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
S-Works Epic Carbon 29 Frameset components
Fork
Specialized S-Works Epic Carbon 29 Frameset 2012 frame is equipped with the RockShox SID fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
S-Works Epic Carbon 29 Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Rear Shock
As for the rear shock, this frame has the Fox/Specialized remote Mini-Brain w/new 2012 tune model, with a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
