Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Groupset XX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon front triangle, IS construction, FACT carbon seatstays w/carbon drive DO and chainstays, sealed cartridge bearing pivots, 100mm travel, replaceable derailleur hanger
Suspension Fork
Specialized Future Shock e100, inertia valve, 100mm travel, Brain Fade, external rebound adj. single sided air spring and damper, carbon 1-1/8"" to 1.5"" steerer
Rear Shock
Fox/SBC remote Mini-Brain, inertia valve, w/ Brain fade adjust
Drivetrain
Rear Derailleur
SRAM XX, 10-speed, standard cage
Front Derailleur
SRAM XX, DMD style for SBC, top swing, bottom pull
Shift Levers
SRAM XX carbon trigger
Cassette
SRAM XX, 10-speed, 11-36t
Crank
S-Works OS carbon crank, Custom XX spider/rings for SBC, S: 170mm, others: 175mm
Bottom Bracket
S-Works, OS, integrated
Chain
SRAM PC-1090, 10-speed
Pedals
None
Wheels
Front Hub
Roval Control SL Carbon, OS 28mm end caps
Rear Hub
Roval Control SL
Rims
Roval Control SL, disc, 24mm
Spokes
DT Aerolite
Tires
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid XX R, alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, S/M: 160mm, L/XL: 185mm rotor
Brake Levers
Custom Avid XX Hydraulic, tool-less reach adjust, magnesium body, carbon lever
Cockpit
Stem
Syntace F109, 6 degree rise, 31.8mm clamp
Handlebar
S-Works XC Carbon low-rise bar, uni-directional carbon, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
Grips
Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)
Headset
1 1/8"" - 1 1/2"" Threadless, Campy style upper and lower cartridge bearing.
Seat
Saddle
Specialized Phenom SL, Ti rails, thin foam, S/M: 130mm, L/XL: 143mm
Seatpost
S-Works Carbon, 30.9mm, single-bolt head, S/M: 350mm, L/XL: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Stack | 541 mm | 561 mm | 579 mm | 598 mm |
| Reach | 394 mm | 423 mm | 444 mm | 464 mm |
| Top Tube Length | 548 mm | 583 mm | 609 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 444 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 126 mm | 144 mm | 154 mm | 184 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1055 mm | 1092 mm | 1120 mm | 1147 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 720 mm | 741 mm | 751 mm | 769 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

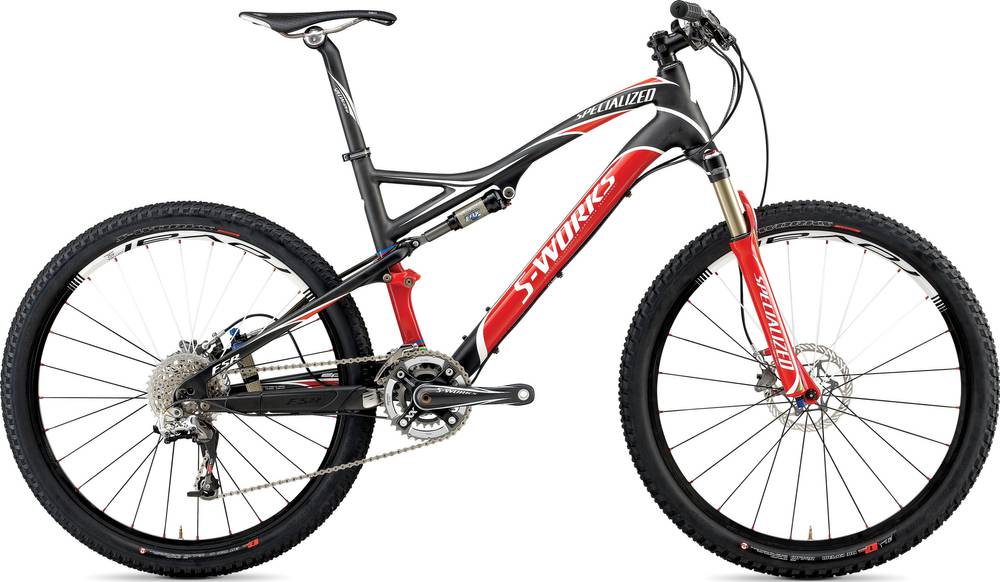

S-Works Epic Carbon Disc is a Specialized Epic model. Specialized launched 161 bikes of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
S-Works Epic Carbon Disc components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Rear Shock
The S-Works Epic Carbon Disc has a rear shock with a travel of 100mm. The model Fox/SBC remote Mini-Brain is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The S-Works Epic Carbon Disc 2010 bike is equipped with 26″ carbon wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Epic Carbon Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
