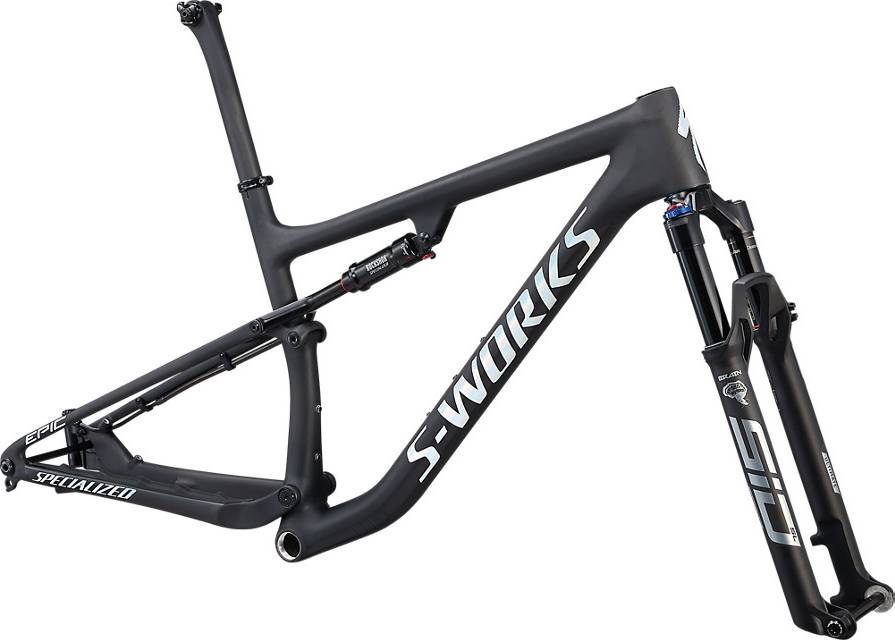

Specialized S-Works Epic Frameset 2020
2020 Mountain
Estimate price |
5,025$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 100mm -
Fork RockShox SID SL Ultimate -
Suspension Full
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 12m Carbon, Modern XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Suspension Fork
RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel
Rear Shock
RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm
Drivetrain
Bottom Bracket
BSA, 100mm, threaded
Seat
Seatpost
S-Works FACT carbon, 10mm setback, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.42 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 314 mm | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 663 mm | 687 mm | 719 mm | 750 mm | 782 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 106 mm | 106 mm | 106 mm | 106 mm | 106 mm |
| Stack | 588 mm | 578 mm | 583 mm | 597 mm | 615 mm |
| Reach | 382 mm | 407 mm | 437 mm | 462 mm | 487 mm |
| Seat Tube Angle | 76.5 ° | 75.8 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 375 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1082 mm | 1108 mm | 1140 mm | 1171 mm | 1203 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 732 mm | 755 mm | 758 mm | 768 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
S-Works Epic Frameset is a Specialized Epic model. Specialized launched 161 frames of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Specialized S-Works Epic Frameset – Troy Lee Designs LTD 2020 is the most affordable frame of this model and has a price of 5000$. On the other hand, Specialized S-Works Epic Frameset 2020, is the most expensive and costs 5025$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry frames
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2020 and its price was 5025$. In conclusion, this frame price is 197.51% more expensive than the price of the average Crosscountry frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
S-Works Epic Frameset components
Fork
The S-Works Epic Frameset comes factory-installed with the RockShox SID SL Ultimate fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox-Specialized BRAIN rear shock model, which has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Specialized S-Works Epic Frameset frame has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
