Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 90mm -
Travel Rear 90mm -
Fork RockShox
-
Groupset XX1 -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, S: 90mm travel, M/L: 100mm
Suspension Fork
Custom RockShox RS-1 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, S: 90mm travel, M/L: 100mm
Rear Shock
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 200x48mm, 95mm travel
Drivetrain
Rear Derailleur
SRAM XX1, 11-speed
Shift Levers
SRAM XX1, 11-speed, trigger
Cassette
SRAM XX1, 11-speed, 10-42
Crank
SRAM XX1, carbon, PF30, 76mm BCD spider
Bottom Bracket
PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC-XX1, 11-speed, w/ PowerLink
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Roval Control SL 29, 15mm thru-axle, 24h
Rear Hub
Roval Control SL 29 142+ XX1, 12mm thru-axle, 28h
Rims
Roval Control SL 29 142+ XX1, carbon, 22mm inner width, 24/28h
Spokes
DT Swiss Revolution
Tires
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
Brakes
Brakes
Magura MT8, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 180mm Storm SL rotor
Cockpit
Stem
Syntace F109, 6-degree rise
Handlebar
Specialized flat, carbon, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, lock-on, half-waffle, S/M: regular thickness, L: XL thickness
Seat
Saddle
Body Geometry Women's Myth Expert, hollow Ti rails, 155mm
Seatpost
S-Works FACT carbon, 20mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.39 mm |
| Bottom Bracket Height | 322 mm | 327 mm | 332 mm |
| Front Center | 631 mm | 664 mm | 692 mm |
| Rake | 45 mm | 48 mm | 51 mm |
| Trail | 85 mm | 82 mm | 79 mm |
| Stack | 588 mm | 597 mm | 606 mm |
| Reach | 387 mm | 414 mm | 437 mm |
| Top Tube Length | 545 mm | 574 mm | 600 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 382 mm | 420 mm | 445 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1075 mm | 1107 mm | 1134 mm |
| Bottom Bracket Drop | 40 mm | 45 mm | 50 mm |
| Standover Height | 725 mm | 734 mm | 743 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

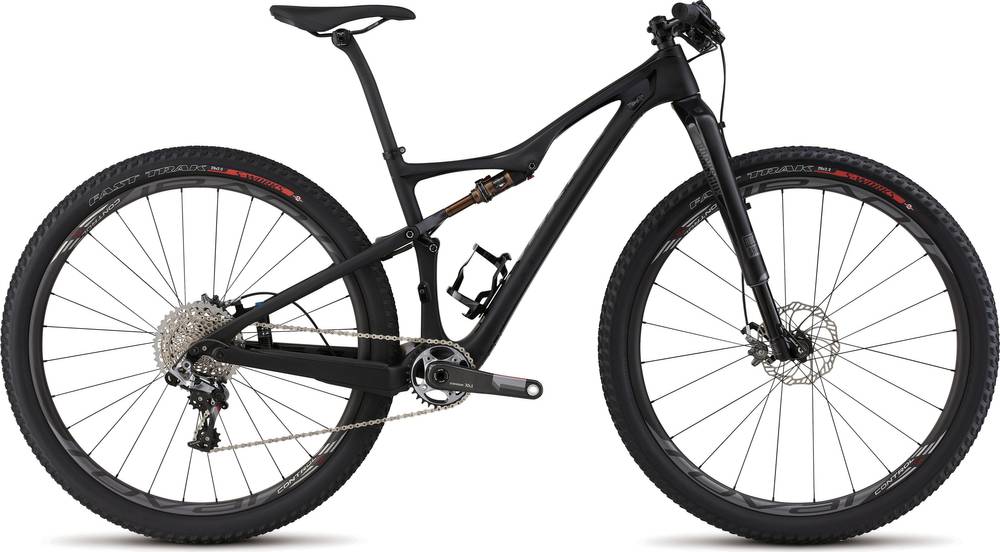

S-Works Era 29 belongs to the Specialized Era model. Specialized launched 20 bikes of this model so far. Take a sneak peek at all Specialized Era bikes models from 2015, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
S-Works Era 29 components
Fork
The RockShox is included from the factory. It has a travel distance of 90mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
S-Works Era 29 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Rear Shock
The shock that’s installed on this bike is FOX/Specialized remote Mini-Brain w/ AUTOSAG, with a travel distance of 90mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the S-Works Era 29 model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Specialized S-Works Era 29 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
