Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Groupset XTR -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 10m carbon front triangle, w/ Women's specific IS construction, Designs for Women geometry, FACT carbon seatstays and chainstays, sealed cartridge bearing pivots, 100mm travel, replaceable derailleur hanger
Suspension Fork
Specialized Future Shock e100, 100mm travel, Brain Fade, external rebound adj. single sided air spring and damper, carbon 1-1/8th to 1.5"" steerer, women's tuned
Rear Shock
Specialized AFR remote mini, BRAIN inertia valve w/ BRAIN fade and rebound adj. Era tuned
Drivetrain
Rear Derailleur
Shimano RD-M972 Top-normal XTR Shadow, long-carbon cage
Front Derailleur
Shimano M971 XTR, DMD top swing, dual pull
Shift Levers
SL-M970 XTR, trigger
Cassette
Shimano M970 XTR Ti, 9-speed, 11-34t
Crank
S-Works OS carbon crank, S/M: 170mm, L: 175mm
Bottom Bracket
S-Works, OS, integrated
Chain
Shimano XTR, 9-speed
Pedals
None
Wheels
Front Hub
Roval Controle SL XC Carbon, OS, 28mm axle caps, straight pull
Rear Hub
Roval SL, disc, straight pull
Rims
Roval Controle SL, disc, 24mm
Spokes
DT Swiss Aerolite 2.0/1.6mm, black, alloy nipples
Tires
S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Ultimate SL Mag, alloy backed organic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 160mm rotor
Brake Levers
Custom Avid Ultimate SL Mag Hydraulic
Cockpit
Stem
Syntace F119 OS stem, 31.8mm bar clamp
Handlebar
Specialized XC Carbon, OS 31.8 rise bar, 620mm wide, 6x8 degree w/SBC logo
Grips
Specialized thin lock on grip
Headset
1-1/8"" Threadless, Campy style upper and 1.5"" lower cartridge bearing
Seat
Saddle
Specialized Women's Jett, Ti rails rails, 143mm
Seatpost
S-Works Carbon 30.9mm, single-bolt head, S: 300mm M: 350mm, L: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm |
| Top Tube Length | 534 mm | 559 mm | 589 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 126 mm | 143 mm | 154 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1043 mm | 1070 mm | 1101 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 698 mm | 715 mm | 723 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

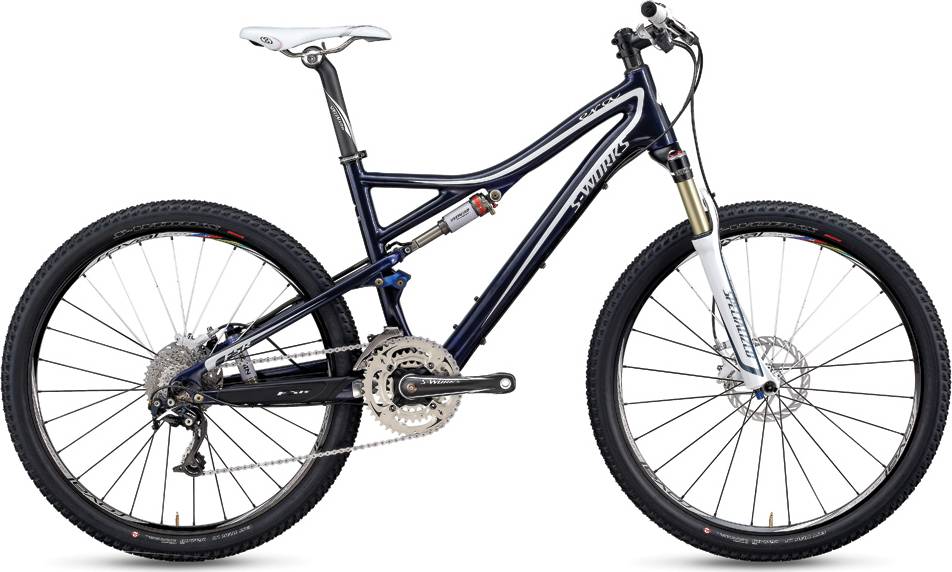

S-Works Era FSR Carbon is a Specialized Era model. Specialized released 20 bikes variations of this model so far. Take a sneak peek at all Specialized Era bikes models from 2009, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
S-Works Era FSR Carbon components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Rear Shock
The S-Works Era FSR Carbon has a rear shock with a travel of 100mm. The model Specialized AFR remote mini is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Specialized S-Works Era FSR Carbon 2009, has a 26″ carbon model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Specialized S-Works Era FSR Carbon bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
