Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 10r carbon, Az1 construction, Designs for Women compact design, Zertz inserts, OS BB
Suspension Fork
S-Works FACT carbon, monocoque construction, full carbon legs, crown and steerer w/ Zertz inserts
Drivetrain
Rear Derailleur
SRAM Red
Front Derailleur
SRAM Red, 34.9mm clamp
Shift Levers
SRAM Red Double Tap
Cassette
SRAM OG1090, 10-speed, 11-28t
Crank
S-Works FACT carbon, integrated oversize design
Bottom Bracket
S-Works oversize integrated
Chain
SRAM 1090R, 10-speed
Pedals
Silver cage, black body, w/ toe clip and strap
Wheels
Front Hub
Mavic Ksyrium SL
Rear Hub
Mavic Ksyrium SL
Rims
Mavic Ksyrium SL
Spokes
Zicral, bladed
Tires
S-Works All Condition, 700x23c 127TPI w/ aramid bead, Flak Jacket
Brakes
Brakes
SRAM Red
Brake Levers
SRAM Red Double Tap
Cockpit
Stem
S-Works Pro-Set, 3D forged, carbon/alloy face plate w/ Ti bolts, carbon top cap, 4-position adjustable
Handlebar
Specialized Ruby SL, FACT carbon Women's handlebar, short-reach drop, ergonomic shaping, 31.8mm
Headset
S-Works Campy style, 1-1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
Seat
Saddle
Body Geometry Ruby Women's, carbon reinfoced base, hollow Ti rails, microfiber cover
Seatpost
S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 56cm | 54cm | 51cm | 48cm | 44cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 0.91 mm | 0.89 mm | 0.87 mm | 0.85 mm | 0.8 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 265 mm | 265 mm |
| Stack | 491 mm | 471 mm | 441 mm | 421 mm | 391 mm |
| Reach | 539 mm | 528 mm | 509 mm | 497 mm | 487 mm |
| Seat Tube Angle | 59 ° | 59 ° | 59 ° | 62 ° | 66 ° |
| Seat Tube Length | 408 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Head Tube Length | 172.5 mm | 170 mm | 170 mm | 167.5 mm | 167.5 mm |
| Wheelbase | 411 mm | 391 mm | 391 mm | 371 mm | 371 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 71 mm | 70 mm |
| Standover Height | 91 mm | 91 mm | mm | mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

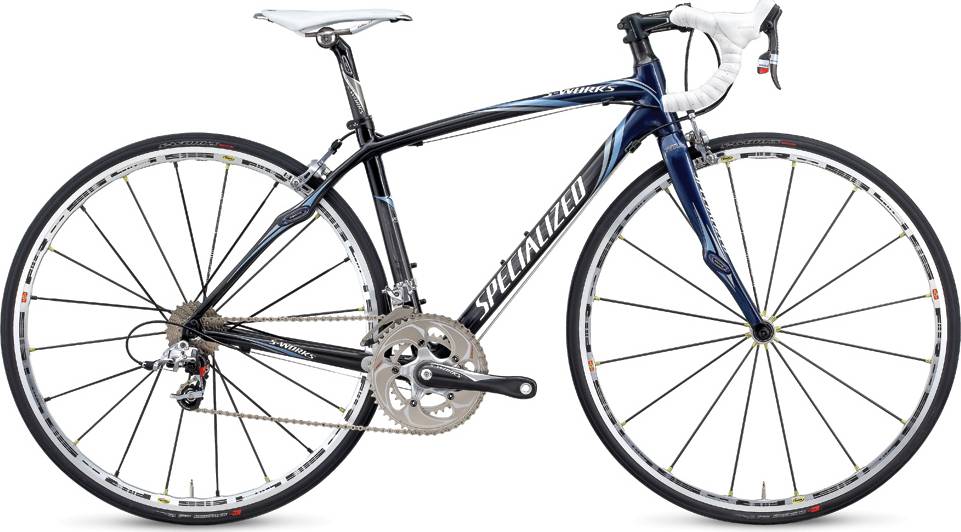

S-Works Ruby SL SRAM belongs to the Specialized Ruby model. 78 bikes variations carry this model name so far. Take a sneak peek at all Specialized Ruby bikes models from 2009, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
S-Works Ruby SL SRAM has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Specialized S-Works Ruby SL SRAM 2009, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Ruby SL SRAM has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
