Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works Shiv FACT IS 11r carbon, FACT IS construction, crosswind-optimized airfoils, 1-1/8"" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System
Suspension Fork
Specialized FACT Aero carbon monocoque, carbon steerer and crown for 1-1/8"" bearing
Drivetrain
Crank
S-Works FACT carbon
Bottom Bracket
OS integrated, sealed bearings
Brakes
Brakes
Magura RT8TT caliper hydraulic
Brake Levers
Magura RT8TT caliper hydraulic brakes including adaptors and brake pads
Cockpit
Stem
Shiv Aerostem
Handlebar
Specialized Carbon Aerobar
Headset
1-1/8"" upper and lower, hybrid cartridge bearings
Seat
Seatpost
Shiv Aero FACT carbon, 12.5mm/37.5mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.34 mm | 1.33 mm | 1.33 mm | 1.32 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 573 mm | 589 mm | 608 mm | 631 mm | 659 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 61 mm | 63 mm | 60 mm | 60 mm |
| Stack | 498 mm | 518 mm | 543 mm | 568 mm | 593 mm |
| Reach | 368 mm | 388 mm | 408 mm | 428 mm | 448 mm |
| Top Tube Length | 484 mm | 507 mm | 533 mm | 560 mm | 585 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 505 mm | 525 mm | 551 mm | 577 mm | 603 mm |
| Head Tube Angle | 70.25 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 99 mm | 115 mm | 139 mm | 163 mm | 189 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 960 mm | 976 mm | 995 mm | 1019 mm | 1046 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 755 mm | 775 mm | 800 mm | 825 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

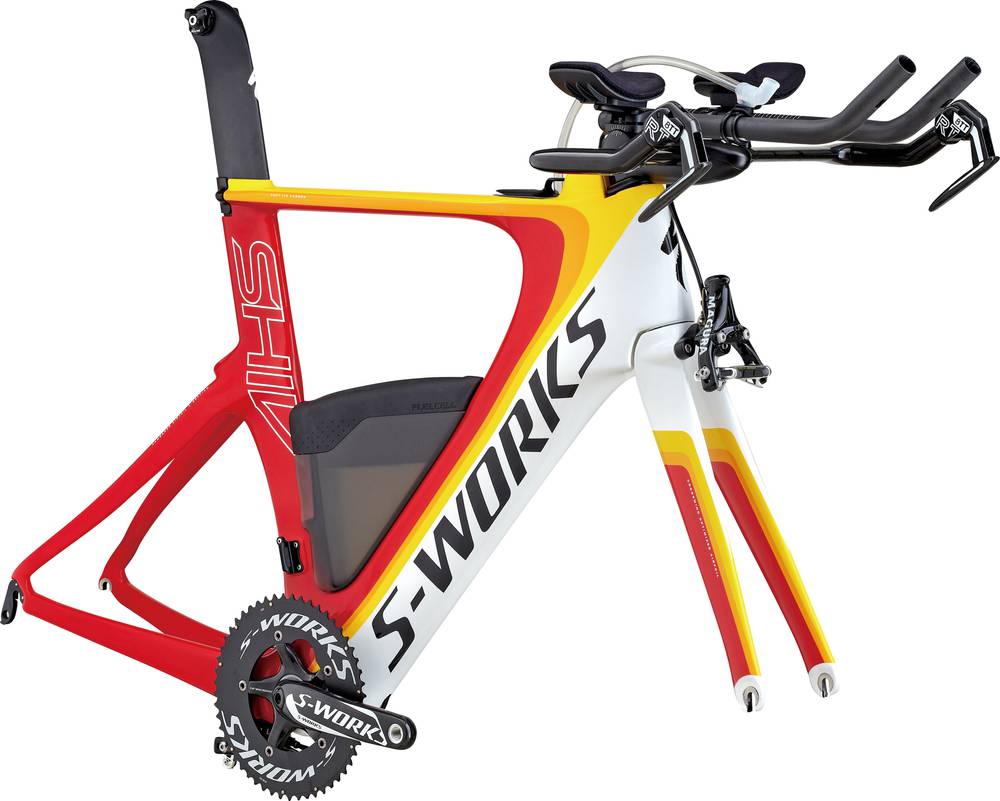

S-Works Shiv Module is part of the Specialized Shiv model. Specialized released 73 frames variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Triathlon frames average price
According to our math, the average price for a trustworthy Triathlon frame is 3089$. However, even though the average price of a Triathlon frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
S-Works Shiv Module has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This frame is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
