Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, OSBB, horizontal dropouts, integrated brakes
Suspension Fork
S-Works FACT carbon, full monocoque, UCI-legal
Drivetrain
Bottom Bracket
OSBB, CeramicSpeed bearings
Brakes
Brakes
Specialized Aero, center pull
Cockpit
Stem
Specialized Integrated carbon, UCI-legal
Handlebar
Specialized carbon Aerobar, UCI-legal
Seat
Seatpost
Specialized Shiv Team, straight/forward offset, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.29 mm | 1.24 mm | 1.19 mm | 1.14 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 578 mm | 587 mm | 601 mm | 616 mm | 636 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 62 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Stack | 490 mm | 504 mm | 504 mm | 504 mm | 504 mm |
| Reach | 377 mm | 392 mm | 407 mm | 422 mm | 442 mm |
| Top Tube Length | 512 mm | 531 mm | 541 mm | 549 mm | 565 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 75 ° | 75.75 ° | 76.25 ° |
| Seat Tube Length | 504 mm | 565 mm | 563 mm | 561 mm | 560 mm |
| Head Tube Angle | 70.75 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 392 mm | 392 mm | 392 mm | 392 mm | 392 mm |
| Wheelbase | 958 mm | 967 mm | 982 mm | 997 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 747 mm | 808 mm | 808 mm | 808 mm | 808 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

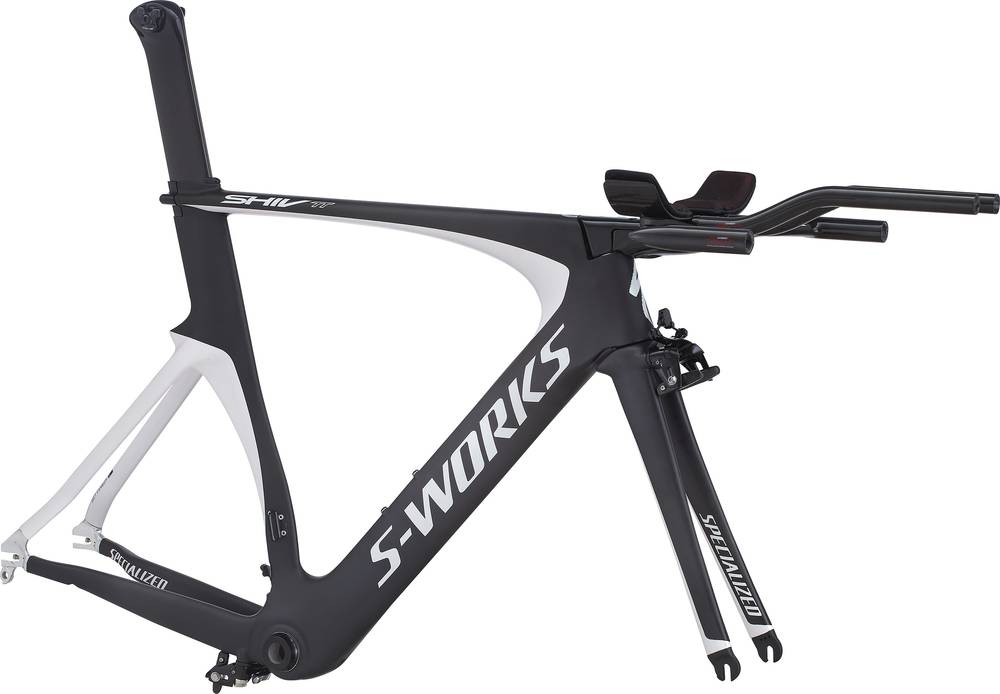

S-Works Shiv TT Module belongs to the Specialized Shiv model. There are 73 frames that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Triathlon frames average price
If you want an acceptable Triathlon frame you should know that the average price is 3089$. However, even though the average price of a Triathlon frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Shiv TT Module has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
S-Works Shiv TT Module comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
