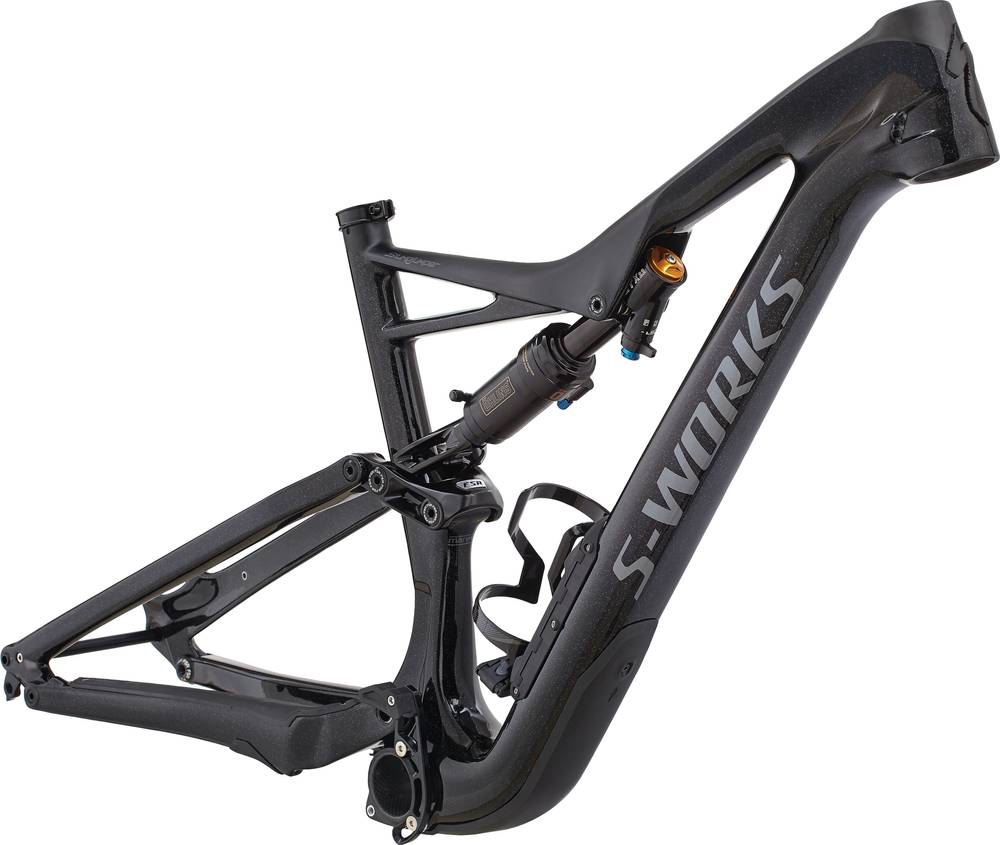

Specialized S-Works Stumpjumper 27.5 Frame 2018
2018 Mountain
Estimate price |
3,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11m, full carbon chassis and rear end, 27.5 Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Rear Shock
Custom Öhlins STX, Single-Tube design, Rx Trail Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 197x48mm
Drivetrain
Bottom Bracket
PF30, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 677 mm | 706 mm | 738 mm | 764 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 586 mm | 595 mm | 604 mm | 613 mm |
| Reach | 384 mm | 410 mm | 438 mm | 460 mm |
| Top Tube Length | 554 mm | 583 mm | 614 mm | 642 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 95 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1092 mm | 1122 mm | 1154 mm | 1180 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 738 mm | 744 mm | 758 mm | 760 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
S-Works Stumpjumper 27.5 Frame is part of the Specialized Stumpjumper model. There are 352 frames that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Specialized Men’s S-Works Stumpjumper 29 Frame 2018 is the most economical model, with a starting price of 3000$. Specialized S-Works Stumpjumper 27.5 Frame 2018 on the other hand costs 3500$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro frames
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3500$. Comparing the average cost of an Enduro frame to this one, you will see that S-Works Stumpjumper 27.5 Frame price is 84.7% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
From the factory, it comes with the Custom Öhlins STX rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
Specialized S-Works Stumpjumper 27.5 Frame frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
