Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Fork RockShox SID -
Suspension Hardtail
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger
Suspension Fork
RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, S: 80mm travel, Others: 90mm
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
S-Works FACT carbon, 20mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 624 mm | 655 mm | 682 mm | 708 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 80 mm | 79 mm | 80 mm | 80 mm |
| Stack | 586 mm | 604 mm | 619 mm | 633 mm |
| Reach | 384 mm | 408 mm | 431 mm | 452 mm |
| Top Tube Length | 559 mm | 587 mm | 614 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 434 mm | 470 mm | 505 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1041 mm | 1072 mm | 1099 mm | 1125 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 754 mm | 793 mm | 820 mm | 843 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

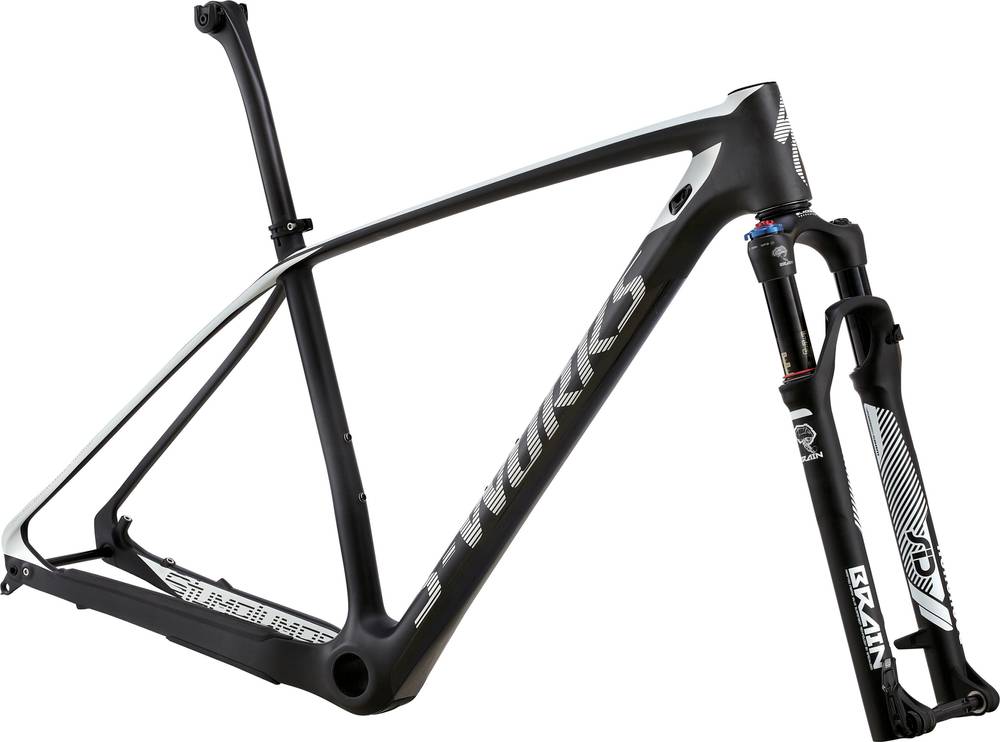

Model Overview
S-Works Stumpjumper 29 Frameset completes the Specialized Stumpjumper model. 352 frames variations carry this model name so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail frames
Our math shows that the average cost of a dependable Trail frame is 1736$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
S-Works Stumpjumper 29 Frameset components
Fork
The S-Works Stumpjumper 29 Frameset comes factory-installed with the RockShox SID fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
S-Works Stumpjumper 29 Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
