Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 90mm -
Fork RockShox SID
-
Groupset XX -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon, FACT IS construction, tapered HT, carbon PF30 BB, DMD, hollow carbon dropouts, replaceable alloy derailleur hanger
Suspension Fork
Custom RockShox SID World Cup Brain, inertia valve damper, air spring, tapered carbon steerer, top-mount Brain Fade adj. and rebound adj. QR, 90mm travel
Drivetrain
Rear Derailleur
SRAM XX, 10-speed, mid cage
Front Derailleur
SRAM XX, S3 direct mount for DMD, top-swing, top-pull
Shift Levers
SRAM XX, 10-speed, carbon trigger, w/ MatchMaker clamps
Cassette
SRAM XX 10-speed, 11-36t
Crank
S-Works OS carbon crank, 10-speed XC double, custom XX spider/rings, 15.5"": 170mm, Others: 175mm
Bottom Bracket
S-Works OS, integrated for PF30
Chain
KMC X-10SL, 10-speed, hollow plates, hollow pins, nickel finish
Pedals
Resin Test Ride Pedals with toe clips, CEN std.
Wheels
Front Hub
Roval Control SL, carbon/alloy, OS 28mm end caps, QR, 32h
Rear Hub
Roval Control SL, DT Star Ratchet, QR, 28h
Rims
Roval Control SL, carbon disc, 25mm, 24/28h
Spokes
DT Swiss Revolution 2.0/1.5/2.0mm stainless, DT Aerolite, bladed, painted
Tires
S-Works Fast Trak, 120 TPI, 2Bliss ready aramid bead, dual-compound, 26x2.0""
Brakes
Brakes
Custom Avid XX World Cup R, alloy backed semi-metallic pad, reach adj. XX magnesium caliper, ti hardware package, 160mm rotor
Brake Levers
Custom Avid XX World Cup R hydraulic, tool-less reach adjust, magnesium body, carbon lever, w/MatchMaker clamp
Cockpit
Stem
Syntace F109, 6º rise, 31.8mm clamp, S: 75mm, M: 90mm, L: 100mm, XL: 110mm
Handlebar
S-Works XC Carbon flat bar, uni-directional carbon, 680mm wide, 8º back sweep, 31.8mm
Grips
Specialized lock-on, S/M: Grappler, Others: Grappler XL
Headset
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings, carbon top cap
Seat
Saddle
Specialized Body Geometry Phenom Expert, ti rails, 143mm width
Seatpost
S-Works Carbon, 27.2mm, single-bolt head, 15.5/17.5"": 350mm, Others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.44 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 612 mm | 648 mm | 673 mm | 699 mm |
| Rake | 38 mm | 36 mm | 39 mm | 39 mm |
| Trail | 81 mm | 83 mm | 80 mm | 80 mm |
| Stack | 566 mm | 585 mm | 590 mm | 608 mm |
| Reach | 374 mm | 406 mm | 427 mm | 446 mm |
| Top Tube Length | 549 mm | 584 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 165 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1027 mm | 1063 mm | 1089 mm | 1115 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 732 mm | 761 mm | 794 mm | 829 mm |
| Wheels | 26" | 26" | 26" | 26" |
About this model

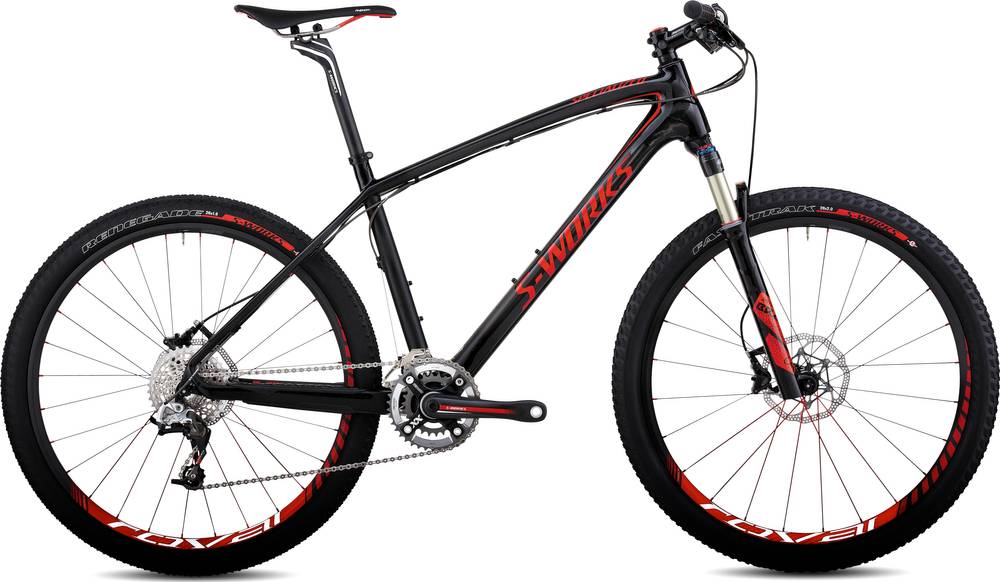

S-Works Stumpjumper Carbon is a Specialized Stumpjumper model. Specialized released 352 bikes variations of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 90mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the S-Works Stumpjumper Carbon bike is equipped with the 26″ carbon model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Stumpjumper Carbon has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
