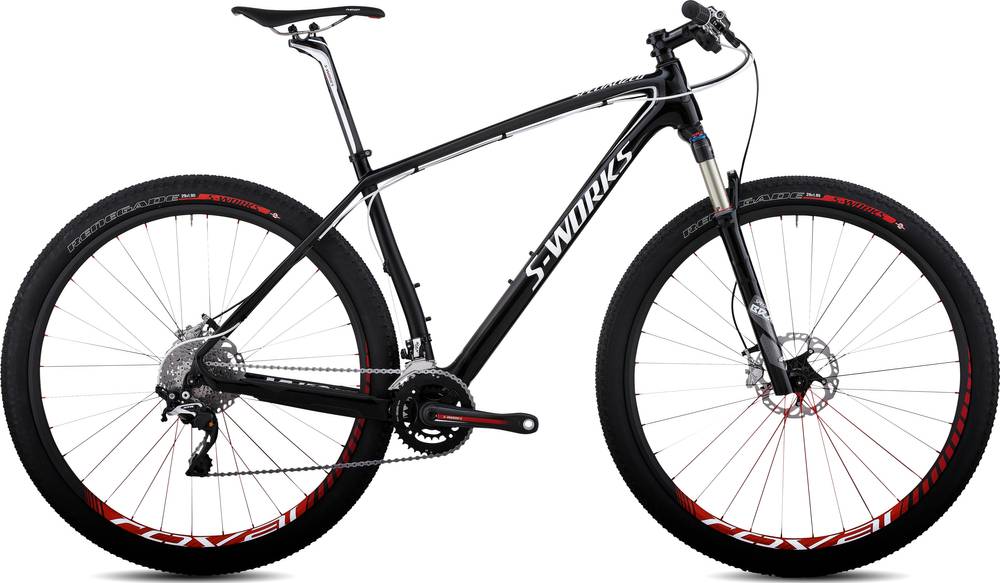

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 80mm -
Fork RockShox SID
-
Groupset XTR -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon, 29"" geometry, FACT IS construction, tapered HT, carbon PF30 BB, hollow carbon dropouts, replaceable alloy derailleur hanger
Suspension Fork
Custom RockShox SID World Cup 29 Brain, inertia valve damper, air spring, tapered carbon steerer, top-mount Brain Fade adj. and rebound adj. QR, S: 80mm travel, Others 90mm
Drivetrain
Rear Derailleur
Shimano XTR Shadow M980, 10-speed, medium cage
Front Derailleur
Shimano XTR M986, 34.9mm clamp, down-swing, dual-pull
Shift Levers
Shimano XTR M980R, 10-speed, w/ I-Spec camps
Cassette
Shimano XTR 10-speed, 11-36t
Crank
S-Works OS carbon crank, 10-speed XC double, S: 170mm, Others: 175mm
Bottom Bracket
PF30, press-fit
Chain
Shimano XTR M980, 10-speed
Pedals
Resin Test Ride Pedals with toe clips, CEN std.
Wheels
Front Hub
Roval Control SL 29, carbon/alloy, OS 28mm end caps, QR, 32h
Rear Hub
Roval Control SL 29, DT Star Ratchet, QR, 32h
Rims
Roval Control SL 29, carbon disc, 28mm, 32h
Spokes
DT Swiss Revolution 2.0/1.5/2.0mm stainless, DT Aerolite, bladed, painted
Tires
S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual-compound, 29x1.95""
Brakes
Brakes
Shimano XTR, hydraulic disc, post mount, ti/metal pad, Ice Tech 160mm rotor
Brake Levers
Shimano XTR M985 hydraulic, w/ I-Spec clamps
Cockpit
Stem
Syntace F109, 6º rise, 31.8mm clamp, S: 75mm, M: 90mm, L: 100mm, XL: 110mm
Handlebar
S-Works XC Carbon flat bar, uni-directional carbon, 680mm wide, 8º back sweep, 31.8mm
Grips
Specialized lock-on, S/M: Grappler, Others: Grappler XL
Headset
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings, carbon top cap
Seat
Saddle
Specialized Body Geometry Phenom Expert, ti rails, 143mm width
Seatpost
S-Works Carbon, 27.2mm, single-bolt head, 15.5/17.5"": 350mm, Others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 622 mm | 645 mm | 679 mm | 705 mm |
| Rake | 45 mm | 45 mm | 54 mm | 55 mm |
| Trail | 78 mm | 78 mm | 68 mm | 67 mm |
| Stack | 588 mm | 606 mm | 621 mm | 635 mm |
| Reach | 388 mm | 404.5 mm | 424 mm | 444 mm |
| Top Tube Length | 564 mm | 586 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1043 mm | 1066 mm | 1100 mm | 1126 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 754 mm | 804 mm | 824 mm | 864 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
S-Works Stumpjumper Carbon 29 XTR is a Specialized Stumpjumper model. 352 bikes variations carry this model name so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
S-Works Stumpjumper Carbon 29 XTR components
Fork
The fork installed on this bike is the RockShox SID model. The travel on this model is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the S-Works Stumpjumper Carbon 29 XTR bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
