Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 90mm -
Groupset XX -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 10M carbon, 1.5 - 1 1/8"" tapered HT, alloy replaceable derailleur hanger, carbon drive-side dropout
Suspension Fork
Specialized Future Shock S90, 90mm travel, interia valve, Brain Fade, rebound adj. single sided air spring and damper, carbon 1-1/8"" to 1.5"" steerer
Drivetrain
Rear Derailleur
SRAM XX, 10-speed, standard cage
Front Derailleur
SRAM XX, 34.9mm clamp, bottom swing, top pull
Shift Levers
SRAM XX carbon trigger
Cassette
SRAM XX, 10-speed, 11-36t
Crank
S-Works OS carbon crank, Custom XX spider/rings for SBC, 15.5: 170mm, others: 175mm
Bottom Bracket
S-Works, OS, integrated
Chain
SRAM PC-1090, 10-speed
Pedals
None
Wheels
Front Hub
Roval Control SL Carbon, OS 28mm end caps
Rear Hub
Roval Control SL
Rims
Roval Control SL, disc, 24mm
Spokes
DT Aerolite
Tires
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid XX R, alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 160mm rotor
Brake Levers
Custom Avid XX Hydraulic, tool-less reach adjust, magnesium body, carbon lever
Cockpit
Stem
Syntace F99, 6 degree rise, 25.4mm clamp
Handlebar
Specialized S-Works XC Carbon flat bar, 25.4mm, 600mm wide
Grips
Specialized waffle lock on grip (15.5/17) Specialized Thick lock on grip (others)
Headset
1-1/8"" Threadless, 1 1/2"" lower, Campy style
Seat
Saddle
Specialized Phenom SL, Ti rails, thin foam, 15.5/17: 130mm, others: 143mm
Seatpost
S-Works Carbon, 30.9mm, single-bolt head, 15.5/17/18: 350mm, others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 18" | 19" | 21" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.41 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm | 301 mm |
| Stack | 573 mm | 583 mm | 583 mm | 592 mm | 611 mm |
| Reach | 372 mm | 399 mm | 414 mm | 426 mm | 445 mm |
| Top Tube Length | 549 mm | 579 mm | 594 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 135 mm | 145 mm | 165 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1022 mm | 1052 mm | 1067 mm | 1083 mm | 1109 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 755 mm | 776 mm | 787 mm | 804 mm | 837 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

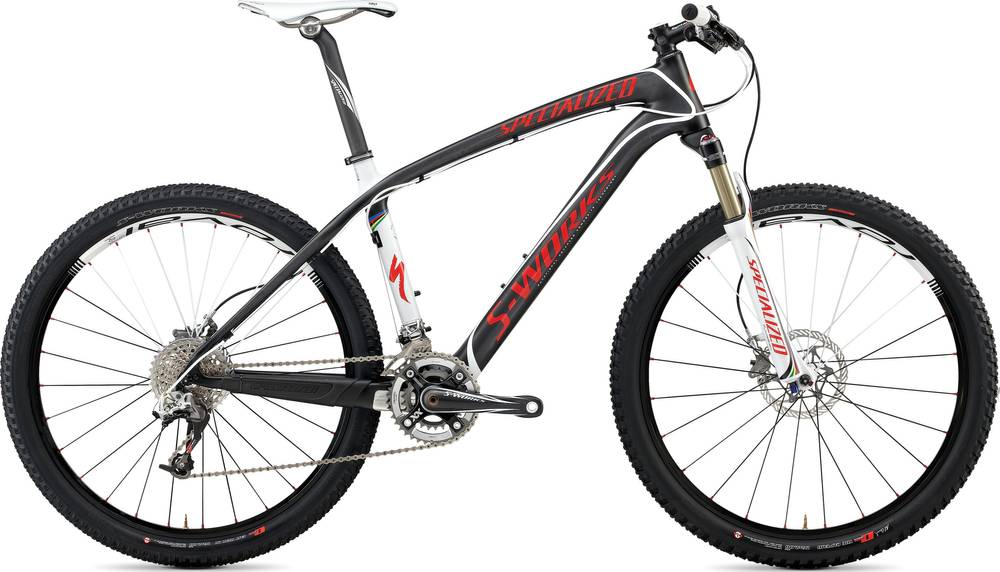

S-Works Stumpjumper Carbon HT is part of the Specialized Stumpjumper model. Specialized launched 352 bikes of this model so far. Take a sneak peek at all Specialized Stumpjumper bikes models from 2010, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
S-Works Stumpjumper Carbon HT components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The S-Works Stumpjumper Carbon HT 2010 bike is equipped with 26″ carbon wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Stumpjumper Carbon HT has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
