Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 90mm -
Fork RockShox Reba
-
Groupset XX -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 10M carbon, 29"" geometry, 1.5 - 1/8"" tapered HT, alloy replaceable derailleur hanger, carbon drive-side dropout
Suspension Fork
Custom SBC/RockShox Reba S29 Carbon, 90mm travel, One-piece tapered carbon crown/steeer tube, Rockshox Reba Team lower, titanium motion control damper, L/O w/floodgate adjust.
Drivetrain
Rear Derailleur
SRAM XX, 10-speed, standard cage
Front Derailleur
SRAM XX, 34.9mm clamp, bottom swing, top pull
Shift Levers
SRAM XX carbon trigger
Cassette
SRAM XX, 10-speed, 11-36t
Crank
S-Works OS carbon crank, Custom XX spider/rings for SBC, 175mm
Bottom Bracket
S-Works, OS, integrated
Chain
SRAM PC-1090, 10-speed
Pedals
None
Wheels
Front Hub
Roval Control EL XC, OS, 28mm axle caps
Rear Hub
Roval Control EL XC, OS, stragiht pull
Rims
Roval Control EL, 29"" XC disc wheel
Tires
S-Works Fast Trak LK, 29x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid XX R, alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 160mm rotor
Brake Levers
Custom Avid XX Hydraulic, tool-less reach adjust, magnesium body, carbon lever
Cockpit
Stem
Synatce F99, 6 degree rise, 25.4mm clamp
Handlebar
Specialized S-Works XC Carbon flat bar, 25.4mm, 600mm wide
Grips
Specialized waffle lock on grip (17.5) Specialized Thick lock on grip (others)
Headset
1-1/8"" Threadless, 1 1/2"" lower, Campy style
Seat
Saddle
Specialized Phenom SL, Ti rails, thin foam, 15.5/17: 130mm, others: 143mm
Seatpost
S-Works Carbon, 30.9mm, single-bolt head, 17.5: 350mm, others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17.5" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Stack | 615 mm | 625 mm | 635 mm |
| Reach | 402 mm | 427 mm | 450 mm |
| Top Tube Length | 586 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1068 mm | 1100 mm | 1126 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 774 mm | 812 mm | 849 mm |
| Wheels | 29" | 29" | 29" |
Model Overview

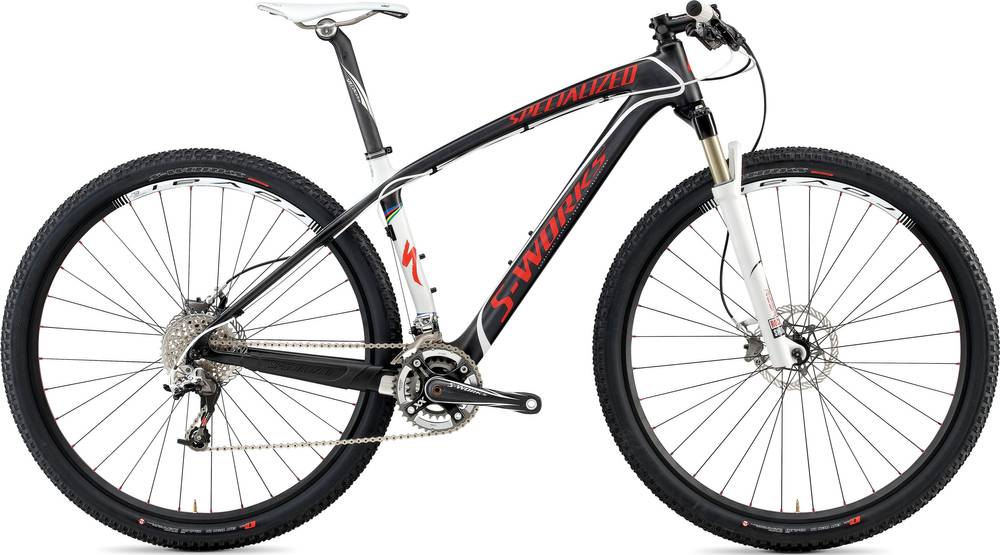

S-Works Stumpjumper Carbon HT 29er is a Specialized Stumpjumper model. 352 bikes variations carry this model name so far. Take a sneak peek at all Specialized Stumpjumper bikes models from 2010, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
S-Works Stumpjumper Carbon HT 29er components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 90mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The S-Works Stumpjumper Carbon HT 29er 2010 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The S-Works Stumpjumper Carbon HT 29er comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
