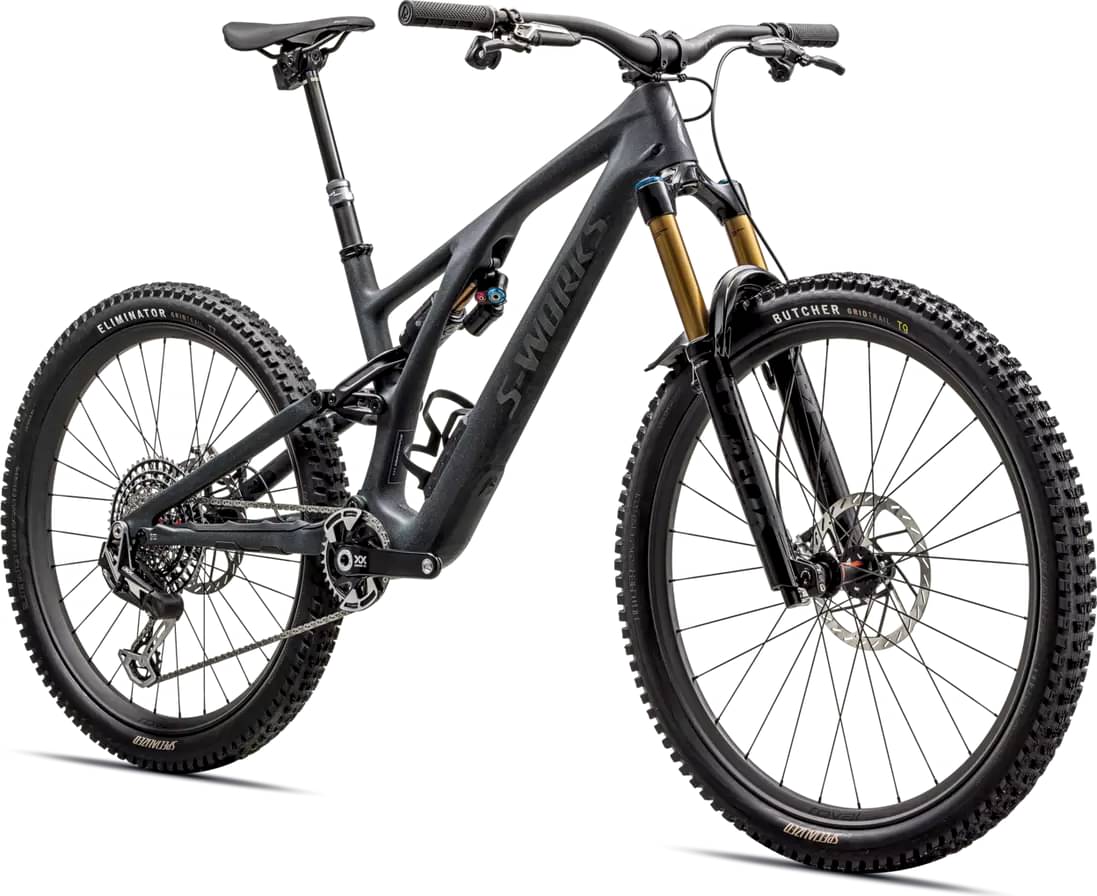

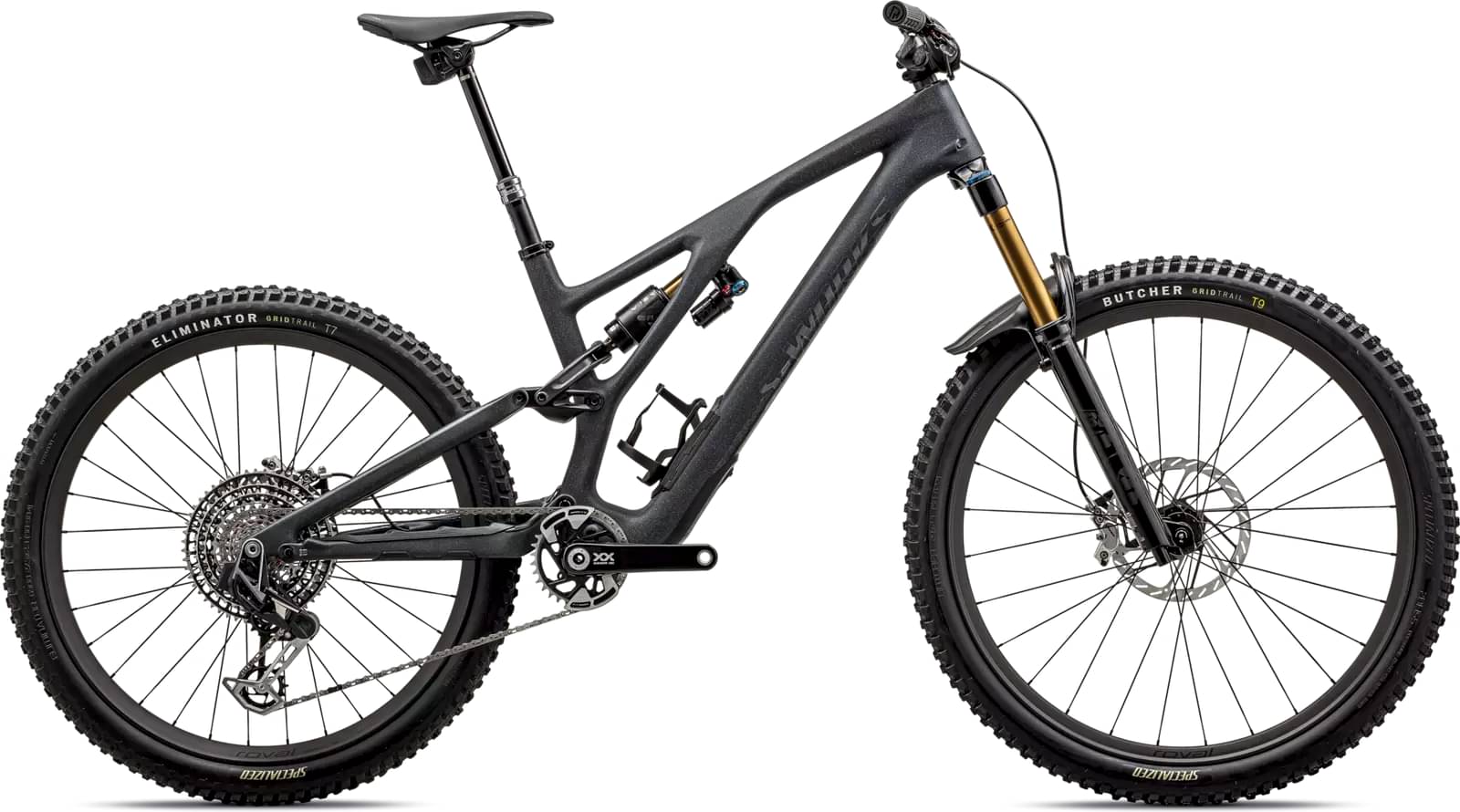

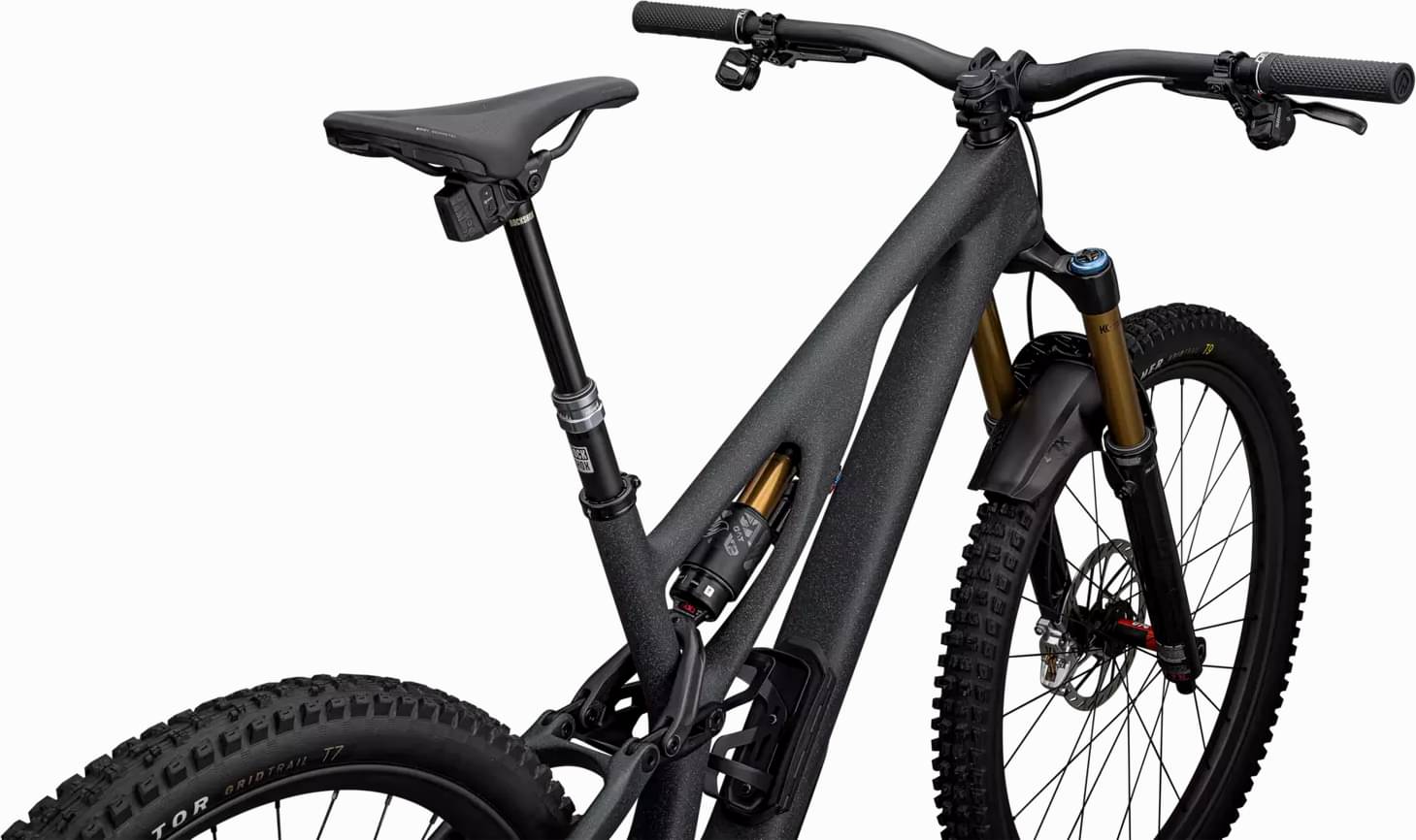

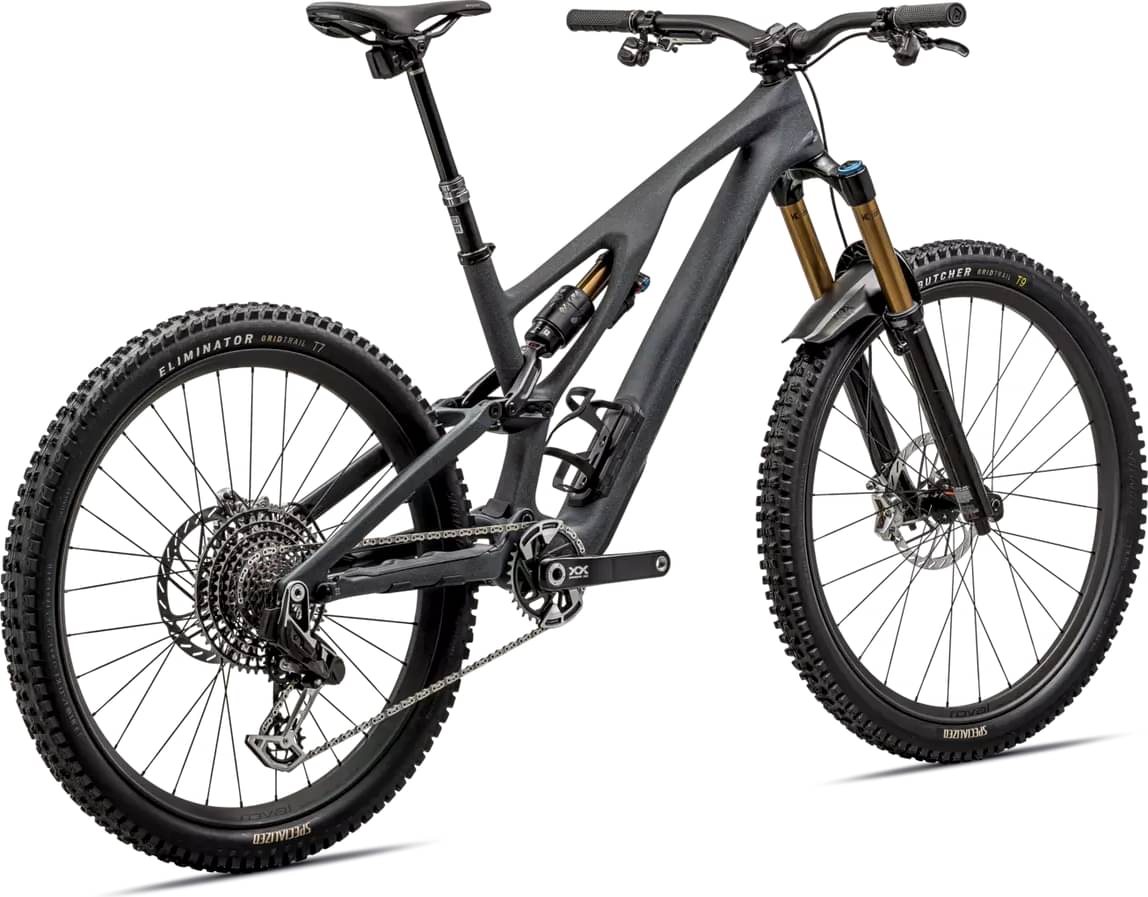

Specialized S-Works Stumpjumper EVO 2024
2024 Mountain
Estimate price |
11,500$
Weight | 14.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Suspension Fork
FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

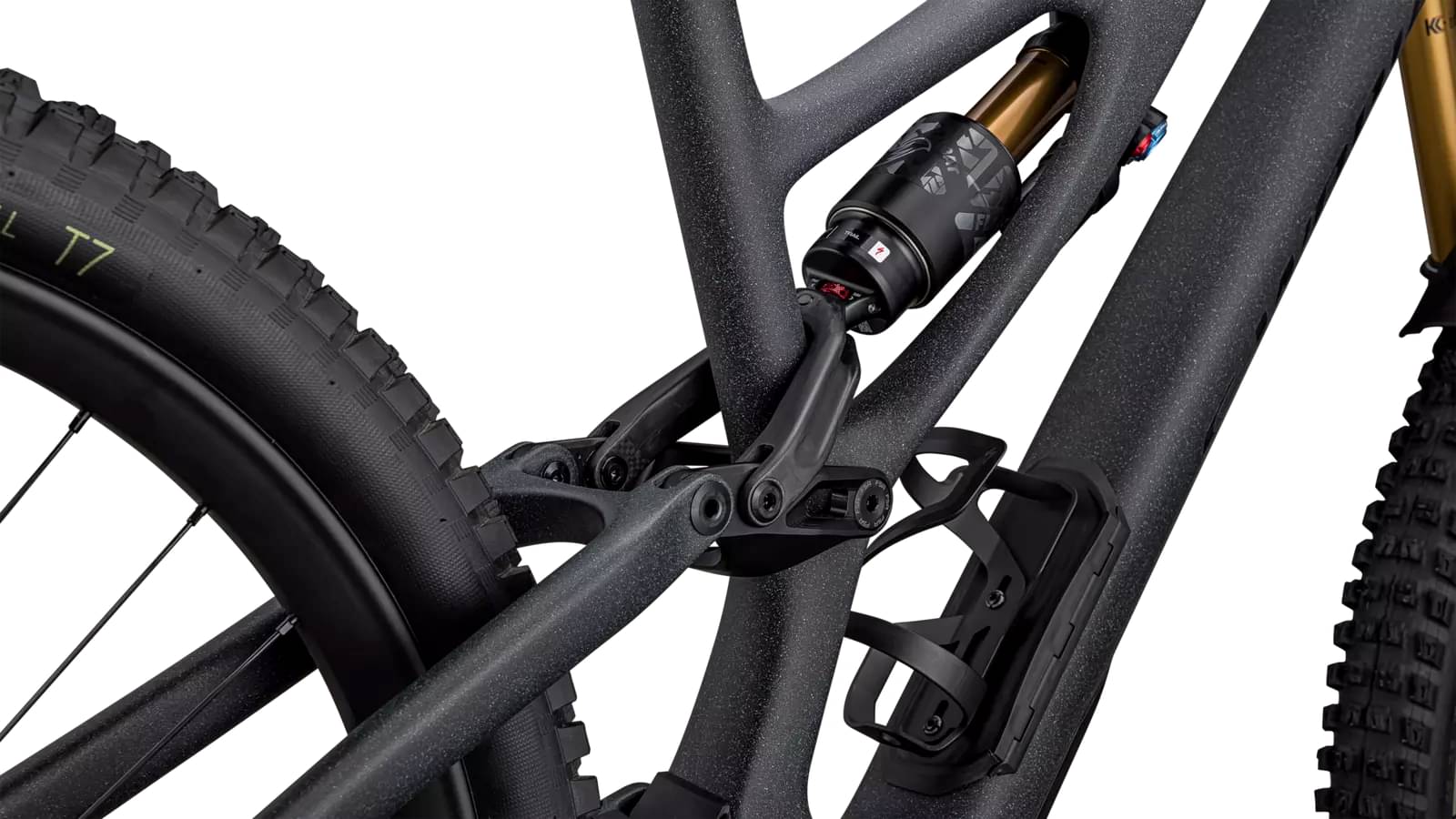

Rear Shock
FOX FLOAT X2 Factory, Rx Trail Tune, 2-position open/firm lever, HSC, LSC, HSR, and LSR adjustment, S1:210x50mm, S2-S6:210x55mm "
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Shift Levers
SRAM AXS POD Ultimate Controller
Cassette
SRAM XX Eagle SL Transmission Cassette, 12spd, 10-52T
Crank
SRAM XX Eagle, Carbon, with Aluminum Guards, DUB, 32T, S1:165mm, S2-S5: 170mm, S6: 175mm, 32T
Bottom Bracket
SRAM DUB WIDE, BSA 73mm, Threaded
Chain
SRAM XX Eagle SL Transmission Flattop Chain, 12spd
Wheels
Front Hub
DT Swiss 240, 28h, 15x110
Rear Hub
DT Swiss 240, 32h, 12x148
Rims
Roval Traverse 29 HD Carbon, 30mm internal width, 28h: Roval Traverse 27.5 HD Carbon, 30mm internal width 32h
Spokes
DT Swiss Aerolite
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Brakes
Brakes
Front: SRAM Code Ultimate Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor, Rear: SRAM Code Ultimate Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

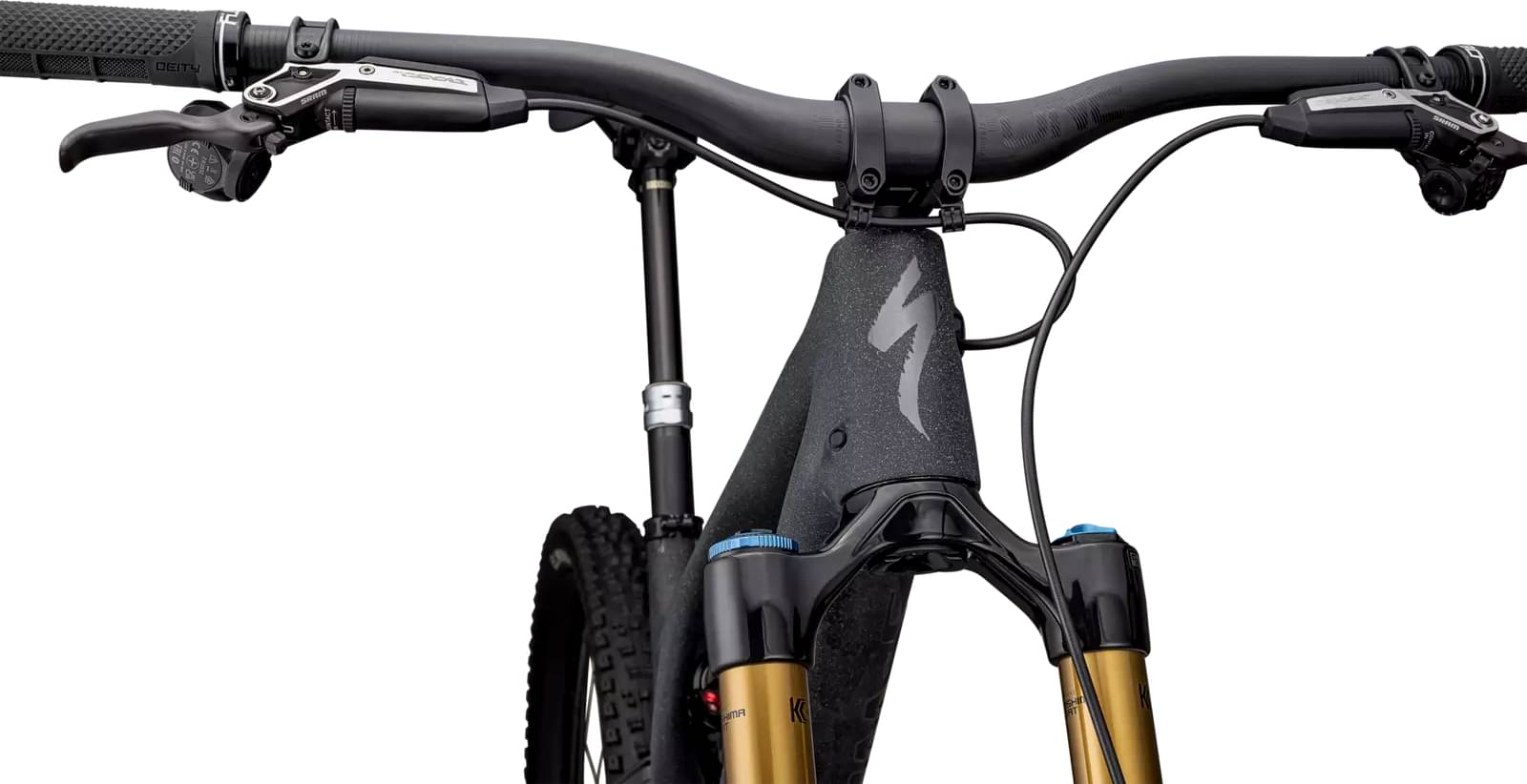

Cockpit
Stem
OneUp Stem, 35mm bar bore
Handlebar
OneUp Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, 35mm rise, 800mm, 35.0mm
Grips
Deity Lockjaw
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.4 mm | 1.34 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 335 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 732 mm | 756 mm | 780 mm | 809 mm | 838 mm | 873 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 615 mm | 619 mm | 628 mm | 637 mm | 646 mm | 656 mm |
| Reach | 410 mm | 430 mm | 450 mm | 477 mm | 500 mm | 530 mm |
| Top Tube Length | 540 mm | 566 mm | 592 mm | 625 mm | 649 mm | 681 mm |
| Seat Tube Angle | 78 ° | 77.6 ° | 77.2 ° | 76.9 ° | 77 ° | 77 ° |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 448 mm | 448 mm |
| Wheelbase | 1167 mm | 1191 mm | 1216 mm | 1247 mm | 1285 mm | 1319 mm |
| Bottom Bracket Drop | 40 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 735 mm | 766 mm | 765 mm | 764 mm | 769 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
Model Overview
S-Works Stumpjumper EVO is a Specialized Stumpjumper Evo model. There are 19 bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Specialized Stumpjumper EVO Expert 2024 is the cheapest bike model and costs 6300$. Specialized S-Works Stumpjumper EVO 2024 is the most expensive one and costs 11500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Specialized released this model in 2024, its price was 11500$. In conclusion, this bike price is 219.53% more expensive than the price of the average Enduro bike.
Enduro bikes average weight
Enduro bikes weigh an average of 14 kg (30.86 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
S-Works Stumpjumper EVO weighs 14.34 kg (31.61 lbs) and is slightly heavier than the average. In conclusion, the average Enduro bike weighs 2.43% less than S-Works Stumpjumper EVO.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Stumpjumper EVO components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Specialized S-Works Stumpjumper EVO bike has the FOX FLOAT X2 Factory model installed, and has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Specialized S-Works Stumpjumper EVO 2024, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Stumpjumper EVO has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 149 cm – 203 cm (4.89 ft – 6.66 ft). In short, you can easily find one that suits you.
Dropper post
Specialized S-Works Stumpjumper EVO includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
