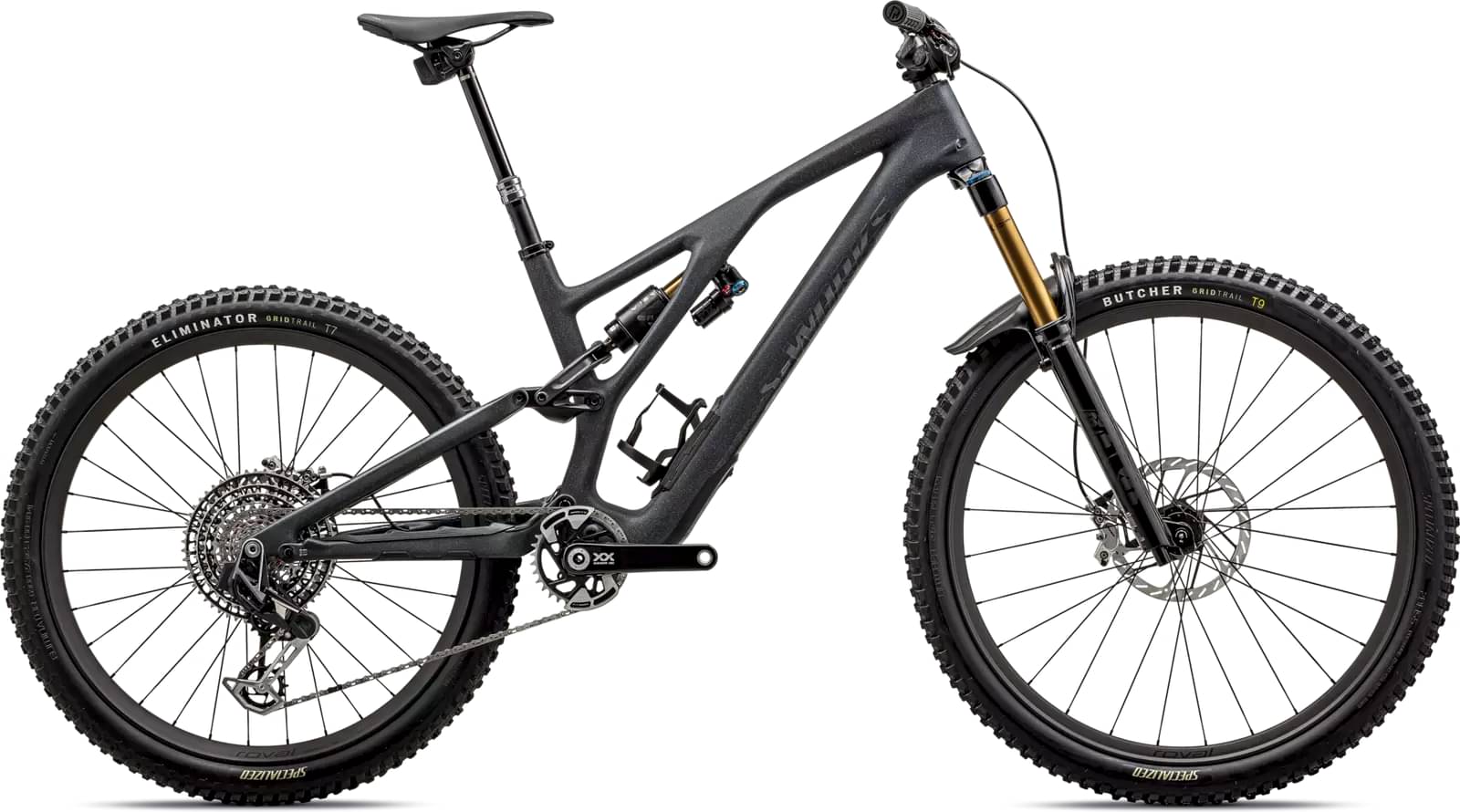

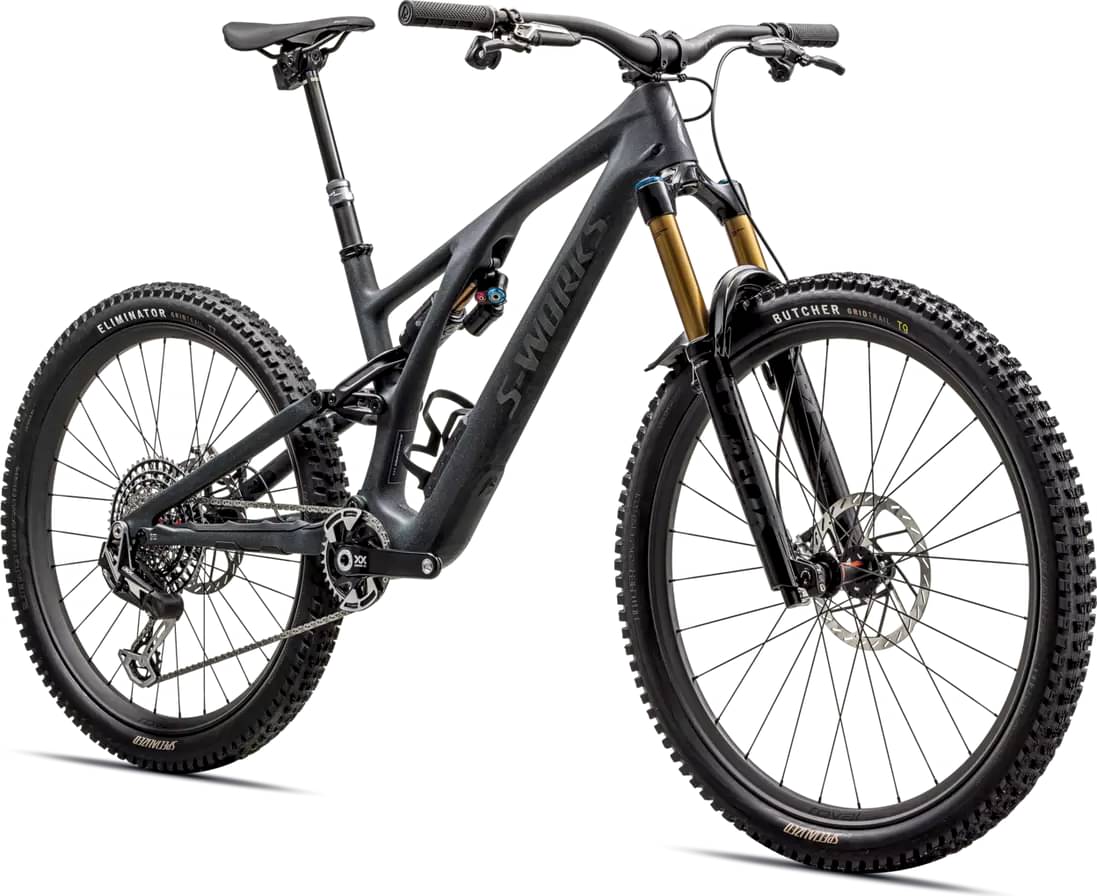

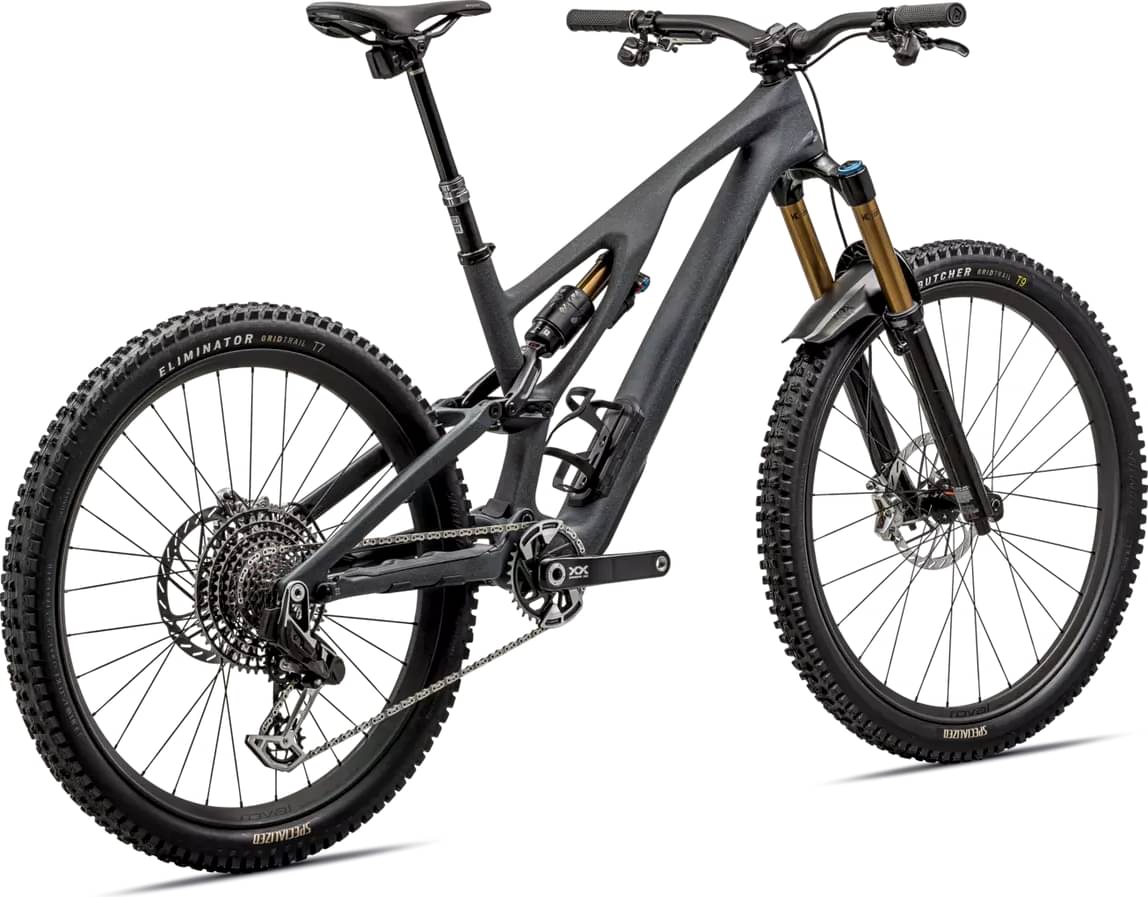

Specialized S-Works Stumpjumper EVO T-Type 2024
2024 Mountain
Estimate price |
14,796$
Weight | 14.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Suspension Fork
FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
Rear Shock
FOX FLOAT X2 Factory, Rx Trail Tune, 2-position open/firm lever, HSC, LSC, HSR, and LSR adjustment, S1:210x50mm, S2-S6:210x55mm "
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Shift Levers
SRAM AXS POD Ultimate Controller
Cassette
SRAM XX Eagle SL Transmission Cassette, 12spd, 10-52T
Crank
SRAM XX Eagle, Carbon, with Aluminum Guards, DUB, 32T, S1:165mm, S2-S5: 170mm, S6: 175mm, 32T
Bottom Bracket
SRAM DUB WIDE, BSA 73mm, Threaded
Chain
SRAM XX Eagle SL Transmission Flattop Chain, 12spd
Wheels
Front Hub
DT Swiss 240, 28h, 15x110
Rear Hub
DT Swiss 240, 32h, 12x148
Rims
Roval Traverse 29 HD Carbon, 30mm internal width, 28h: Roval Traverse 27.5 HD Carbon, 30mm internal width, 32h
Spokes
DT Swiss Aerolite
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Brakes
Brakes
Front: SRAM Code Ultimate Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor, Rear: SRAM Code Ultimate Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Cockpit
Stem
OneUp Stem, 35mm bar bore
Handlebar
OneUp Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, 35mm rise, 800mm, 35.0mm
Grips
Deity Lockjaw
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.502 mm | 1.442 mm | 1.397 mm | 1.337 mm | 1.293 mm | 1.239 mm |
| Bottom Bracket Height | 335 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 732 mm | 756 mm | 780 mm | 809 mm | 838 mm | 873 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 613 mm | 617 mm | 626 mm | 635 mm | 644 mm | 654 mm |
| Reach | 408 mm | 428 mm | 448 mm | 475 mm | 498 mm | 528 mm |
| Top Tube Length | 538 mm | 564 mm | 590 mm | 623 mm | 647 mm | 679 mm |
| Seat Tube Angle | 78 ° | 77.6 ° | 77.2 ° | 76.9 ° | 77 ° | 77 ° |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 446 mm | 446 mm |
| Wheelbase | 1165 mm | 1189 mm | 1214 mm | 1245 mm | 1283 mm | 1317 mm |
| Bottom Bracket Drop | 40 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 733 mm | 764 mm | 763 mm | 762 mm | 767 mm | 770 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
About this model
S-Works Stumpjumper EVO T-Type is a Specialized Stumpjumper Evo model. There are 22 bikes that carry this model name. Take a sneak peek at all Specialized Stumpjumper Evo bikes models from 2024, by clicking here.
Model range prices
Specialized Stumpjumper EVO Expert 2024 is the most economical model, with a starting price of 6300$. Specialized S-Works Stumpjumper EVO T-Type 2024 on the other hand costs 13660$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Specialized S-Works Stumpjumper EVO T-Type price was 13660$. Doing a quick comparison, we notice that S-Works Stumpjumper EVO T-Type price is 279.55% more expensive than the average cost of an Enduro bike.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.34 kg (31.61 lbs), the S-Works Stumpjumper EVO T-Type model is slightly heavier than average. To sum up, it’s 0.49% heavier than the average weight of Enduro bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
S-Works Stumpjumper EVO T-Type components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

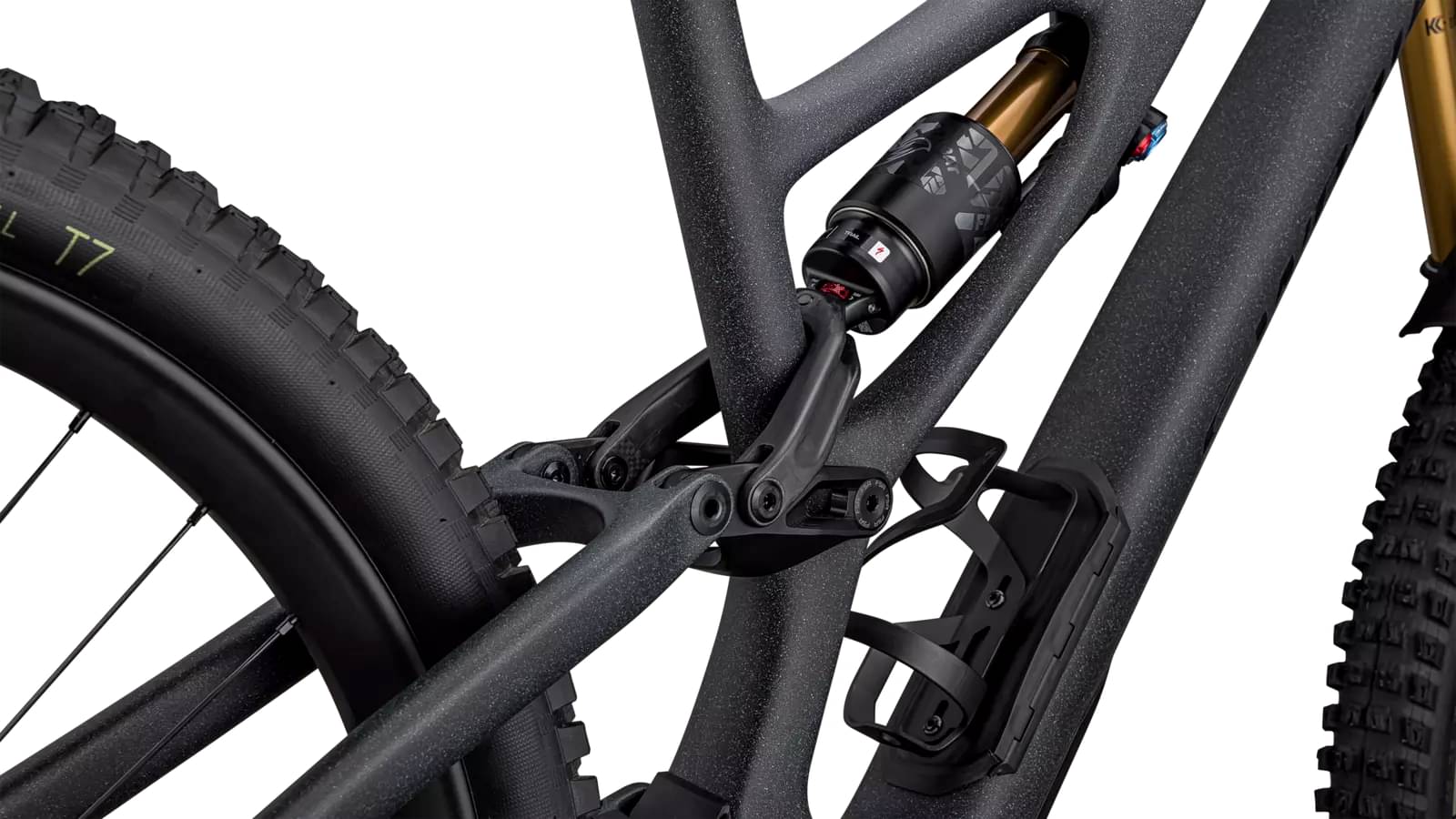

Rear Shock
Specialized S-Works Stumpjumper EVO T-Type bike has the FOX FLOAT X2 Factory model installed, and has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the S-Works Stumpjumper EVO T-Type bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Works Stumpjumper EVO T-Type has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Specialized S-Works Stumpjumper EVO T-Type bike has 6 sizes, in the range of 149 cm – 203 cm (4.89 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Specialized S-Works Stumpjumper EVO T-Type includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
