Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Öhlins
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m, full carbon chassis and rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel
Suspension Fork
Öhlins RXF36, 29/27.5+, Twin-Tube design, air spring w/ adjustable 3rd chamber, adjustable high and low speed compression, adjustable rebound, 15x110mm thru-axle, 51mm offset, 150mm travel
Rear Shock
Custom Öhlins STX, Single Tube design, Rx Trail Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 197x48mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Shift Levers
SRAM XX1 Eagle, 12-speed, trigger
Cassette
SRAM XG-1295, 12-speed, 10-50t
Crank
SRAM XX1 Eagle, carbon, 30mm spindle, 52mm chainline, 30T
Bottom Bracket
SRAM PF30, OS press-in bearings
Chain
SRAM XX1 Eagle, black, 12-speed w/PowerLink
Pedals
Resin Test Ride w/toe clips
Wheels
Front Hub
Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
Rear Hub
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse SL 29, hookless carbon, 30mm inner width, 24/28h, tubeless ready
Spokes
DT Swiss Revolution
Tires
Butcher, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 200/180mm rotor
Cockpit
Stem
Syntace F109, 6-degree rise, 31.8mm clamp
Handlebar
Specialized Trail, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm, 31.8mm
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Expert, hollow titanium rails, 143mm
Seatpost
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.5 mm | 1.5 mm | 1.46 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 687 mm | 714 mm | 744 mm | 777 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96.5 mm | 96.5 mm | 96.5 mm | 96.5 mm |
| Stack | 614 mm | 614 mm | 642 mm | 660 mm |
| Reach | 382 mm | 409 mm | 427 mm | 453 mm |
| Top Tube Length | 559 mm | 586 mm | 612 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1118 mm | 1145 mm | 1175 mm | 1208 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 750 mm | 757 mm | 766 mm | 773 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

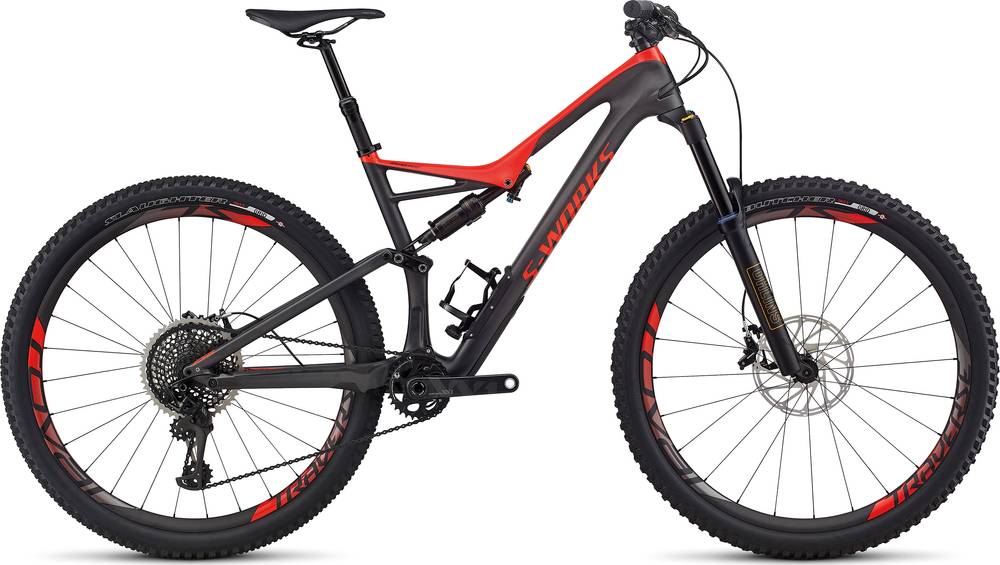

S-Works Stumpjumper FSR 29 is a Specialized Stumpjumper model. There are 352 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Stumpjumper FSR 29 components
Fork
The Öhlins is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Custom Öhlins STX, with a travel distance of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the S-Works Stumpjumper FSR 29 bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Stumpjumper FSR 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the S-Works Stumpjumper FSR 29. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
