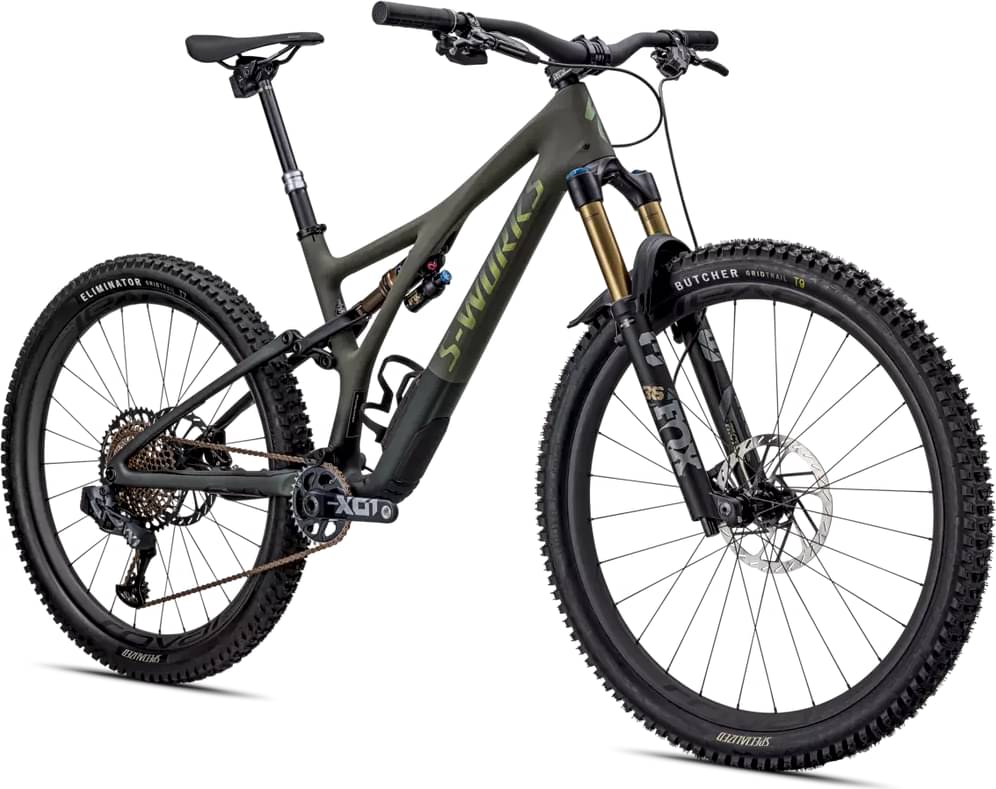

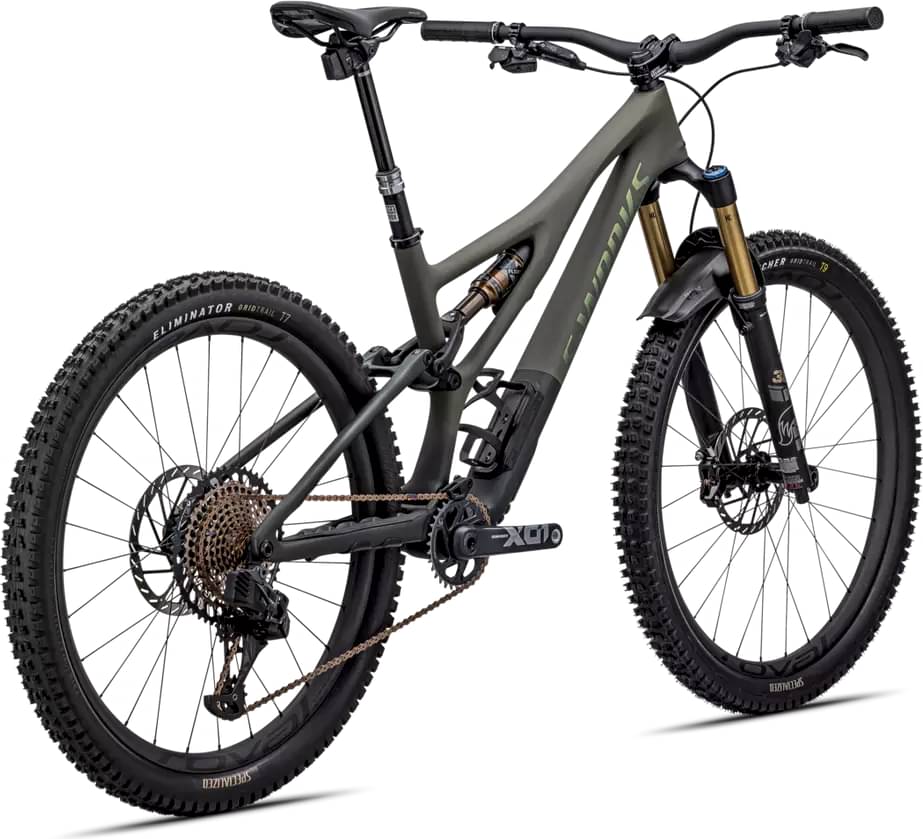

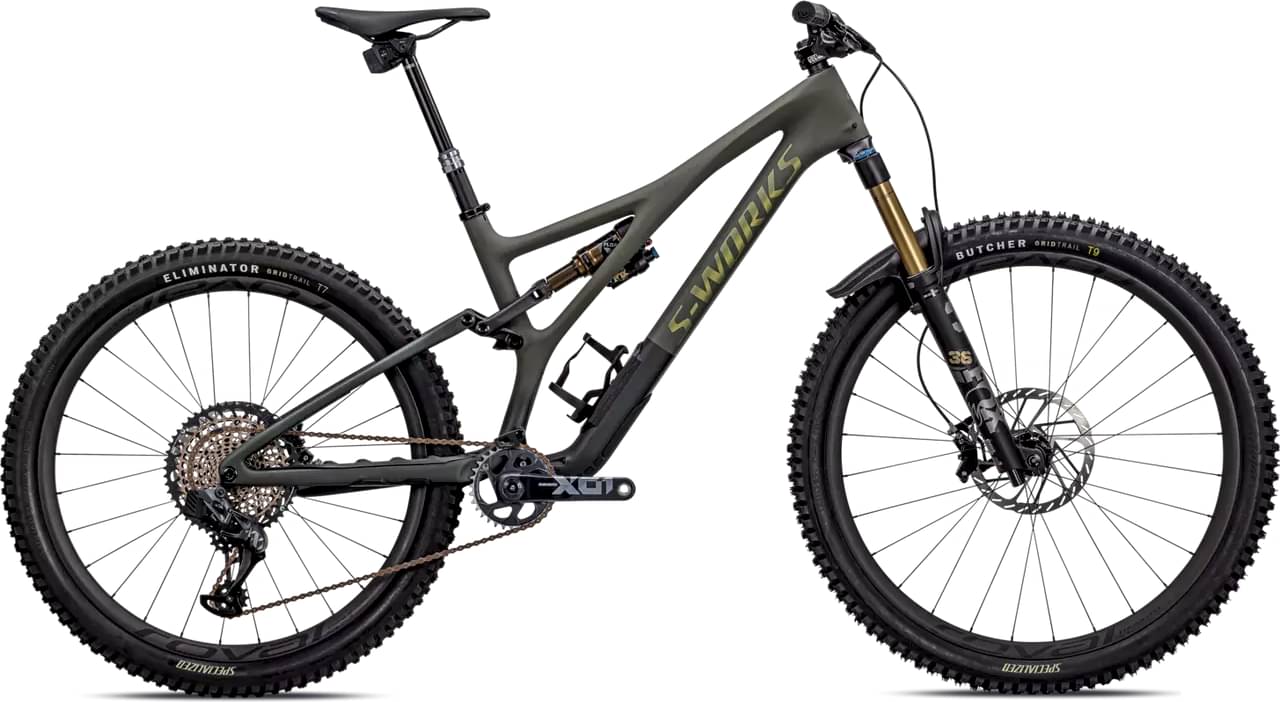

Specialized S-Works Stumpjumper LTD 2022
2022 Mountain
Estimate price |
11,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, Mixed wheel Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Suspension Fork
FOX FLOAT 36 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel
Rear Shock
FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, 190x45mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM Eagle AXS Rocker Paddle
Cassette
SRAM XG-1299, 12-Speed, 10-52t
Crank
SRAM X01 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm, Alloy, 30T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Chain
SRAM XX1 Eagle
Wheels
Front Hub
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
Rear Hub
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
Rims
Roval Traverse SL Carbon, 29 Front, 27.5 Rear, 30mm inner width, hand-built, 2Bliss Ready
Spokes
DT Swiss Competition Race
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Brakes
Brakes
Front: SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor, Rear: SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Cockpit
Stem
Deity, 35.0mm
Handlebar
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
Grips
Deity, Knuckleduster, Black
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.42 mm | 1.38 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 328 mm | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 724 mm | 746 mm | 770 mm | 800 mm | 829 mm | 863 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 616 mm | 615 mm | 624 mm | 634 mm | 643 mm | 652 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Top Tube Length | 565 mm | 585 mm | 607 mm | 634 mm | 662 mm | 694 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 444 mm | 444 mm |
| Wheelbase | 1154 mm | 1177 mm | 1202 mm | 1230 mm | 1270 mm | 1304 mm |
| Bottom Bracket Drop | 47 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 732 mm | 736 mm | 746 mm | 751 mm | 759 mm | 759 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
About this model
S-Works Stumpjumper LTD is part of the Specialized Stumpjumper model. There are 352 bikes that carry this model name. Take a sneak peek at all Specialized Stumpjumper bikes models from 2022, by clicking here.
Model range prices
Specialized Stumpjumper Alloy 2022 is the cheapest bike model and costs 2761$. Specialized S-Works Stumpjumper 2022 is the most expensive one and costs 13272$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Specialized released this model in 2022, its price was 11500$. If we compare this with the average Trail bike cost we notice that the price is 316.36% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
S-Works Stumpjumper LTD components
Fork
The S-Works Stumpjumper LTD comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.

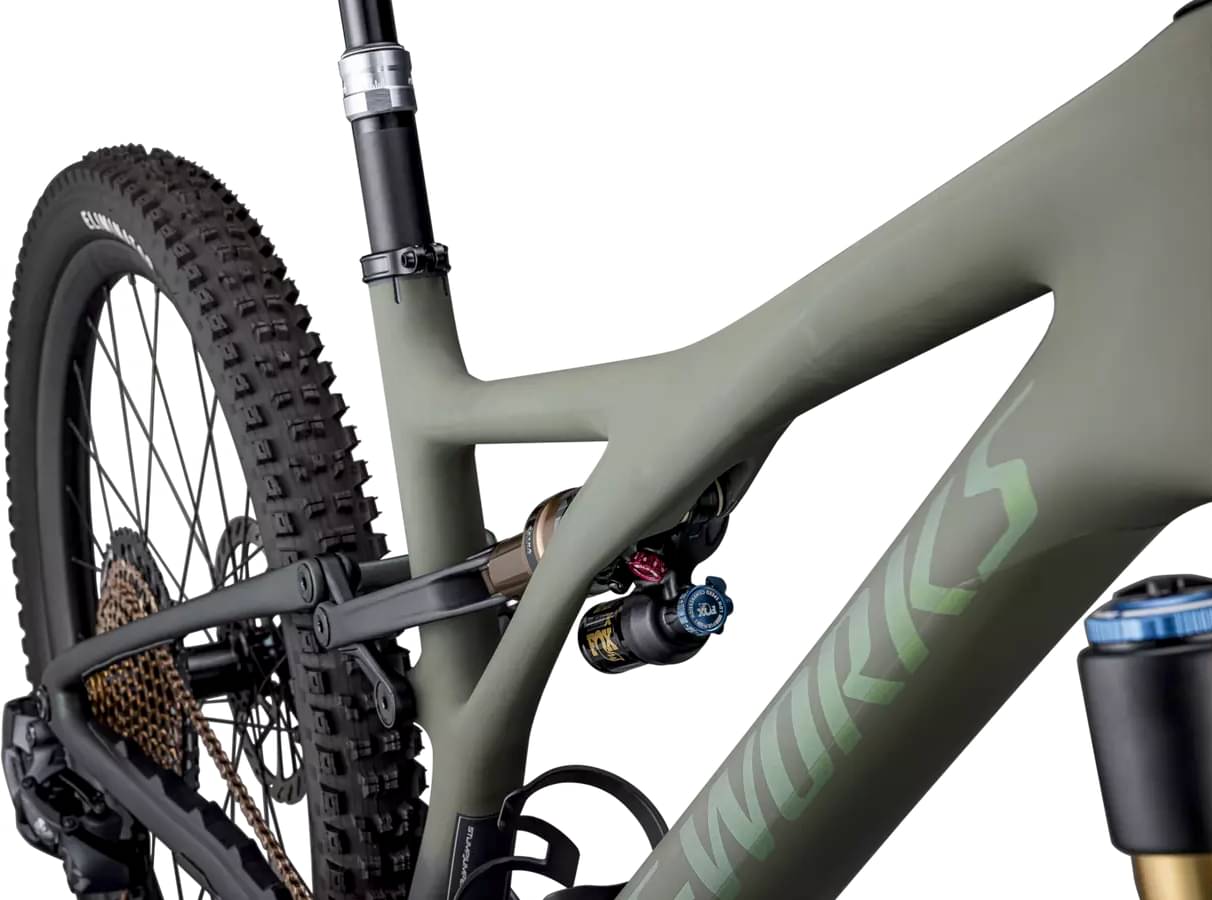

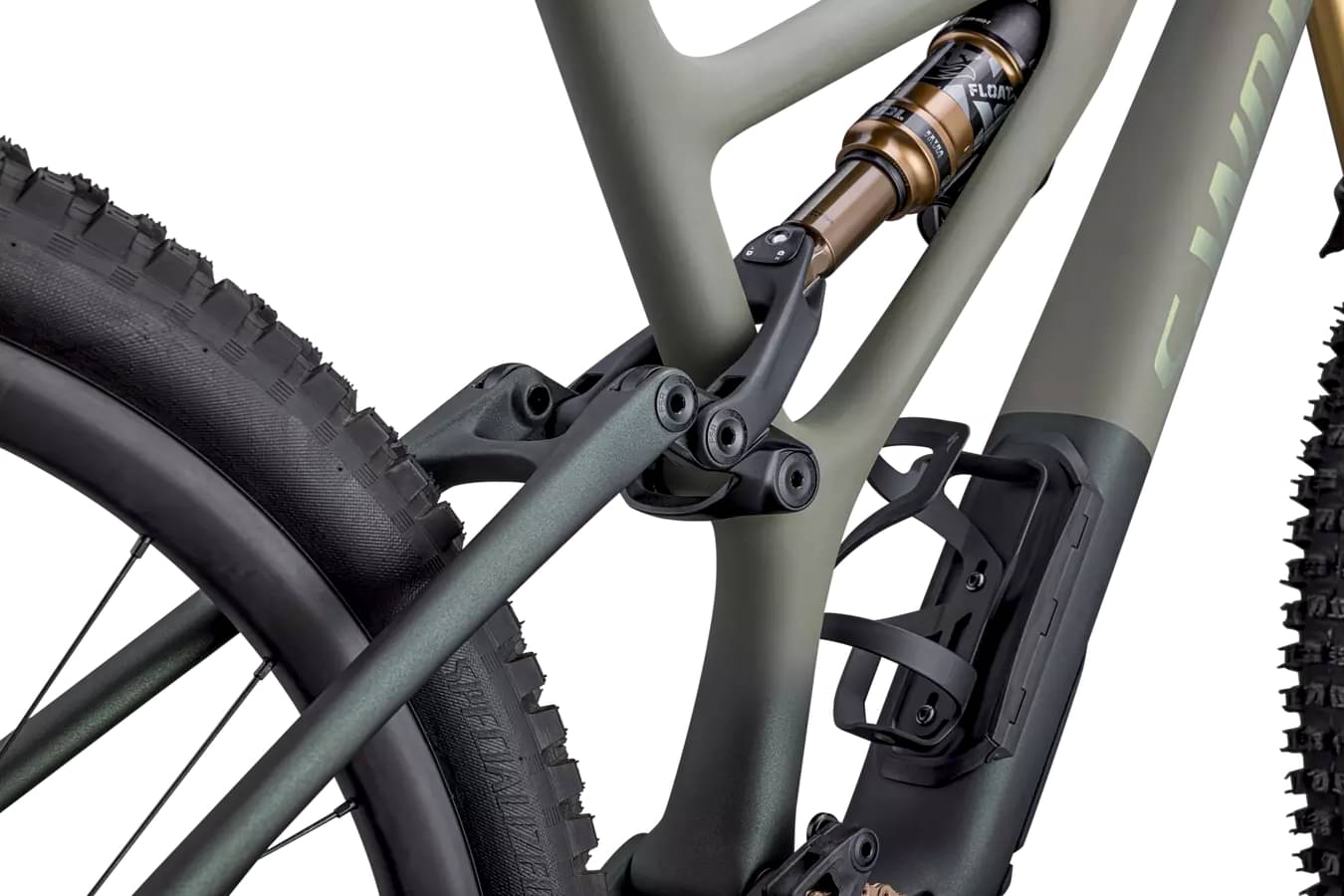

Rear Shock
The shock that’s installed on this bike is FOX FLOAT X Factory, with a travel distance of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on S-Works Stumpjumper LTD are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Stumpjumper LTD has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 149 cm – 203 cm (4.89 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the S-Works Stumpjumper LTD. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
