Specialized S-Works Stumpjumper T-Type 2023
2023 Mountain
Estimate price |
14,337$
Weight | 12.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm UDH compatible rear spacing, sealed cartridge bearing pivots, 130mm of travel
Suspension Fork
FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel

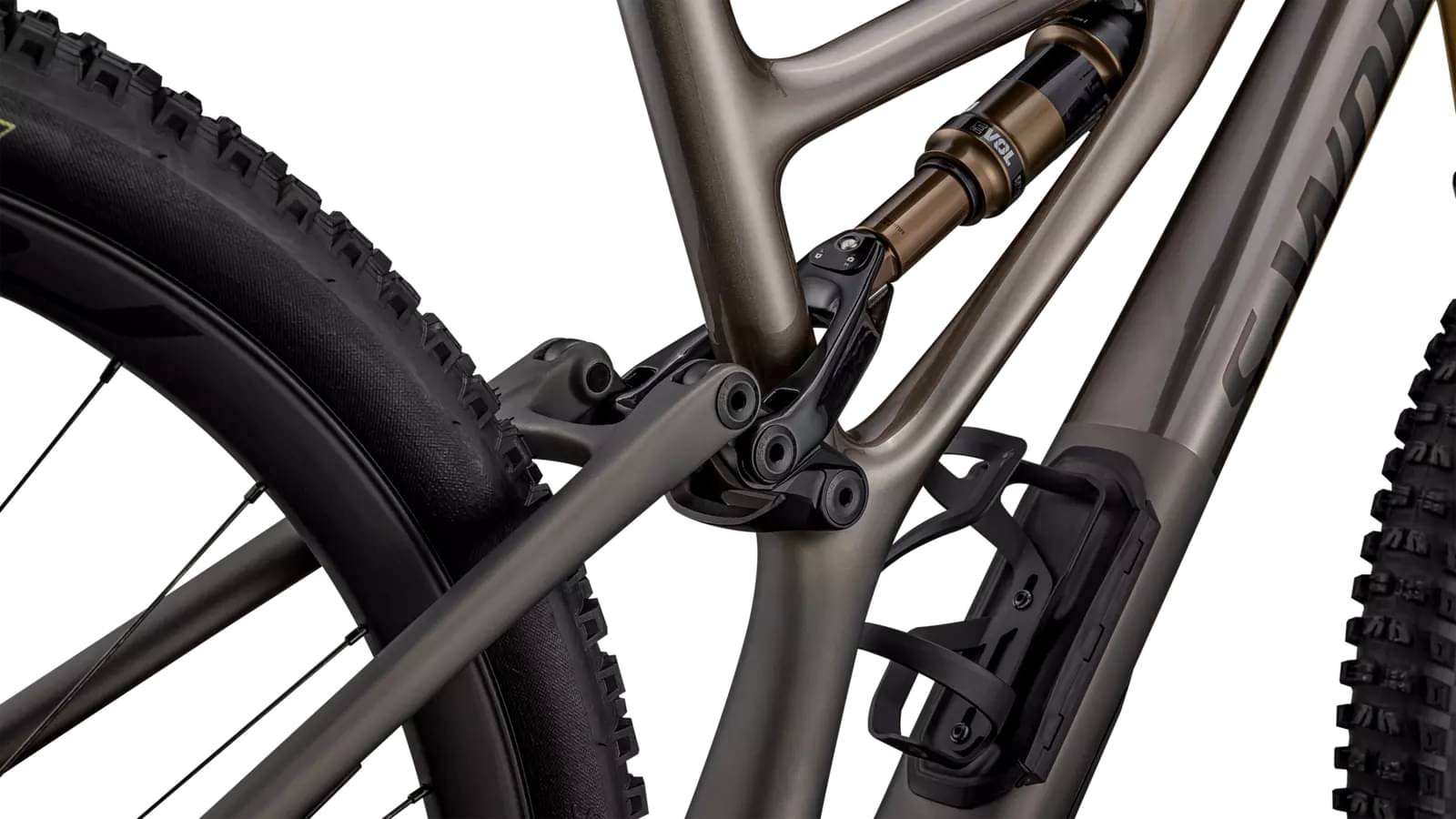

Rear Shock
FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Shift Levers
SRAM AXS POD Ultimate Controller
Cassette
SRAM XX SL Eagle Transmission Cassette, 12spd, 10-52t
Crank
SRAM XX Eagle Crankset, Carbon, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm, 32T
Bottom Bracket
SRAM DUB, BSA 73mm Wide, Threaded
Chain
SRAM XX SL Eagle Transmission Flattop Chain
Wheels
Front Hub
DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub
DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready
Spokes
DT Swiss Competition Race
Tires
Front: Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3", Rear: Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"
Brakes
Brakes
Front: SRAM Code Ultimate Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor, Rear: SRAM Code Ultimate Stealth, 4-piston caliper, hydraulic disc, 180mm HS2 Rotor
Cockpit
Stem
Deity, 35.0mm
Handlebar
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity Grips
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.42 mm | 1.38 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 328 mm | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 724 mm | 746 mm | 770 mm | 800 mm | 829 mm | 863 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 616 mm | 615 mm | 624 mm | 634 mm | 643 mm | 652 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Top Tube Length | 565 mm | 585 mm | 607 mm | 634 mm | 662 mm | 694 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 444 mm | 444 mm |
| Wheelbase | 1154 mm | 1177 mm | 1202 mm | 1230 mm | 1270 mm | 1304 mm |
| Bottom Bracket Drop | 47 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 732 mm | 736 mm | 746 mm | 751 mm | 759 mm | 759 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
About this model
S-Works Stumpjumper T-Type is part of the Specialized Stumpjumper model. 360 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Specialized Stumpjumper Alloy 2023 has a starting price of 2800$. Specialized S-Works Stumpjumper T-Type 2023 on the other hand is the most expensive at 13236$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Specialized S-Works Stumpjumper T-Type price was 13236$. In conclusion, this bike price is 379.22% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, S-Works Stumpjumper T-Type has a weight of 12.75 kg (28.11 lbs). In short, the average Trail bike weight is 1.8% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
S-Works Stumpjumper T-Type components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT DPS Factory, with a travel distance of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Specialized S-Works Stumpjumper T-Type 2023, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The S-Works Stumpjumper T-Type comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Specialized S-Works Stumpjumper T-Type bike has 6 sizes, in the range of 149 cm – 203 cm (4.89 ft – 6.66 ft). In short, you can easily find one that suits you.
Dropper post
Specialized S-Works Stumpjumper T-Type includes a dropper post. Therefore, climbing or descending will be a breeze.
