Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower head tube, compact race design, internal cable routing, disc mount
Suspension Fork
Specialized FACT carbon, disc, full monocoque, size-specific taper
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2, 11-speed
Front Derailleur
Shimano Dura-Ace Di2, 11-speed, braze-on
Shift Levers
Shimano 785 Di2, 11-speed
Cassette
Shimano Dura-Ace, 11-speed, 11-28t
Crank
S-Works FACT carbon, OSBB, 52/36, w/ CeramicSpeed ceramic bearings
Chain
Shimano Dura-Ace, 11-speed
Pedals
Nylon, loose ball bearings, w/ reflectors
Wheels
Rims
Roval Rapide CLX 40 SCS Disc, w/ CeramicSpeed ceramic bearings
Tires
S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c
Brakes
Brakes
Shimano 785, hydraulic disc, Ice Tech resin pads w/ fins, 140mm RT-99 Ice Tech rotor
Cockpit
Stem
S-Works SL, alloy, 4-bolt
Handlebar
S-Works SL Carbon, shallow drop, 125mm drop, 75mm reach
Headset
1-1/8"" upper, size-specific lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 25mm carbon spacers
Seat
Saddle
Body Geometry Toupé Pro, carbon rails, 143mm
Seatpost
S-Works FACT carbon, 20mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.37 mm | 1.41 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 501 mm | 523 mm | 540 mm | 561 mm | 588 mm | 609 mm |
| Reach | 383 mm | 383 mm | 384 mm | 392 mm | 399 mm | 405 mm |
| Top Tube Length | 515 mm | 534 mm | 545 mm | 562 mm | 579 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 431 mm | 462 mm | 481 mm | 501 mm | 522 mm | 553 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 404 mm | 407 mm |
| Wheelbase | 967 mm | 967 mm | 975 mm | 983 mm | 1000 mm | 1010 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 752 mm | 772 mm | 792 mm | 823 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

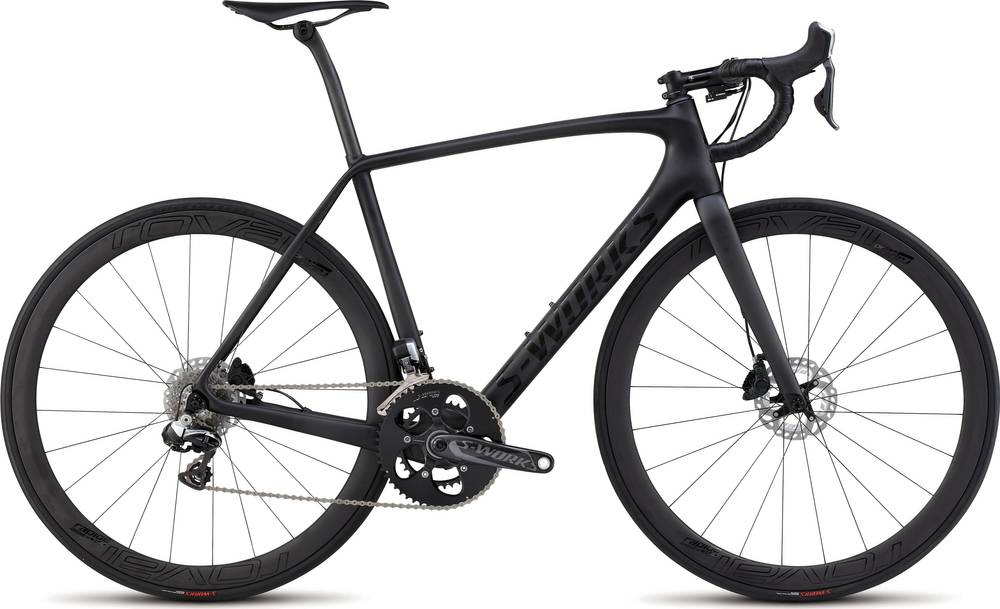

S-Works Tarmac Di2 Disc belongs to the Specialized Tarmac model. 279 bikes variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Specialized S-Works Tarmac Di2 Disc 2015, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Works Tarmac Di2 Disc has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
