Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP, RED 22 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, disc only design, OSBB, full internal, electronic-specific routing, internally integrated seat clamp, QR, 135mm rear spacing
Suspension Fork
S-Works FACT carbon, full monocoque, size-specific taper, disc
Drivetrain
Rear Derailleur
SRAM eTap, 11-speed
Front Derailleur
SRAM eTap, braze-on
Shift Levers
SRAM eTap Hydro
Cassette
SRAM Red 22, 11-speed, 11-28t
Crank
SRAM Red 22, 52/36T
Bottom Bracket
SRAM BB30, 68mm, no spacer
Chain
SRAM Red 22, 11-speed
Pedals
Nylon, 105x78x28mm, loose balls w/ reflectors
Wheels
Rims
Roval CLX 32 Disc, Win Tunnel Engineered, 32mm depth, DT Swiss 240 internals, CeramicSpeed bearings, 24h
Tires
Turbo Cotton, 700x24mm
Brakes
Brakes
SRAM Red disc, 160mm
Cockpit
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Handlebar
S-Works SL carbon Shallow Drop, 125mm drop, 75mm reach
Seat
Saddle
Body Geometry S-Works Toupé, carbon rails, 143mm
Seatpost
S-Works FACT carbon, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.37 mm | 1.41 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272.5 mm | 272.5 mm | 274 mm | 274 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 501 mm | 523 mm | 540 mm | 561 mm | 588 mm | 609 mm |
| Reach | 383 mm | 383 mm | 384 mm | 392 mm | 399 mm | 405 mm |
| Top Tube Length | 515 mm | 534 mm | 545 mm | 562 mm | 579 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 431 mm | 462 mm | 481 mm | 501 mm | 522 mm | 553 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 404 mm | 407 mm |
| Wheelbase | 967 mm | 967 mm | 975 mm | 983 mm | 1000 mm | 1010 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 752 mm | 772 mm | 792 mm | 823 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview

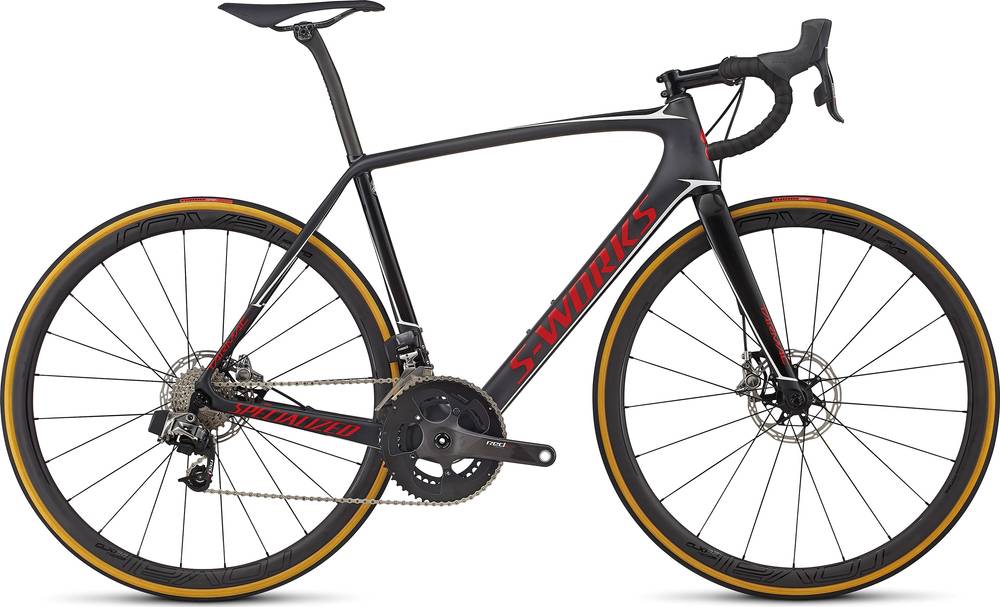

S-Works Tarmac Disc eTap completes the Specialized Tarmac model. Specialized launched 279 bikes of this model so far. Take a sneak peek at all Specialized Tarmac bikes models from 2017, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Tarmac Disc eTap components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Specialized S-Works Tarmac Disc eTap 2017, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Tarmac Disc eTap has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
S-Works Tarmac Disc eTap comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
